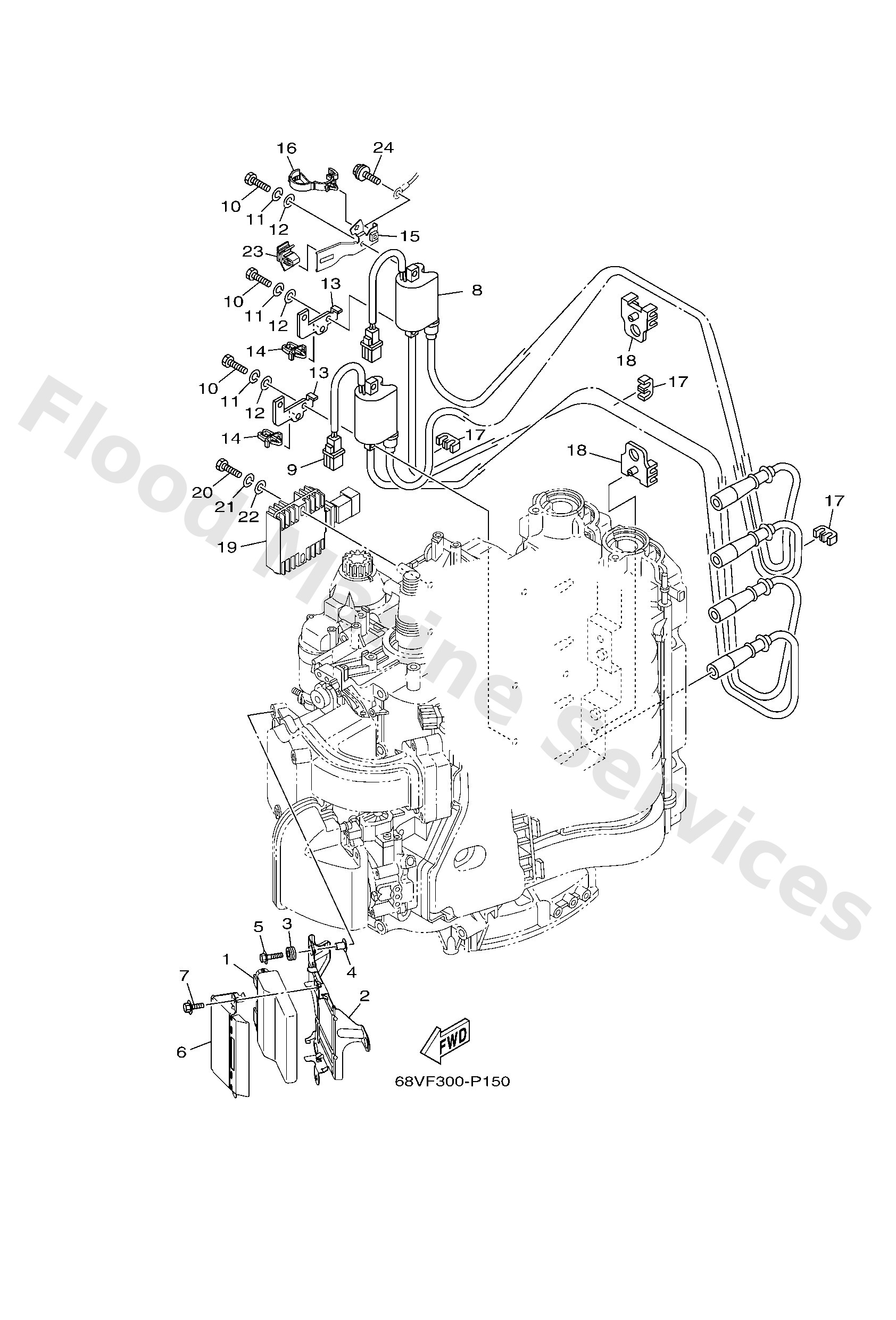

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
68V8591A82
Engine control unit assembly
Loading…

↗
2
68V8253B00
Plate, lock
Loading…

↗
3
60V8551600
Spacer
Loading…

↗
4
9038706289
Collar
Loading…

↗
5
9011906071
Bolt, with washer
Loading…

↗
6
68V8253C00
Spring, plate lock
Loading…

↗
7
9759506512
Bolt, hexagon w/w deep recess
Loading…

↗
8
68V8231000
Ignition coil assembly
Loading…

↗
9
68V8231010
Ignition coil assembly
Loading…

↗
10
9709506025
Bolt
Loading…

↗
11
9299506100
Washer(6a1)
Loading…

↗
12
9299506600
Washer, plain (646)
Loading…

↗
13
68V8238800
Plate
Loading…

↗
14
9046406001
Clamp
Loading…

↗
15
68V8238810
Plate
Loading…

↗
16
9046412183
Clamp(jn2)
Loading…

↗
17
67F8236100
Clamp, cord
Loading…

↗
18
67F8236200
Clamp, cord 2
Loading…

↗
19
68V8196010
Rectifier & regulator assembly
Loading…

↗
23
9046409M47
Clamp(65j)
Loading…

↗
24
9759506616
Bolt, hexagon w/w deep recess
Loading…

↗
