FL115BET (2019)
ELECTRICAL 1

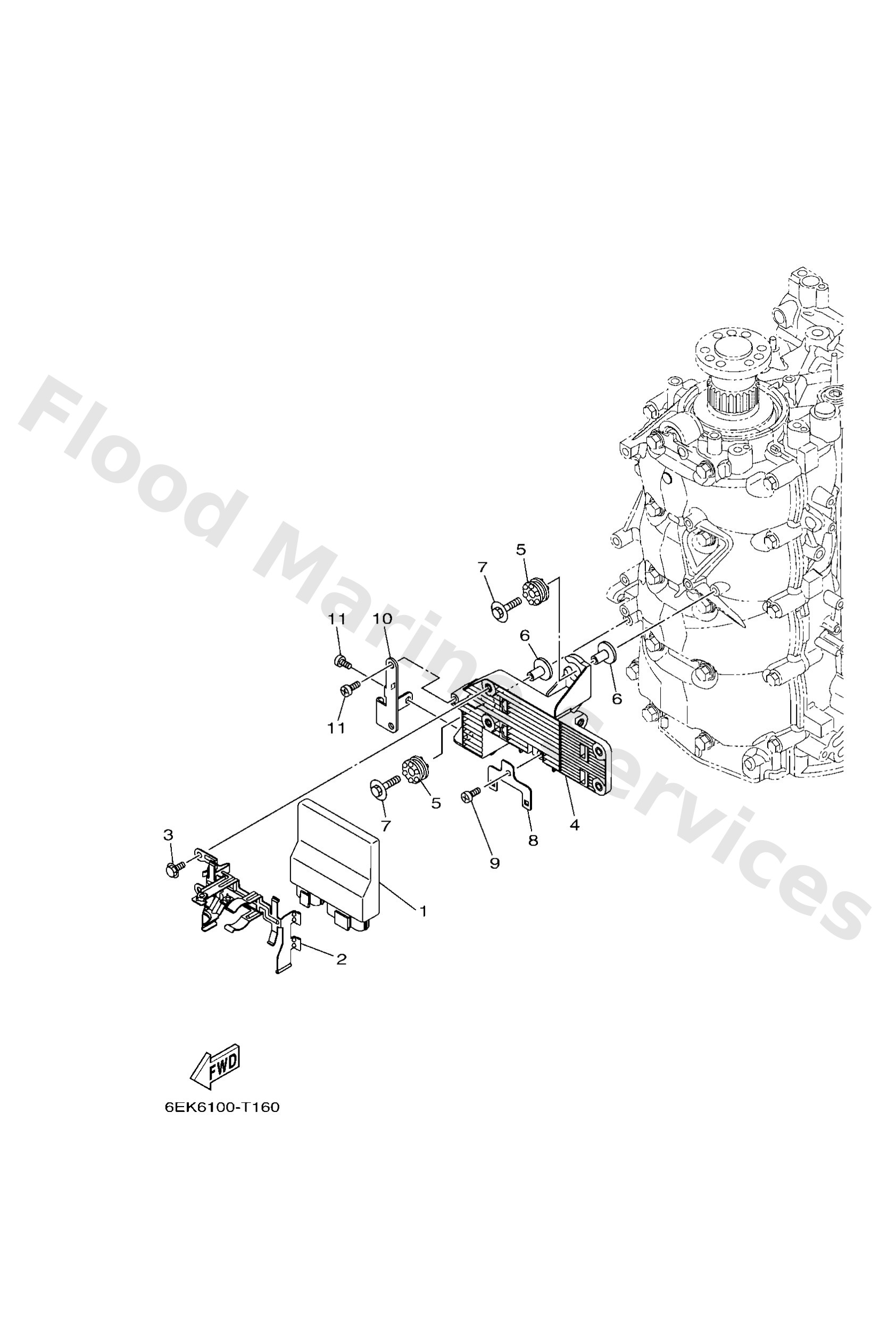

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6EK8591A20
Engine control unit assembly
Loading…
↗
2
6EK8253C00
Spring, plate lock
Loading…
↗
3
95D9506010
Bolt, flange deep recess
Loading…
↗
4
6EK8194801
Bracket
Loading…
↗
5
60V8556400
Grommet
Loading…
↗
6
9038706176
Collar
Loading…
↗
7
68F8511900
Bolt
Loading…
↗
8
6C58257V00
Plate, connector
Loading…
↗
9
9778060620
Screw, tapping(6k8)
Loading…
↗
10
6EK8554800
Holder
Loading…
↗
