FL150AET (2010)
ELECTRICAL 1

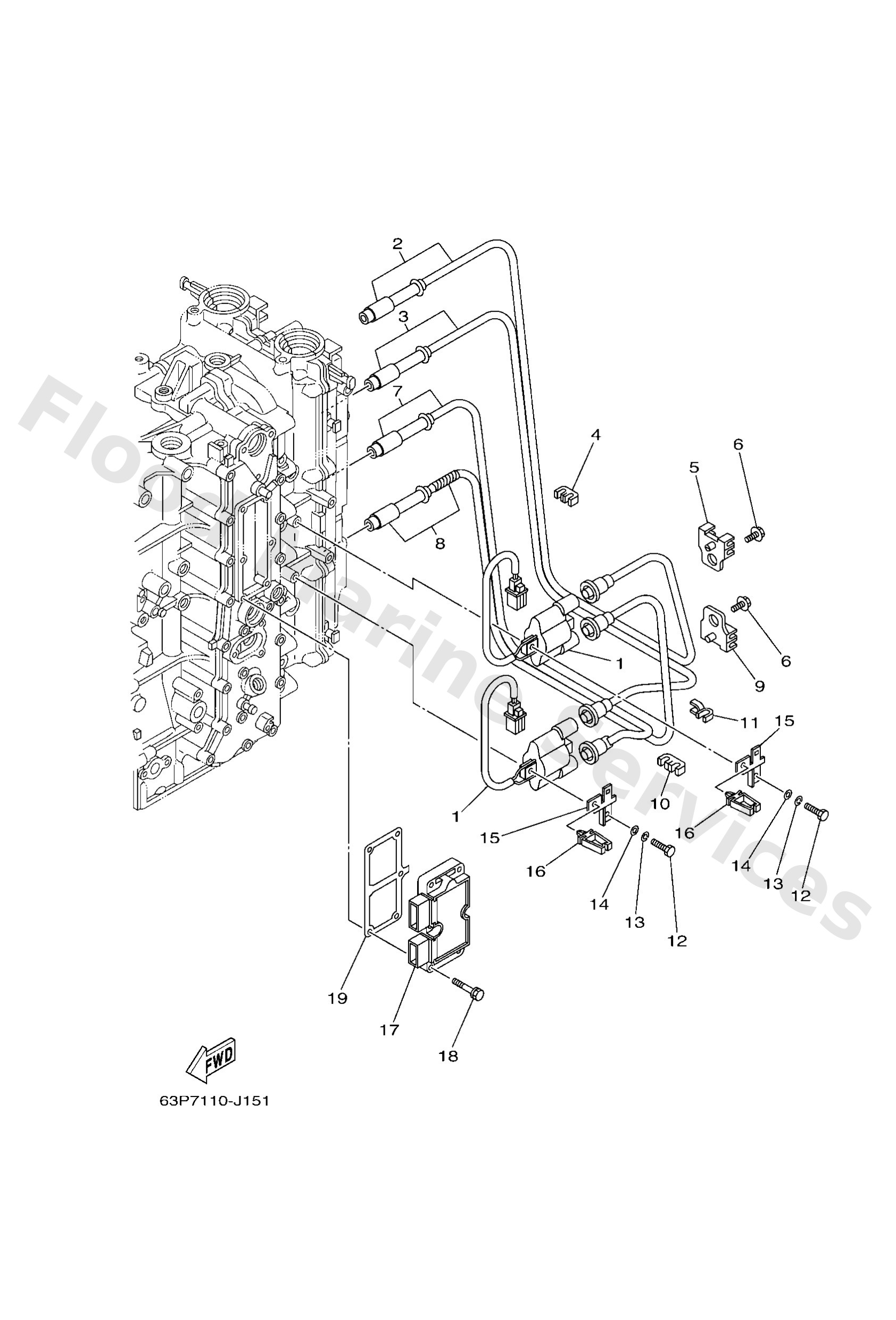

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
63P8231001
Ignition coil assembly
Loading…
↗
2
63PW823A00
Cord, high tension 1
Loading…
↗
3
63PW823B00
Cord, high tension 2
Loading…
↗
4
67F8236100
Clamp, cord
Loading…
↗
5
67F8236200
Clamp, cord 2
Loading…
↗
6
9011906134
Bolt, with washer
Loading…
↗
7
63PW823C00
Cord, high tension 3
Loading…
↗
8
63PW823D00
Cord, high tension 4
Loading…
↗
11
9046407M41
Clamp(62y)
Loading…
↗
12
9709506025
Bolt
Loading…
↗
13
9299506100
Washer(6a1)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
63P8238800
Plate
Loading…
↗
16
9046405141
Clamp(7ly)
Loading…
↗
17
63P8196001
Rectifier & regulator assembly
Loading…
↗
18
9011906MA4
Bolt, with washer
Loading…
↗
19
63P8197500
Plate, rectifier fitting
Loading…
↗
