FL225HET (2018)
ELECTRICAL 1

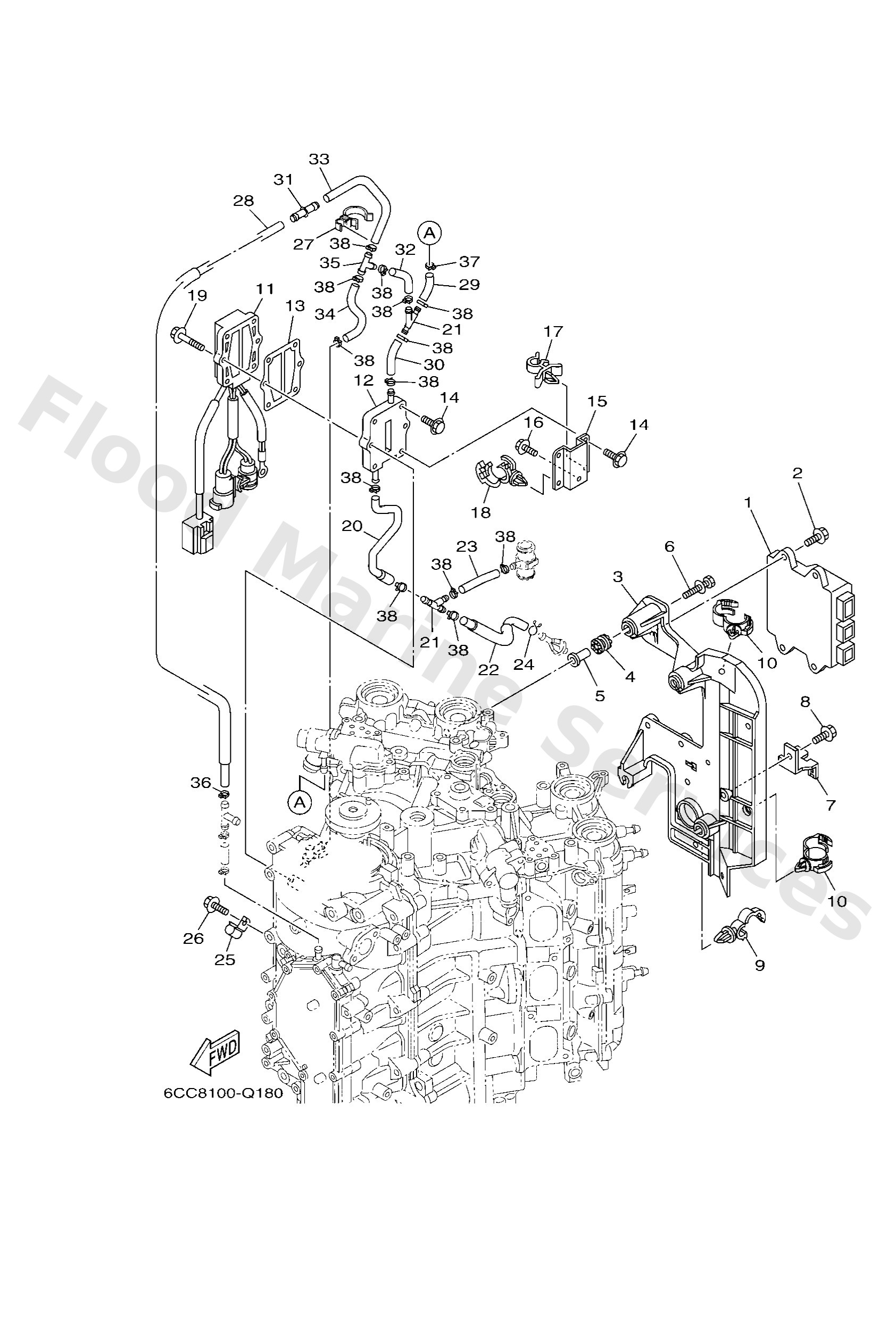

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6HB8591A00
Engine control unit assembly
Loading…
↗
2
9589506020
Bolt, flange(jk3)
Loading…
↗
3
6CB8231601
Bracket, ignition coil
Loading…
↗
4
64J8551600
Spacer
Loading…
↗
5
69M4275801
Collar
Loading…
↗
6
9011906M56
Bolt, with washer
Loading…
↗
7
6BR8184500
Plate
Loading…
↗
8
9589506012
Bolt, flange deep recess
Loading…
↗
9
9046413249
Clamp
Loading…
↗
10
9046420181
Clamp(4ap)
Loading…
↗
11
6CB8196011
Rectifier & regulator assembly
Loading…
↗
12
6CB81972009S
Cover, rectifier
Loading…
↗
13
69J81975A0
Plate, rectifier fitting
Loading…
↗
14
9011906MA4
Bolt, with washer
Loading…
↗
15
6CB8197500
Plate, rectifier fitting
Loading…
↗
16
9589506014
Bolt, flange deep recess
Loading…
↗
17
9046409129
Clamp(3ld)
Loading…
↗
19
9011906MA5
Bolt, with washer
Loading…
↗
20
6CB1248E10
Pipe 9
Loading…
↗
21
6CE2437700
Pipe, joint 2
Loading…
↗
22
6CE1248300
Pipe 3
Loading…
↗
23
90445107A5
Hose (l30)
Loading…
↗
24
9046708M18
Clip
Loading…
↗
25
9046206013
Clamp
Loading…
↗
26
9502306012
Bolt, flange(2uj)
Loading…
↗
27
9046426002
Clamp
Loading…
↗
28
6CE1248110
Pipe 1
Loading…
↗
29
6CE1487200
Pipe 2
Loading…
↗
31
6CE2437601
Pipe, joint 1
Loading…
↗
33
6CB1247700
Pipe 7
Loading…
↗
34
9044509068
Hose (l420)
Loading…
↗
35
6882437800
Pipe, joint
Loading…
↗
36
9046511M10
Clamp
Loading…
↗
