FL300BET (2011)
ELECTRICAL 1

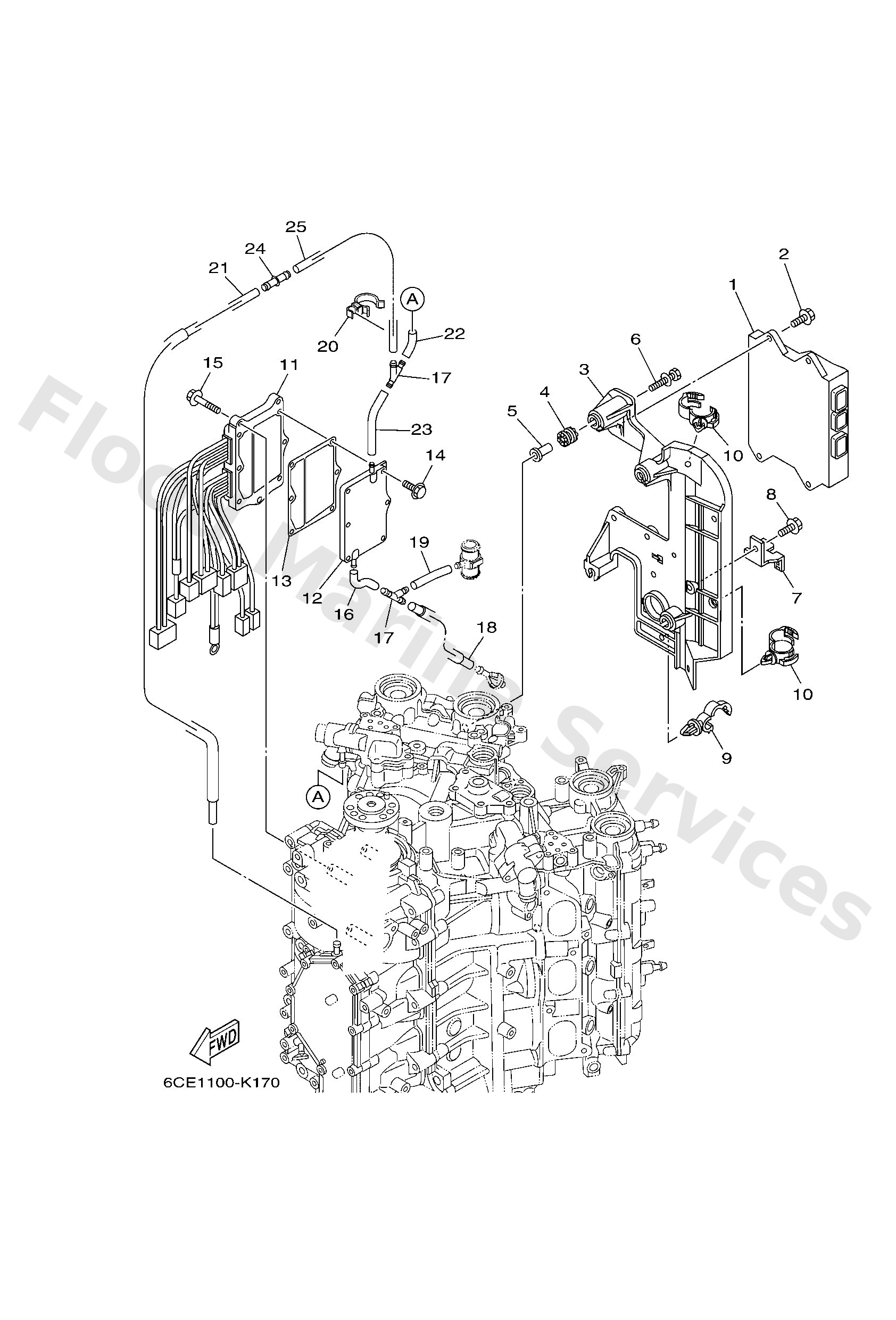

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6CE8591A00
Engine control unit assembly
Loading…
↗
2
9589506020
Bolt, flange(jk3)
Loading…
↗
3
6CB8231601
Bracket, ignition coil
Loading…
↗
4
64J8551600
Spacer
Loading…
↗
5
69M4275800
Collar
Loading…
↗
6
9011906M56
Bolt, with washer
Loading…
↗
7
6BR8184500
Plate
Loading…
↗
8
9589506012
Bolt, flange deep recess
Loading…
↗
9
9046413249
Clamp
Loading…
↗
10
9046420181
Clamp(4ap)
Loading…
↗
11
6CE8196000
Rectifier & regulator assembly
Loading…
↗
12
6CE81972009S
Cover, rectifier
Loading…
↗
13
6CE8197500
Plate, rectifier fitting
Loading…
↗
14
9011906MA3
Bolt, with washer
Loading…
↗
15
9589506025
Bolt, flange deep recess
Loading…
↗
16
6CE1248A00
Pipe 8
Loading…
↗
17
6CE2437700
Pipe, joint 2
Loading…
↗
18
6CE1248300
Pipe 3
Loading…
↗
19
90445107A5
Hose (l30)
Loading…
↗
20
9046426002
Clamp
Loading…
↗
21
6CE1248100
Pipe 1
Loading…
↗
22
6CE1487200
Pipe 2
Loading…
↗
23
6CE1248500
Pipe 5
Loading…
↗
24
6CE2437600
Pipe, joint 1
Loading…
↗
25
6CE1248400
Pipe 4
Loading…
↗
