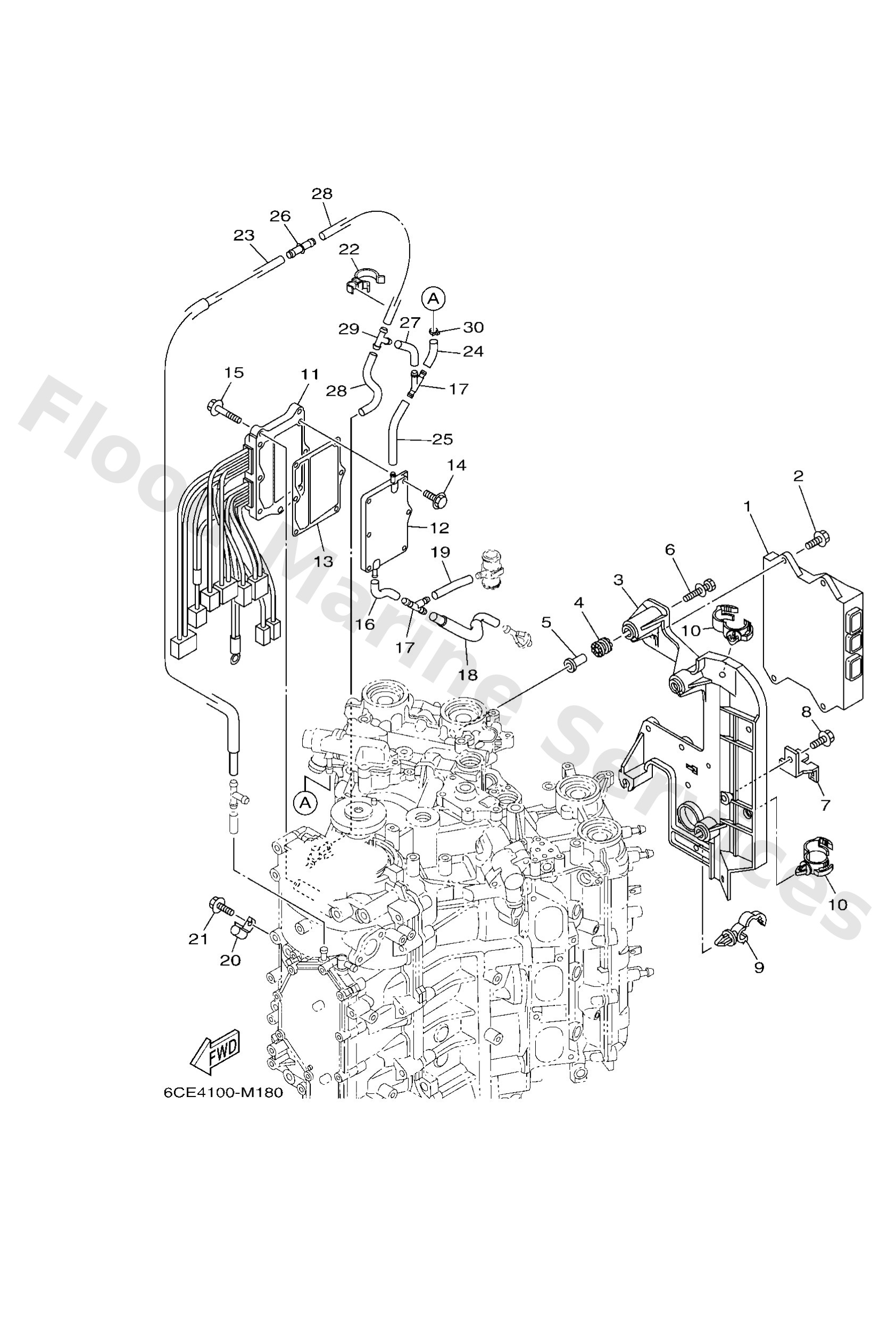

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
6CE8591A04
Engine control unit assembly
Loading…

↗
2
9589506020
Bolt, flange(jk3)
Loading…

↗
3
6CB8231601
Bracket, ignition coil
Loading…

↗
4
64J8551600
Spacer
Loading…

↗
5
69M4275801
Collar
Loading…

↗
6
9011906M56
Bolt, with washer
Loading…

↗
7
6BR8184500
Plate
Loading…

↗
8
9589506012
Bolt, flange deep recess
Loading…

↗
9
9046413249
Clamp
Loading…

↗
10
9046420181
Clamp(4ap)
Loading…

↗
11
6CE8196000
Rectifier & regulator assembly
Loading…

↗
12
6CE81972009S
Cover, rectifier
Loading…

↗
13
6CE8197500
Plate, rectifier fitting
Loading…

↗
14
9011906MA3
Bolt, with washer
Loading…

↗
15
9589506025
Bolt, flange deep recess
Loading…

↗
16
6CE1248A00
Pipe 8
Loading…

↗
17
6CE2437700
Pipe, joint 2
Loading…

↗
18
6CE1248300
Pipe 3
Loading…

↗
19
90445107A5
Hose (l30)
Loading…

↗
20
9046206013
Clamp
Loading…

↗
21
9502306012
Bolt, flange(2uj)
Loading…

↗
22
9046426002
Clamp
Loading…

↗
23
6CE1248110
Pipe 1
Loading…

↗
24
6CE1487200
Pipe 2
Loading…

↗
25
6CE1248500
Pipe 5
Loading…

↗
26
6CE2437600
Pipe, joint 1
Loading…

↗
28
9044509068
Hose (l420)
Loading…

↗
29
6882437800
Pipe, joint
Loading…

↗
30
9046511M10
Clamp
