FL350AET (2017)
ELECTRICAL 1

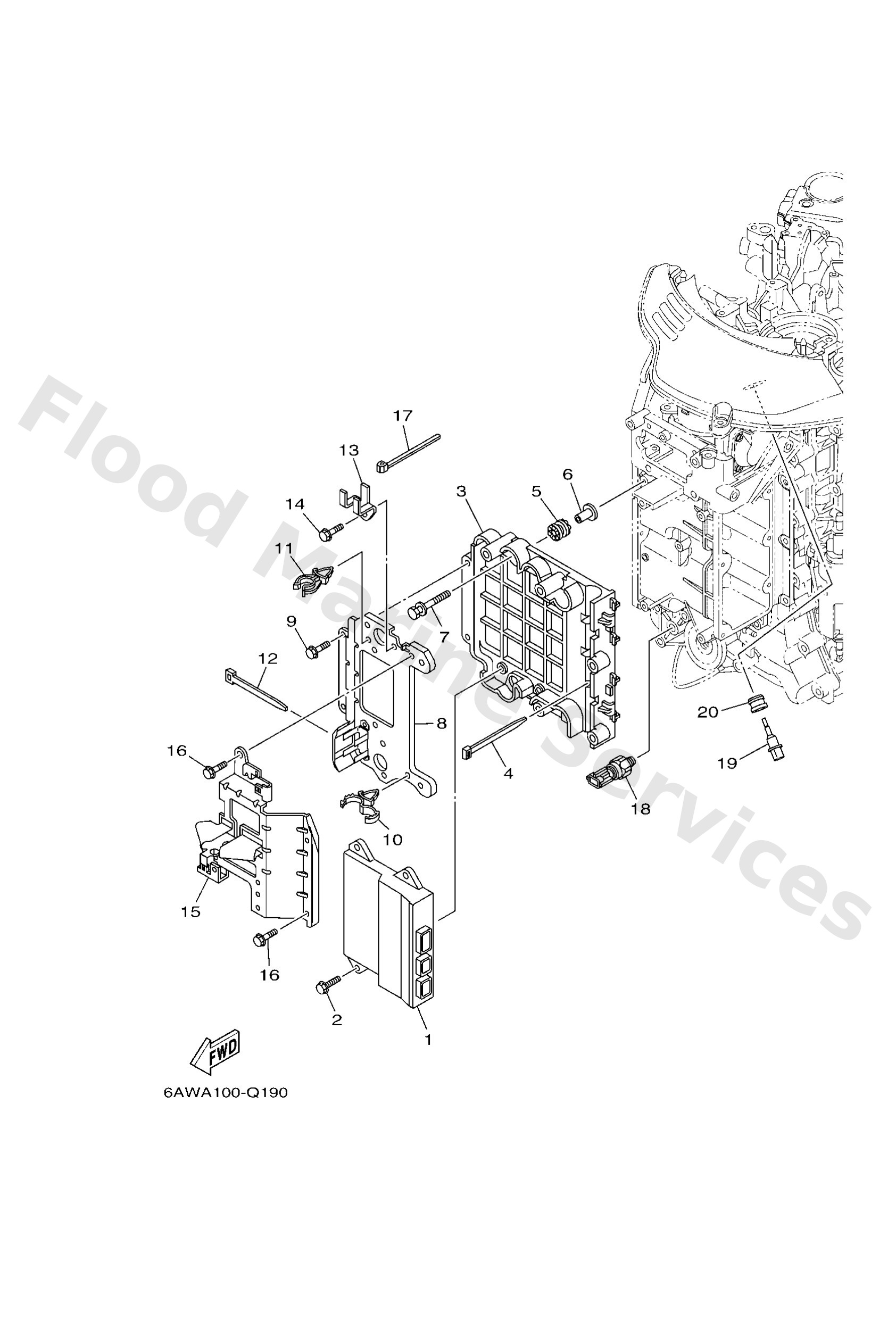

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6AW8591A50
Engine control unit assembly
Loading…
↗
2
9011906M82
Bolt, with washer
Loading…
↗
3
6AW8599100
Bracket, unit
Loading…
↗
4
9046514M66
Clamp
Loading…
↗
5
60V8556400
Grommet
Loading…
↗
6
9038706176
Collar
Loading…
↗
7
68F8511900
Bolt
Loading…
↗
8
6AW8591C00
Case, ecu
Loading…
↗
9
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
10
9046418246
Clamp(4tr)
Loading…
↗
11
9046416240
Clamp
Loading…
↗
12
9046513M24
Band, switch cord
Loading…
↗
13
6AW8254401
Clamp
Loading…
↗
15
6AW8258800
Plate
Loading…
↗
18
6AW8365100
Sender, oil pressure
Loading…
↗
19
63P8588600
Sensor, air temperature
Loading…
↗
20
63P1443500
Grommet
Loading…
↗
