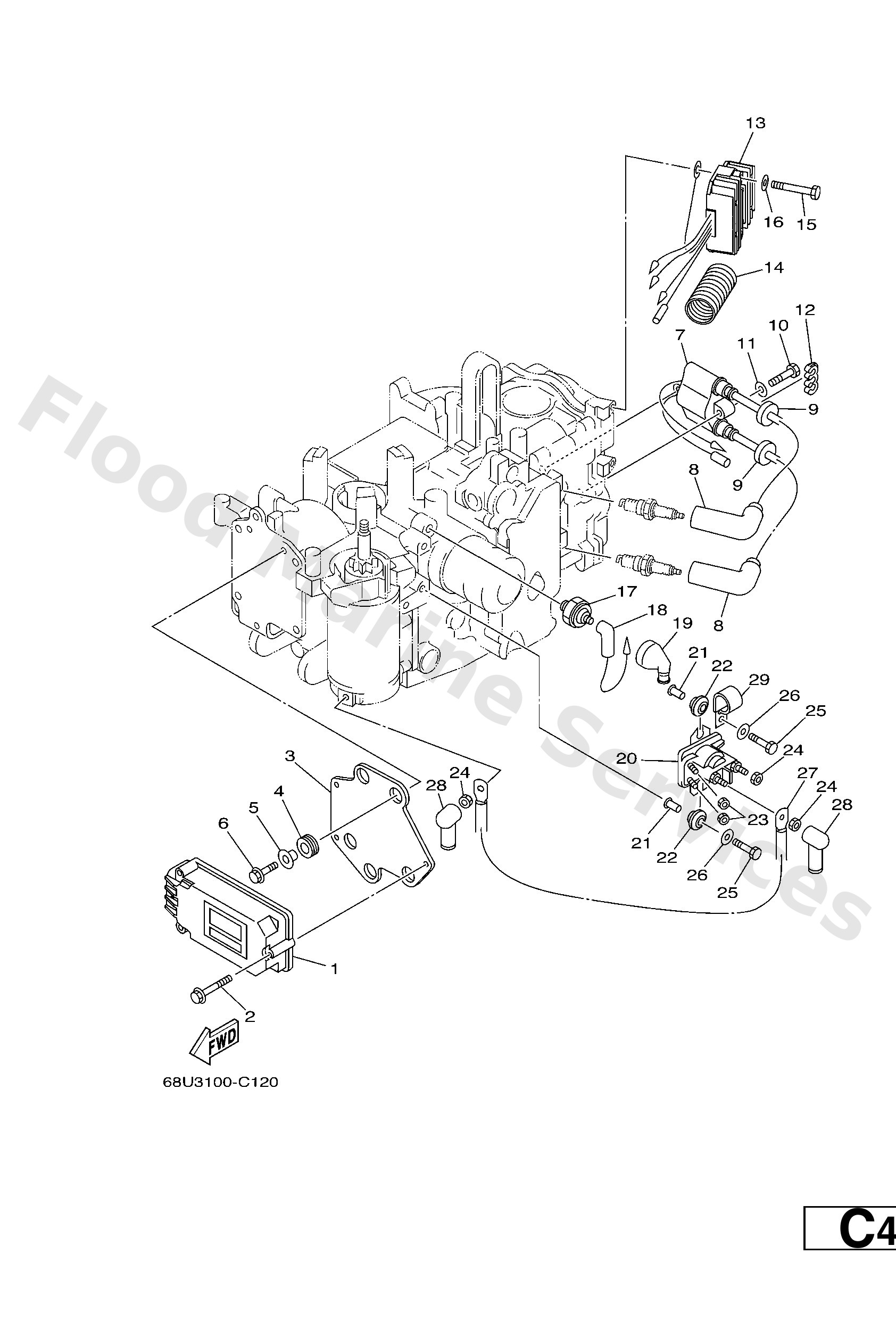

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
65W8554020
C.d.i. unit assembly
Loading…

↗
2
65W8252V00
Screw, special
Loading…

↗
3
65W8554200
Bracket
Loading…

↗
4
65W8554700
Damper
Loading…

↗
5
65W8612920
Collar
Loading…

↗
6
65W8252V10
Screw, special
Loading…

↗
7
65W8557001
Ignition coil assembly
Loading…

↗
8
6G88237030
Plug cap assembly
Loading…

↗
9
9048025161
Grommet(656)
Loading…

↗
10
9709506030
Bolt(jf7)
Loading…

↗
11
9299506600
Washer, plain (646)
Loading…

↗
12
9046407M05
Clamp (6g5)
Loading…

↗
13
65W8196010
Rectifier & regulator assembly
Loading…

↗
14
6K38355700
Tube
Loading…

↗
15
9709506040
Bolt (682)
Loading…

↗
17
65W8250400
Oil pressure switch assembly
Loading…

↗
18
65W8212700
Wire, lead 2
Loading…

↗
19
65W8253200
Cap
Loading…

↗
20
65W8194100
Starter relay assembly
Loading…

↗
21
65W8191C00
Collar
Loading…

↗
22
65W8192200
Grommet
Loading…

↗
23
65W8182A00
Nut
Loading…

↗
24
65W8182B00
Nut, special
Loading…

↗
25
9709506025
Bolt
Loading…

↗
27
65W8211700
Wire, lead
Loading…

↗
28
6G58211910
Cover, lead wire
Loading…

↗
29
65W8339X00
Clamp, cord
Loading…

↗
