FT25FET (2009)
ELECTRICAL 1

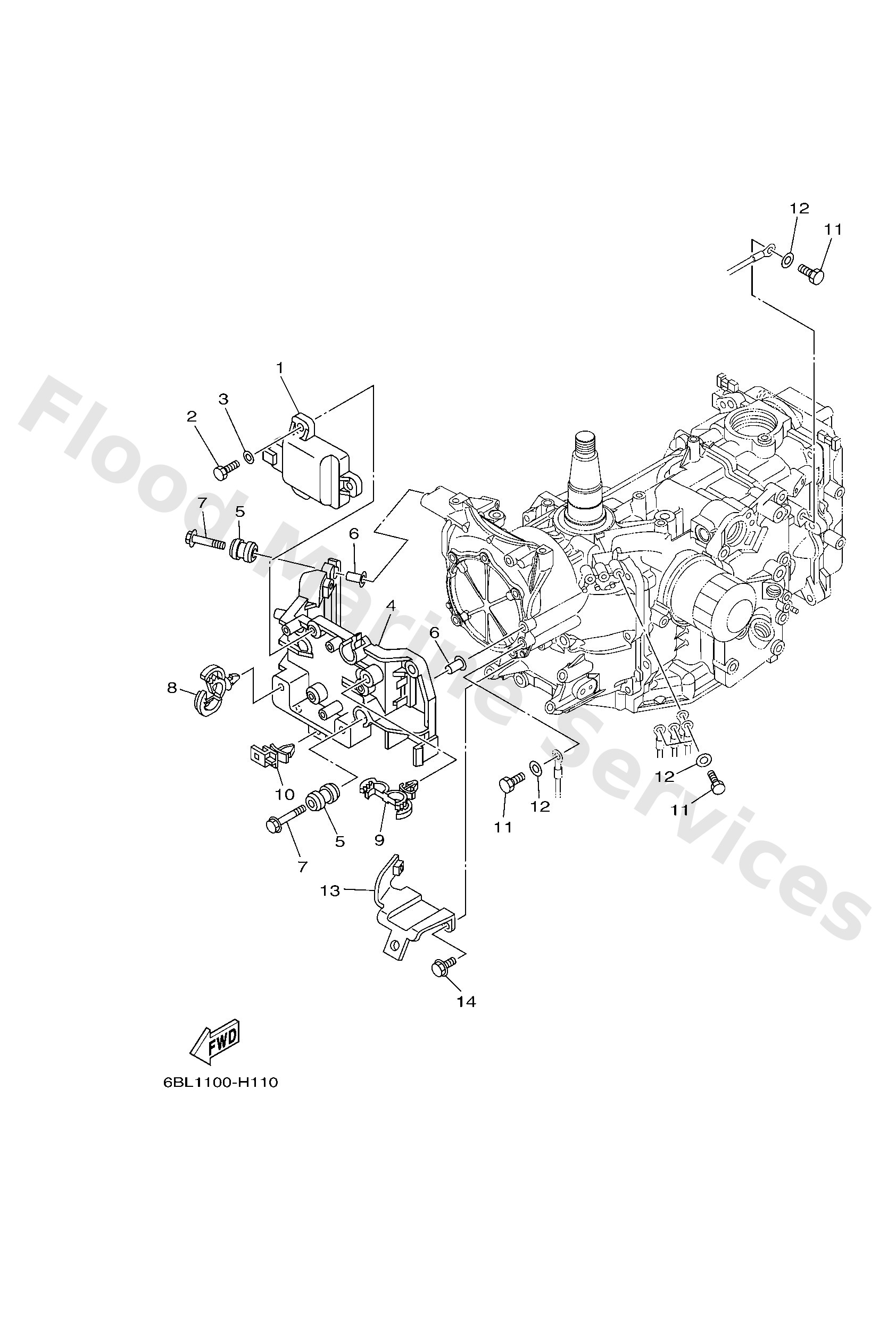

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6BL8554000
C.d.i. unit assembly
Loading…
↗
2
9707506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
6BL8194800
Bracket
Loading…
↗
5
6A08231700
Damper, ignition coil
Loading…
↗
6
9038706119
Collar
Loading…
↗
7
9589506030
Bolt, flange deep recess
Loading…
↗
8
9046412183
Clamp(jn2)
Loading…
↗
9
9046418246
Clamp(4tr)
Loading…
↗
10
9046412002
Clamp
Loading…
↗
11
9709506016
Bolt, hexagon deep recess
Loading…
↗
13
6BL8255400
Stay, neutral switch
Loading…
↗
14
9589506014
Bolt, flange deep recess
Loading…
↗
