Yamaha Outboard Parts - ELECTRICAL 1 - FT25FET (2012) | Flood Marine

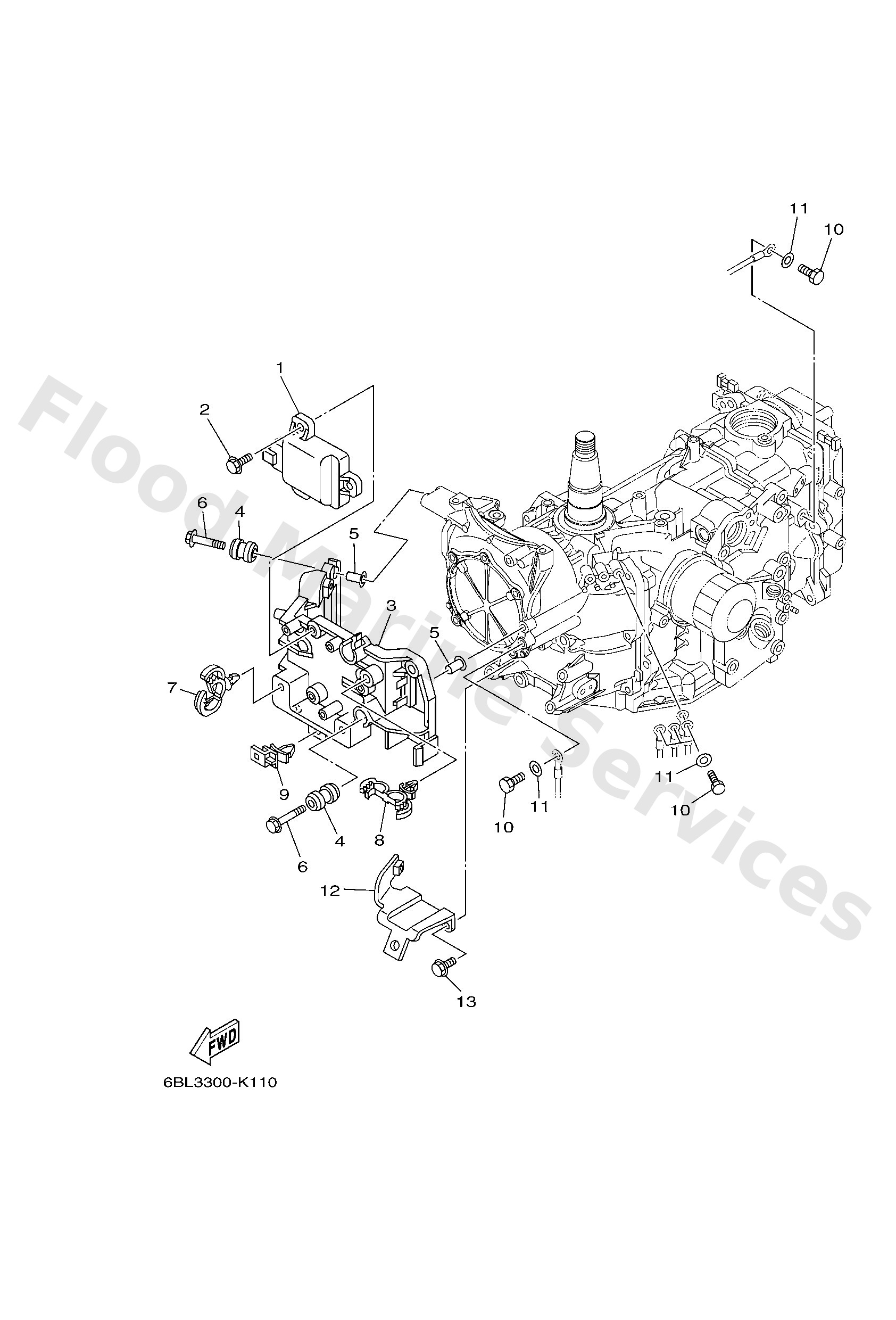

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
6BL8554000
C.d.i. unit assembly
Loading…

↗
2
9757506520
Bolt, hexagon w/w deep recess
Loading…

↗
3
6BL8194800
Bracket
Loading…

↗
4
6A08231700
Damper, ignition coil
Loading…

↗
5
9038706119
Collar
Loading…

↗
6
9589506030
Bolt, flange deep recess
Loading…

↗
7
9046412183
Clamp(jn2)
Loading…

↗
8
9046418246
Clamp(4tr)
Loading…

↗
9
9046412002
Clamp
Loading…

↗
10
9709506016
Bolt, hexagon deep recess
Loading…

↗
11
9299506600
Washer, plain (646)
Loading…

↗
12
6BL8255400
Stay, neutral switch
Loading…

↗
13
9589506014
Bolt, flange deep recess
Loading…

↗
