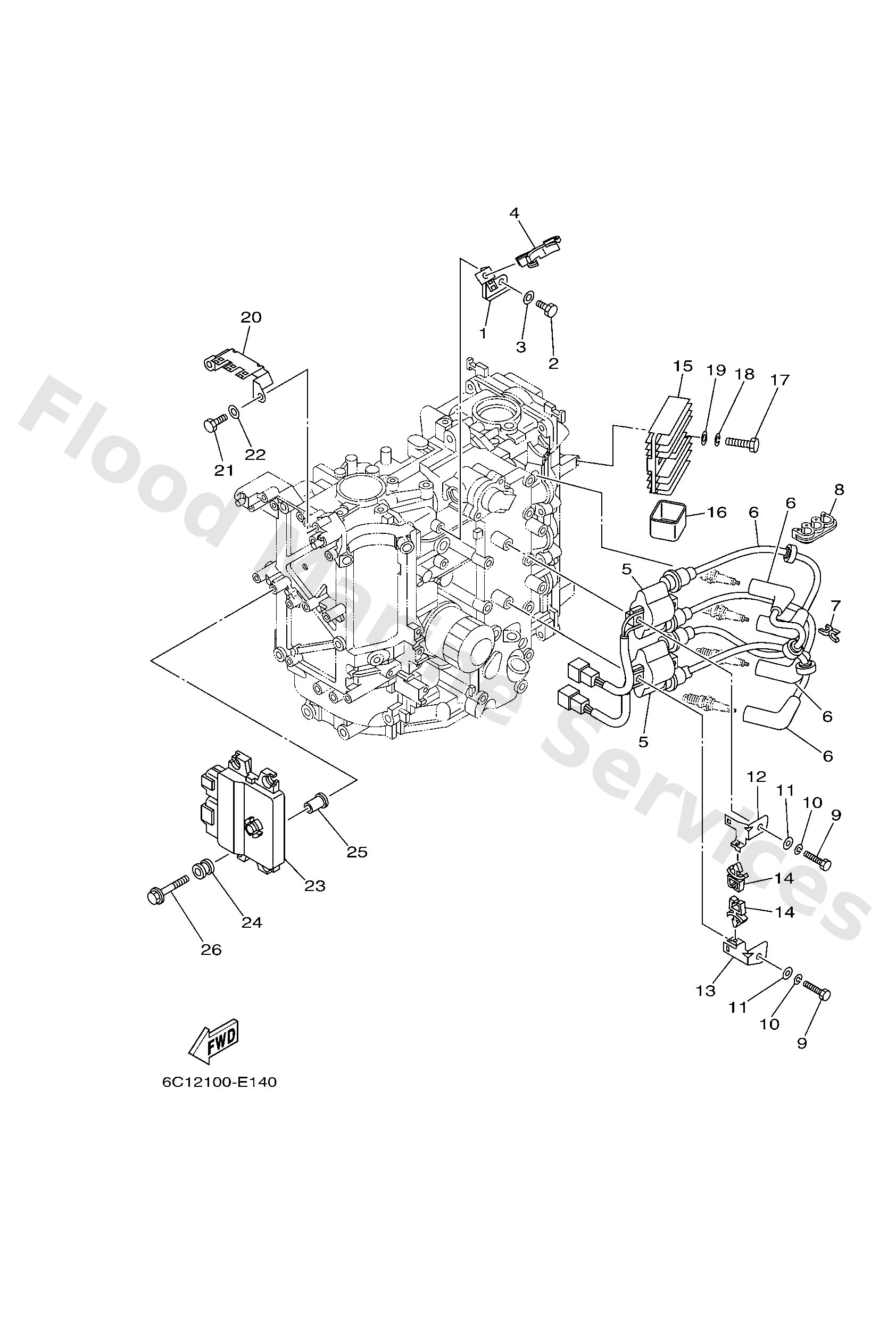

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
6C58552500
Plate
Loading…

↗
2
9709506014
Bolt(gj3)
Loading…

↗
3
9299506600
Washer, plain (646)
Loading…

↗
4
9046418246
Clamp(4tr)
Loading…

↗
5
63P8231001
Ignition coil assembly
Loading…

↗
6
6C58234001
High tension cord assembly 1
Loading…

↗
7
9046407M41
Clamp(62y)
Loading…

↗
8
9046407M05
Clamp (6g5)
Loading…

↗
9
9709506030
Bolt(jf7)
Loading…

↗
10
9299506100
Washer(6a1)
Loading…

↗
12
6C58231601
Bracket, ignition coil
Loading…

↗
13
6C58231611
Bracket, ignition coil
Loading…

↗
14
9046406001
Clamp
Loading…

↗
15
6D38196000
Rectifier & regulator assembly
Loading…

↗
16
6C58196100
Cover
Loading…

↗
17
9709506025
Bolt
Loading…

↗
20
6C58217100
Stay, fuse box
Loading…

↗
23
6C18591A21
Engine control unit assembly
Loading…

↗
23
6C58591A21
Engine control unit assembly
Loading…

↗
24
6C58231700
Damper, ignition coil
Loading…

↗
25
9038706119
Collar
Loading…

↗
26
9011906M59
Bolt, with washer
Loading…

↗
