FT50GET (2011)
ELECTRICAL 1

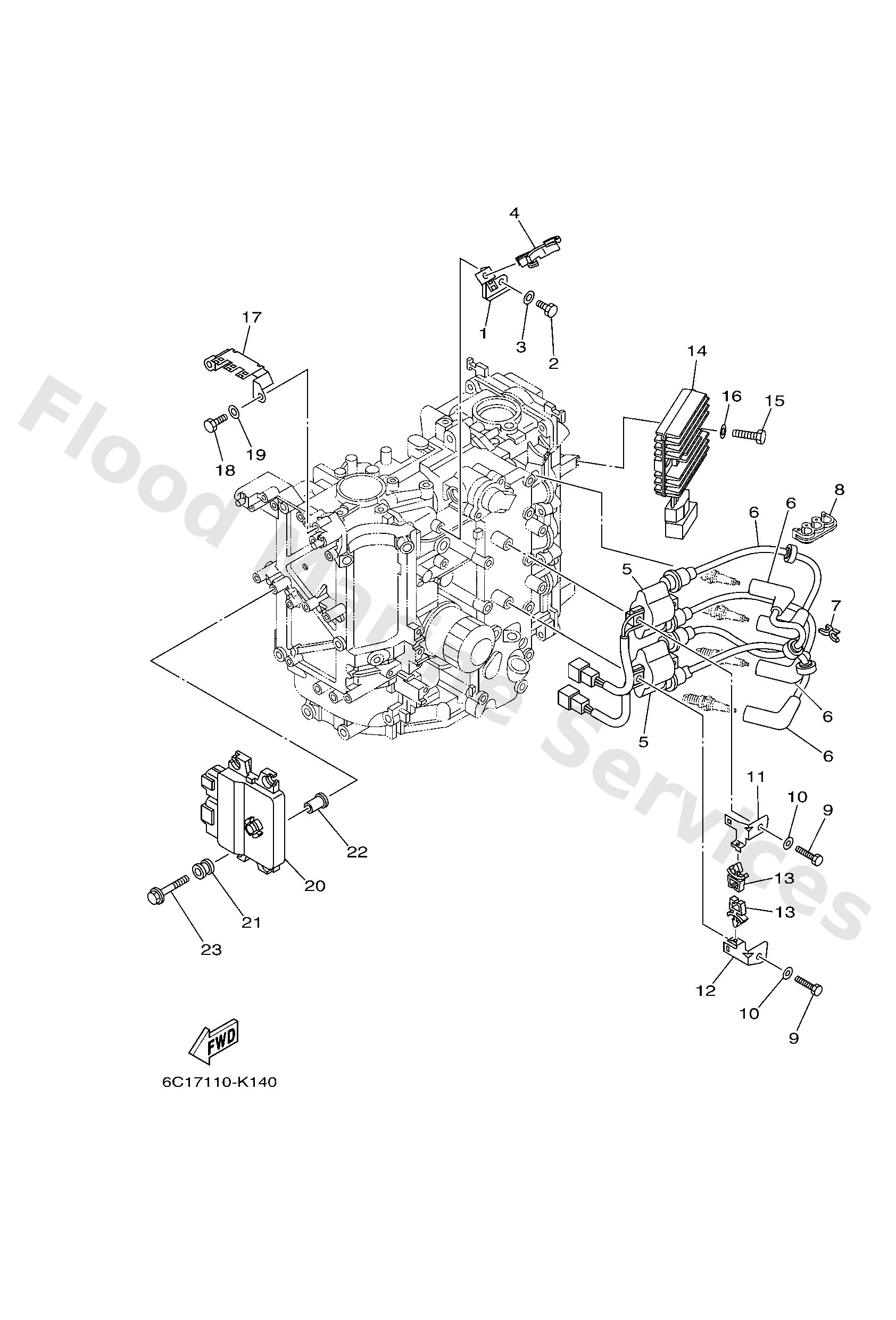

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6C58552500
Plate
Loading…
↗
2
9709506014
Bolt(gj3)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
9046418246
Clamp(4tr)
Loading…
↗
5
63P8231001
Ignition coil assembly
Loading…
↗
6
6C58234001
High tension cord assembly 1
Loading…
↗
7
9046407M41
Clamp(62y)
Loading…
↗
8
9046407M05
Clamp (6g5)
Loading…
↗
9
9709506025
Bolt
Loading…
↗
11
6C58231601
Bracket, ignition coil
Loading…
↗
12
6C58231611
Bracket, ignition coil
Loading…
↗
13
9046406001
Clamp
Loading…
↗
14
68V8196010
Rectifier & regulator assembly
Loading…
↗
17
6C58217100
Stay, fuse box
Loading…
↗
20
6C18591A22
Engine control unit assembly
Loading…
↗
20
6C58591A22
Engine control unit assembly
Loading…
↗
21
6C58231700
Damper, ignition coil
Loading…
↗
22
9038706119
Collar
Loading…
↗
23
9011906M59
Bolt, with washer
Loading…
↗
