FT50PET (2025)
ELECTRICAL 1

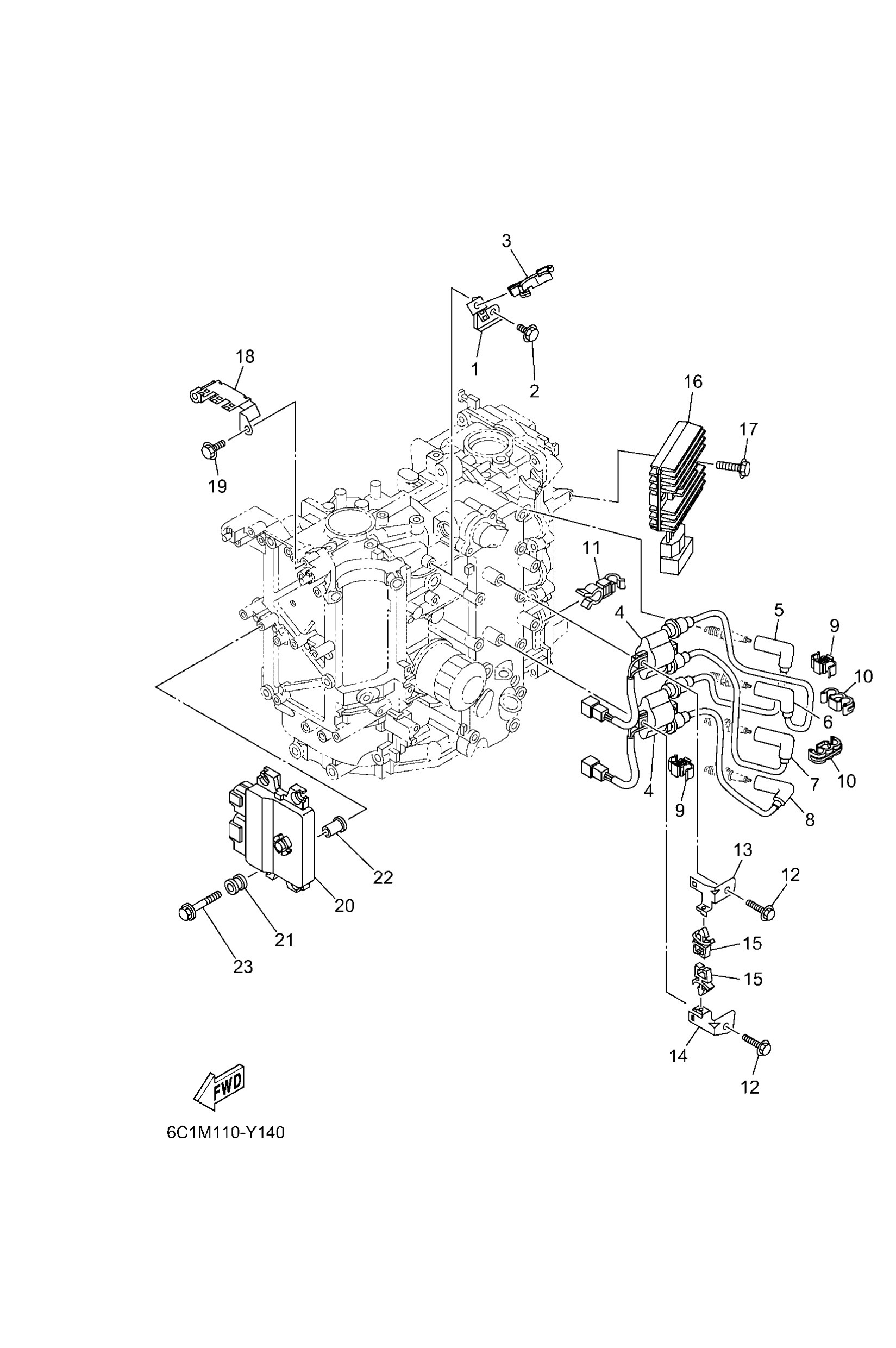

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6C58552500
Plate
Loading…
↗
2
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
3
9046418246
Clamp(4tr)
Loading…
↗
4
63P8231001
Ignition coil assembly
Loading…
↗
5
6C58234010
High tension cord assembly 1
Loading…
↗
6
6C58234020
High tension cord assembly 2
Loading…
↗
7
6C58234030
High tension cord assembly 3
Loading…
↗
8
6C58234040
High tension cord assembly 4
Loading…
↗
9
9046407019
Clamp
Loading…
↗
10
9046407020
Clamp
Loading…
↗
11
9046413013
Clamp
Loading…
↗
12
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
13
6C58231601
Bracket, ignition coil
Loading…
↗
14
6C58231611
Bracket, ignition coil
Loading…
↗
15
9046406001
Clamp
Loading…
↗
16
68V8196010
Rectifier & regulator assembly
Loading…
↗
18
6C58217100
Stay, fuse box
Loading…
↗
20
6NK8591A00
Engine Control Unit assembly
Loading…
↗
21
6C58231701
Damper, ignition coil
Loading…
↗
22
9038706119
Collar
Loading…
↗
23
9011906289
Bolt, with washer
Loading…
↗
