Yamaha Outboard Parts - ELECTRICAL 1 - FT60BET (2003) | Flood Marine

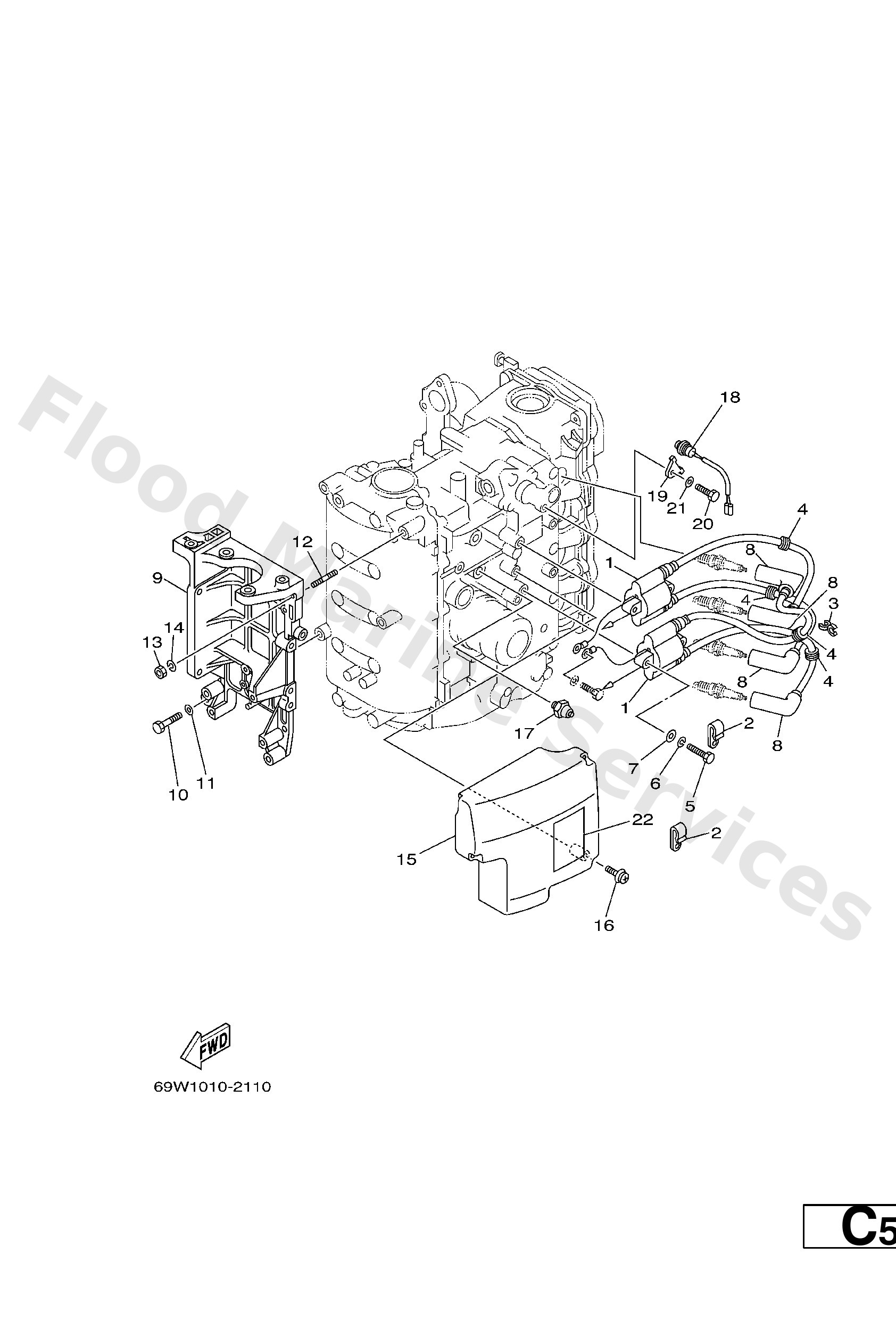

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
62Y−85570−00
Ignition coil assembly
Loading…

↗
2
90465−06M90
Clamp
Loading…

↗
3
90464−07M41
Clamp(62y)
Loading…

↗
4
90480−25161
Grommet(656)
Loading…

↗
5
97095−06030
Bolt(jf7)
Loading…

↗
6
92995−06100
Washer(6a1)
Loading…

↗
7
92995−06600
Washer, plain (646)
Loading…

↗
8
6G8−82370−30
Plug cap assembly
Loading…

↗
9
62Y−81822−01−94
Bracket, starting motor
Loading…

↗
10
97095−08035
Bolt(70w)
Loading…

↗
11
92995−08600
Washer, plain (663)
Loading…

↗
12
90116−08M14
Bolt, stud (6e5)
Loading…

↗
13
95380−08600
Nut (661)
Loading…

↗
14
92990−08100
Ybs67-8 washer, spring
Loading…

↗
15
62Y−85599−00
Cover
Loading…

↗
16
90159−06M08
Screw, with washer(6k7)
Loading…

↗
17
64J−82504−00
Oil pressure switch assembly
Loading…

↗
18
62Y−82560−01
Thermo switch assembly
Loading…

↗
19
6E9−82588−00
Plate
Loading…

↗
20
97095−06012
Bolt(gh1)
Loading…

↗
22
62Y−83626−00
Mark. 6
Loading…

↗
