FT60BET (2006)
ELECTRICAL 1

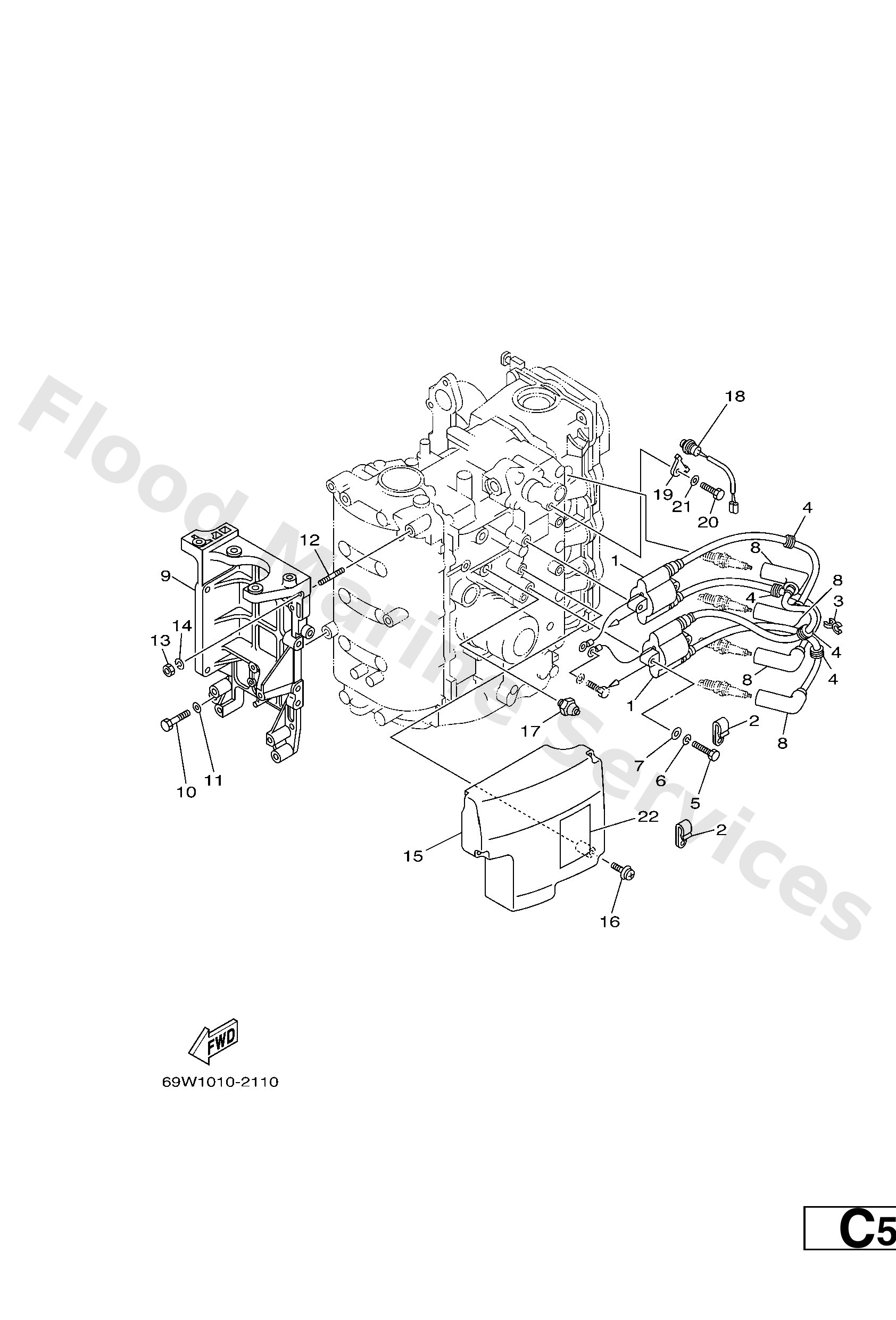

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
62Y8557000
Ignition coil assembly
Loading…
↗
2
9046506M90
Clamp
Loading…
↗
3
9046407M41
Clamp(62y)
Loading…
↗
4
9048025161
Grommet(656)
Loading…
↗
5
9709506030
Bolt(jf7)
Loading…
↗
6
9299506100
Washer(6a1)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
6G88237030
Plug cap assembly
Loading…
↗
9
62Y818220194
Bracket, starting motor
Loading…
↗
10
9709508035
Bolt(70w)
Loading…
↗
11
9299508600
Washer, plain (663)
Loading…
↗
12
9011608M14
Bolt, stud (6e5)
Loading…
↗
13
9538008600
Nut (661)
Loading…
↗
14
9299008100
Ybs67-8 washer, spring
Loading…
↗
15
62Y8559900
Cover
Loading…
↗
16
9015906M08
Screw, with washer(6k7)
Loading…
↗
17
64J8250400
Oil pressure switch assembly
Loading…
↗
18
62Y8256001
Thermo switch assembly
Loading…
↗
19
6E98258800
Plate
Loading…
↗
20
9709506012
Bolt(gh1)
Loading…
↗
22
62Y8362600
Mark. 6
Loading…
↗
