FT8DMH (2002)
ELECTRICAL 1

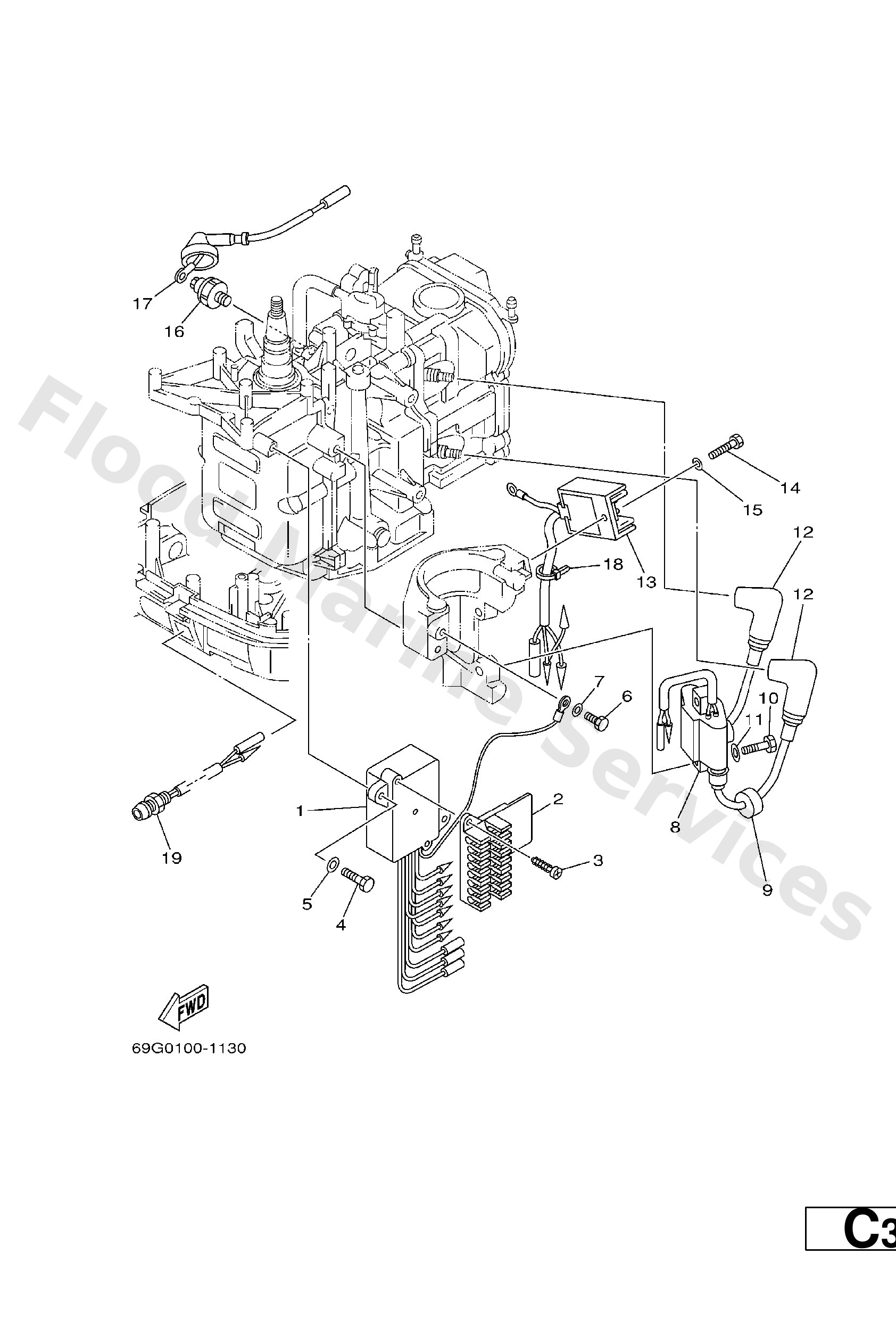

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
68T−85540−00
C.d.i. unit assembly
Loading…
↗
2
68T−82522−00
Clamp, coupler
Loading…
↗
3
97780−40512
Screw, pan head tapping
Loading…
↗
4
97095−06020
Bolt(7u8)
Loading…
↗
5
92995−06600
Washer, plain (646)
Loading…
↗
6
97095−06012
Bolt(gh1)
Loading…
↗
8
680−85570−00
Ignition coil assembly
Loading…
↗
9
90480−25161
Grommet(656)
Loading…
↗
10
97095−06025
Bolt
Loading…
↗
12
6E3−82370−21
Plug cap assembly
Loading…
↗
13
68T−81960−00
Rectifier & regulator assembly
Loading…
↗
16
67F−82504−00
Oil pressure switch assembly
Loading…
↗
17
68T−82127−10
Wire, lead 2
Loading…
↗
18
90465−11M10
Clamp
Loading…
↗
19
68T−85410−00
Emergency signal light assembly
Loading…
↗
