FT8GMH (2016)
ELECTRICAL 1

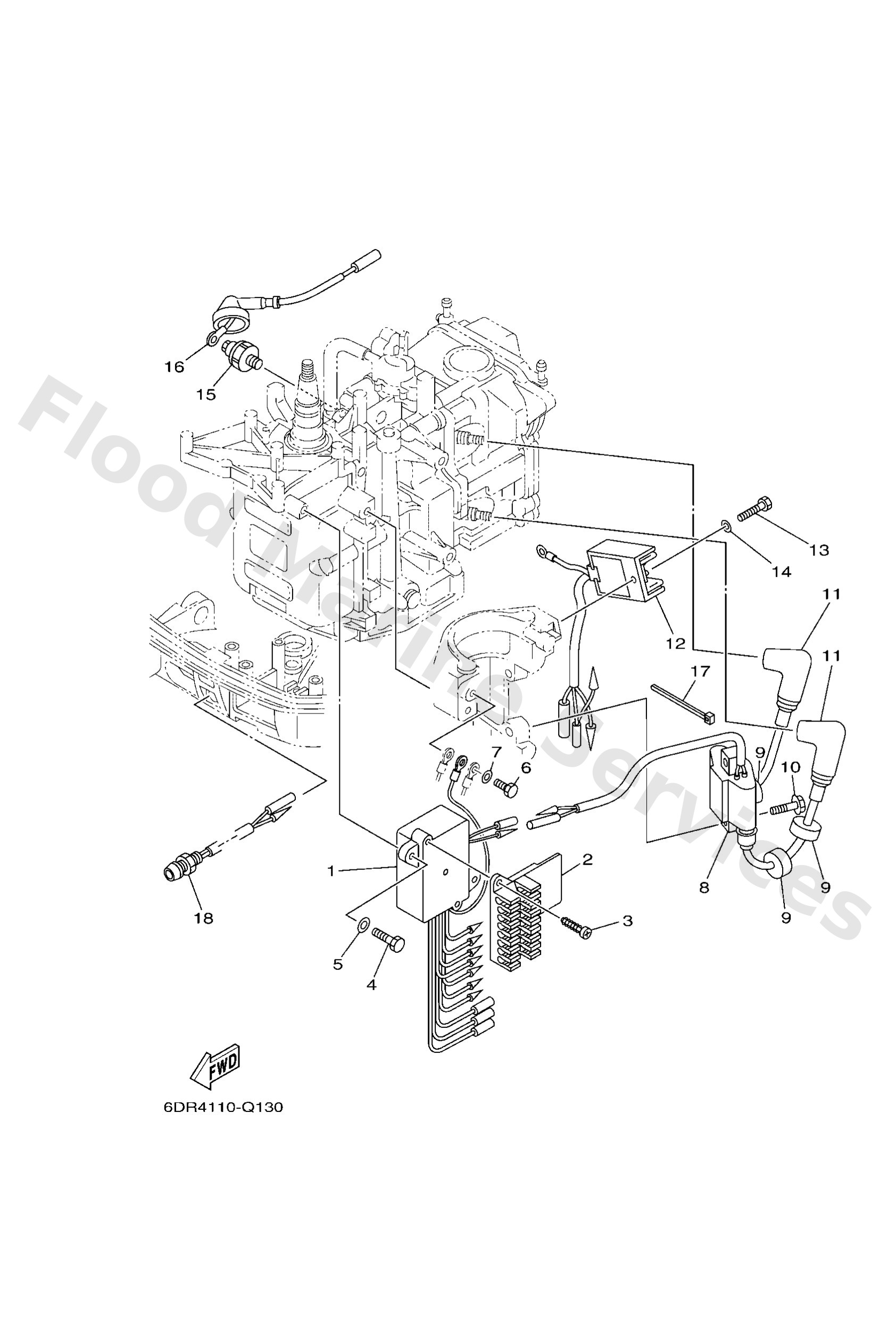

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
68T8554000
C.d.i. unit assembly
Loading…
↗
2
68T8252200
Clamp, coupler
Loading…
↗
3
9778040512
Screw, pan head tapping
Loading…
↗
4
9709506020
Bolt(7u8)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
9709506012
Bolt(gh1)
Loading…
↗
8
6808557002
Ignition coil assembly
Loading…
↗
9
9048025003
Grommet
Loading…
↗
10
9011906MA3
Bolt, with washer
Loading…
↗
11
6E38237021
Plug cap assembly
Loading…
↗
12
68T8196000
Rectifier & regulator assembly
Loading…
↗
15
67F8250400
Oil pressure switch assembly
Loading…
↗
16
68T8212710
Wire, lead 2
Loading…
↗
17
9046511M10
Clamp
Loading…
↗
18
68T8541000
Emergency signal light assembly
Loading…
↗
