FT9.9DMH (2002)
ELECTRICAL 1

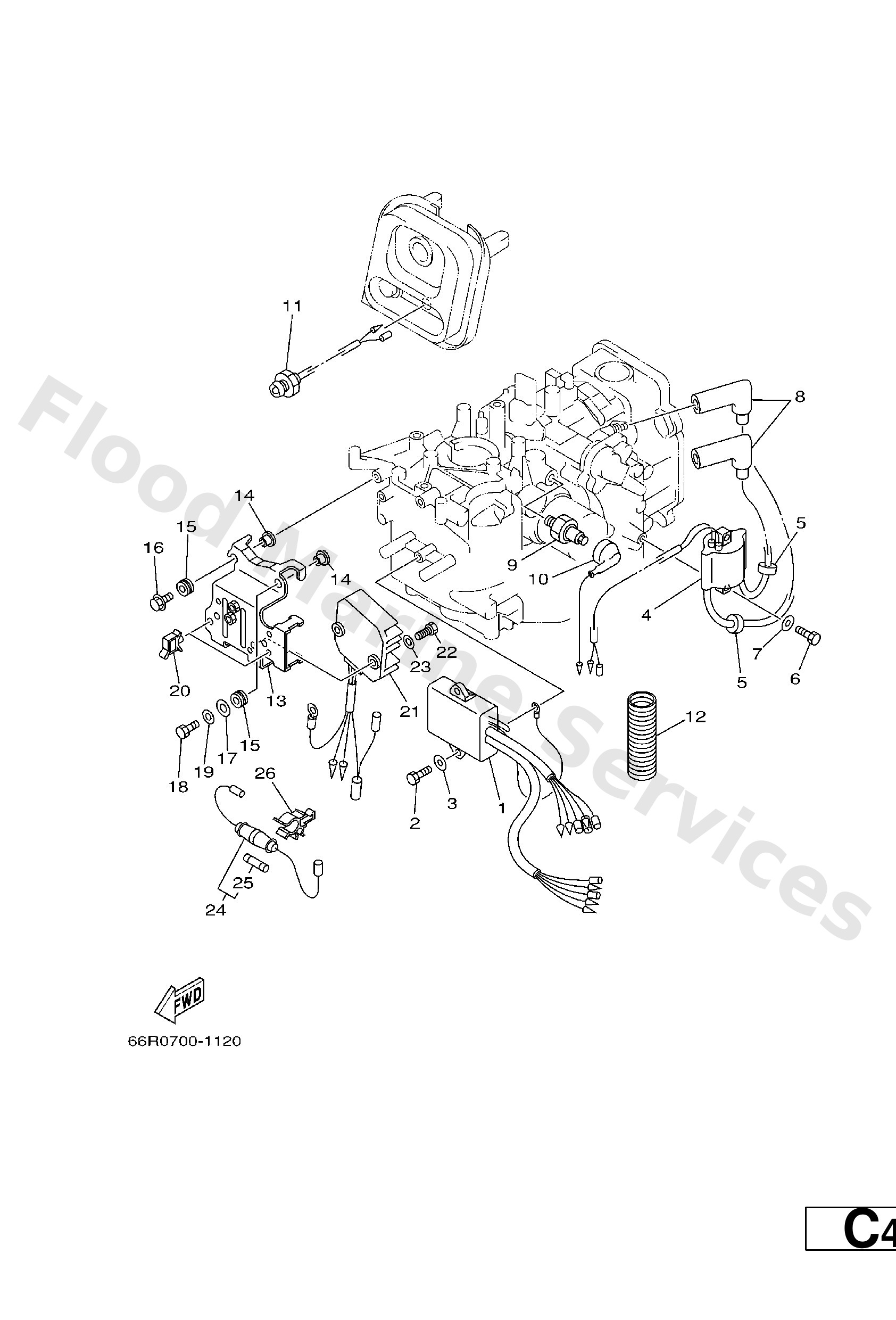

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
66M−85540−01
C.d.i. Unit assembly
Loading…
↗
2
97095−06020
Bolt(7u8)
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
66M−85570−00
Ignition coil assembly
Loading…
↗
5
90480−25161
Grommet(656)
Loading…
↗
8
6G8−82370−30
Plug cap assembly
Loading…
↗
9
62Y−82504−10
Oil pressure switch assembly
Loading…
↗
10
66M−82127−10
Wire, lead 2
Loading…
↗
11
65W−85410−01
Emergency signal light assembly
Loading…
↗
12
6H1−83557−00
Tube
Loading…
↗
13
66M−85542−10
Bracket
Loading…
↗
14
90387−06M05
Collar(6h4)
Loading…
↗
15
90480−13M24
Grommet (6e9)
Loading…
↗
16
95895−06020
Bolt, flange(jk3)
Loading…
↗
17
90201−06M05
Washer, plate(6e3)
Loading…
↗
18
97095−06025
Bolt
Loading…
↗
20
90464−09M13
Clamp (6h1)
Loading…
↗
21
6G8−81960−A1
Rectifier & regulator assembly
Loading…
↗
22
97095−06016
Bolt, hexagon deep recess
Loading…
↗
24
6G8−82150−00
Fuse holder assembly
Loading…
↗
25
663−82151−00
Fuse
Loading…
↗
26
6G5−82152−00
Holder, fuse
Loading…
↗
