FT9.9GE (2009)
ELECTRICAL 1

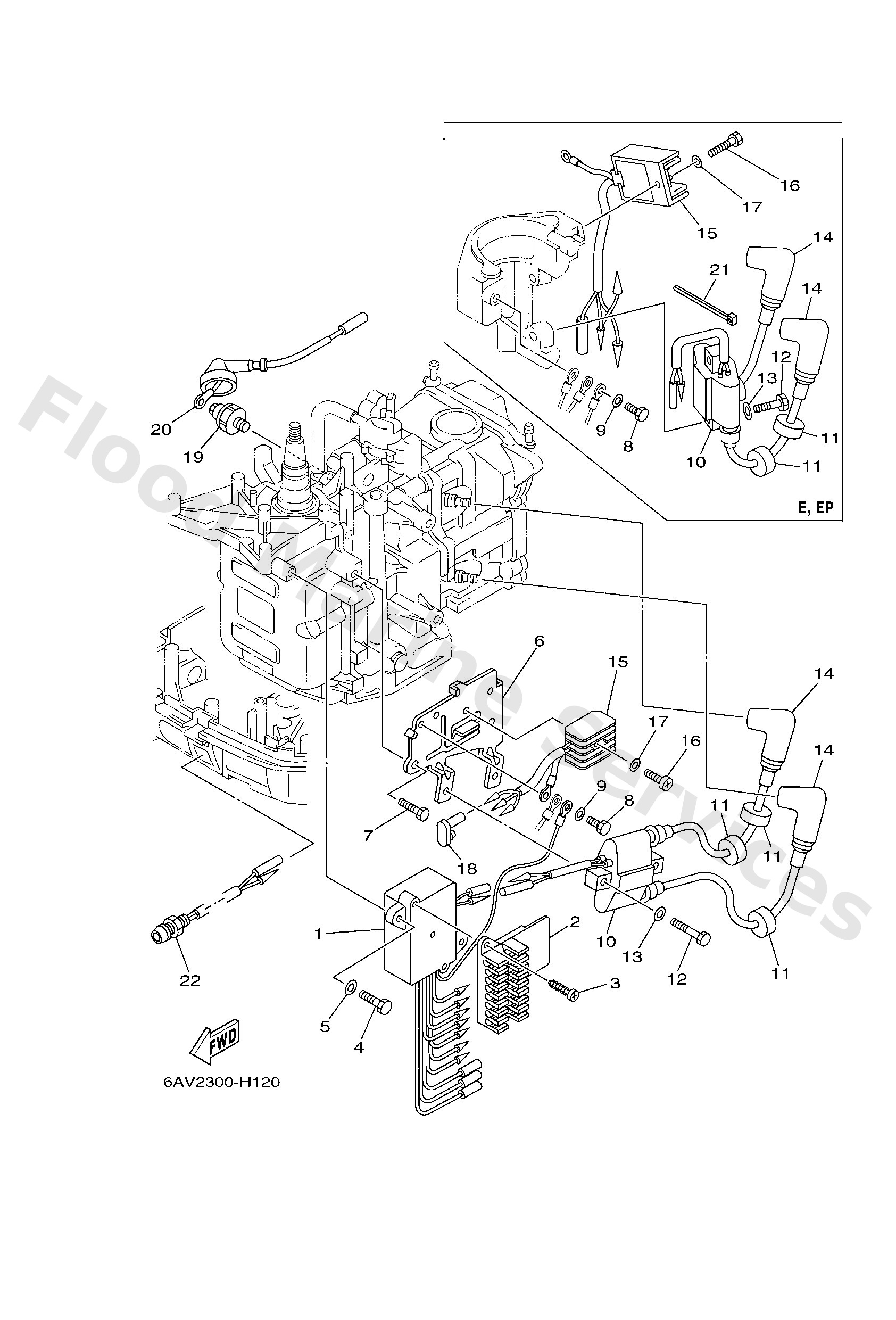

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
68T8554000
C.d.i. unit assembly
Loading…
↗
2
68T8252200
Clamp, coupler
Loading…
↗
3
9778040512
Screw, pan head tapping
Loading…
↗
4
9709506020
Bolt(7u8)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
68T8554200
Bracket
Loading…
↗
7
9709508012
Bolt, hexagon deep recess
Loading…
↗
8
9709506012
Bolt(gh1)
Loading…
↗
10
6808557001
Ignition coil assembly
Loading…
↗
11
9048025003
Grommet
Loading…
↗
12
9709506025
Bolt
Loading…
↗
14
6E38237021
Plug cap assembly
Loading…
↗
15
6648197062
Rectifier assembly
Loading…
↗
15
68T8196000
Rectifier & regulator assembly
Loading…
↗
16
9788005025
Screw, panhead (a93)
Loading…
↗
17
9299005600
Washer, plain (646)
Loading…
↗
18
6A08211900
Cover, lead wire
Loading…
↗
19
67F8250400
Oil pressure switch assembly
Loading…
↗
20
68T8212710
Wire, lead 2
Loading…
↗
21
9046511M10
Clamp
Loading…
↗
22
68T8541000
Emergency signal light assembly
Loading…
↗
