H3.7AV (2021)
ELECTRICAL 1

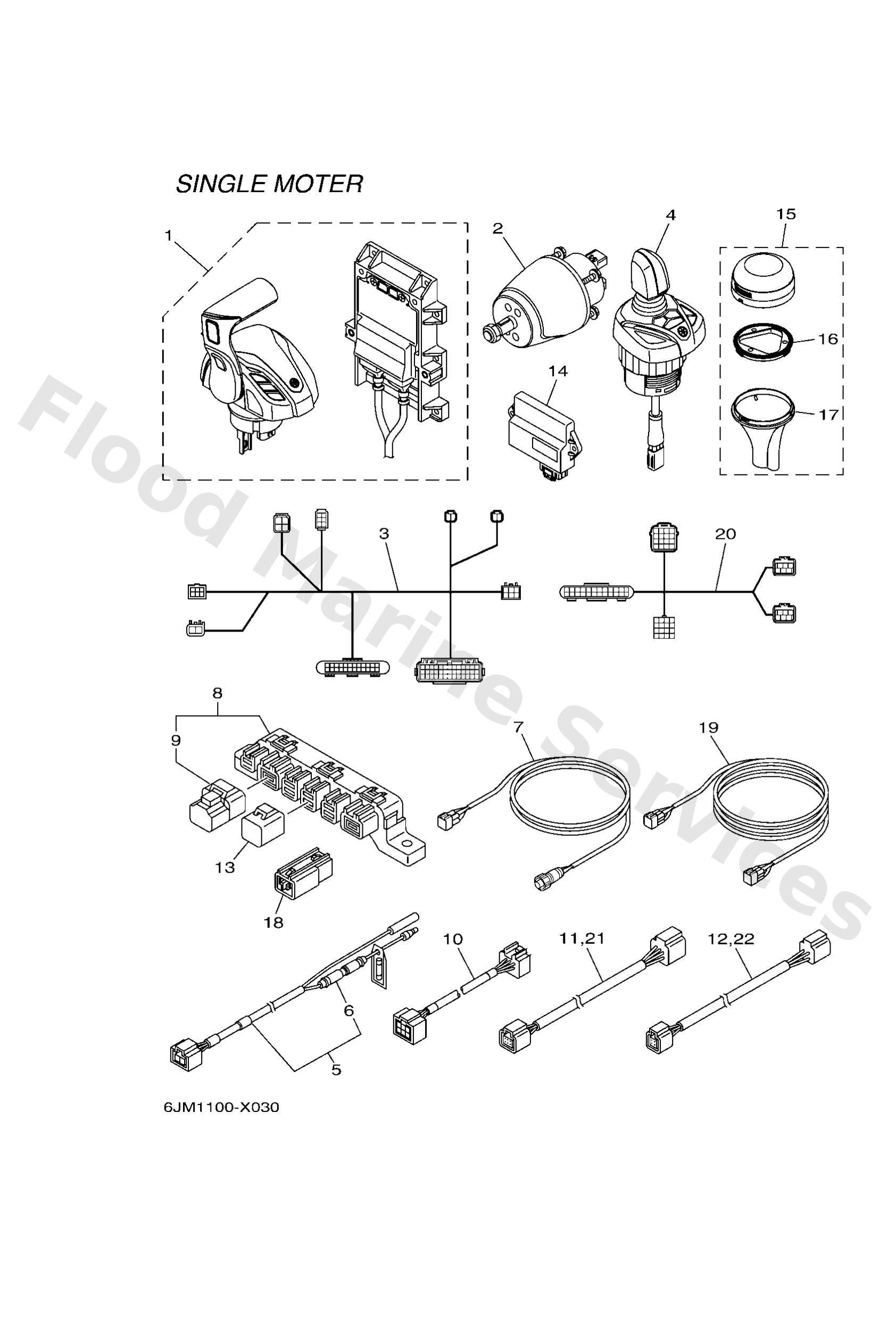

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6JM4820501
Remote control assembly
Loading…
↗
2
6JM615A000
Helm assembly.
Loading…
↗
3
6JM8238600
Extension, wire harness
Loading…
↗
4
6JM482A001
Joystick assembly
Loading…
↗
5
6Y88355302
8ft power wire
Loading…
↗
6
6G18215101
Fuse (10a)
Loading…
↗
7
6YM8355300
Conversion harness cl5-pigtail
Loading…
↗
8
6Y88192001
Multi-hub
Loading…
↗
9
6Y88537101
End of line resister
Loading…
↗
10
6Y98355300
Wire, lead
Loading…
↗
21
6Y88255301
UR
Main bus wire 0.3m-1ft
Loading…
↗
12
6Y88252131
Pigtail bus wire 1.8m-6ft
Loading…
↗
13
6Y88258211
White cap 1 (4pin)
Loading…
↗
14
6X98591T12
ASK TO MARINE DIV
Bcu (ap/joystick single)
Loading…
↗
15
6X98810700
Gps unit
Loading…
↗
16
6X98252H00
Plate, holder
Loading…
↗
17
6X98255H00
Holder, socket
Loading…
↗
18
6Y88192011
Single-hub
Loading…
↗
19
6X68258A41
UR 12M-39FT MAIN-HARNESS (16P)
16p dbw main harness 12m-38ft
Loading…
↗
19
6X68258A71
UR 15M-49FT MAIN-HARNESS (16P)
16p dbw main harness 15m-49ft
Loading…
↗
19
6X68258A01
UR 6M-19FT MAIN-HARNESS (16P)
Extension, wire harness(6.1m)
Loading…
↗
19
6X68258A31
UR 10M-32FT MAIN-HARNESS (16P)
16p dbw main harness 10m-32ft
Loading…
↗
19
6X68258A21
UR 8M-26FT MAIN-HARNESS (16P)
16p dbw main harness 8m-26ft
Loading…
↗
19
6X68258A11
UR 7M-23FT MAIN-HARNESS (16P)
16p dbw main harness 7m-23ft
Loading…
↗
19
6X68258A61
Extension, wire harness (5.2m)
Loading…
↗
19
6X68258A51
Extension, wire harness (3.7m)
Loading…
↗
19
6X68258A91
UR 1.5M-5FT MAIN-HARNESS (16P)
Extension, Wire Harness (1.5M)
Loading…
↗
19
6X68258A81
UR 24M-79FT MAIN-HARNESS (16P)
16p dbw main harness 24m-79ft
Loading…
↗
20
6GR8258A00
UR SINGLE ENGINE (MAIN ST)
Helm harness (main/single 0.9m
Loading…
↗
20
6GR8258A40
UR SINGLE ENGINE (MAIN ST)
Helm harness (main/single)1.8m
Loading…
↗
21
6Y88255331
UR
Main bus wire 7.6m (25ft)
Loading…
↗
21
6Y88255321
UR
Main bus wire 6.1m (20ft)
Loading…
↗
21
6Y88255311
UR
Main bus wire 4.6m (15ft)
Loading…
↗
21
6Y88255350
UR
Main bus wire 3.0m-10ft
Loading…
↗
21
6Y88255341
UR
Main bus wire 9.1m (30ft)
Loading…
↗
22
6Y88252101
UR
1ft pigtail bus
Loading…
↗
22
6Y88252111
UR
Pigtail bus wire 0.6m-2ft
Loading…
↗
