L200FETO (2006)
ELECTRICAL 1

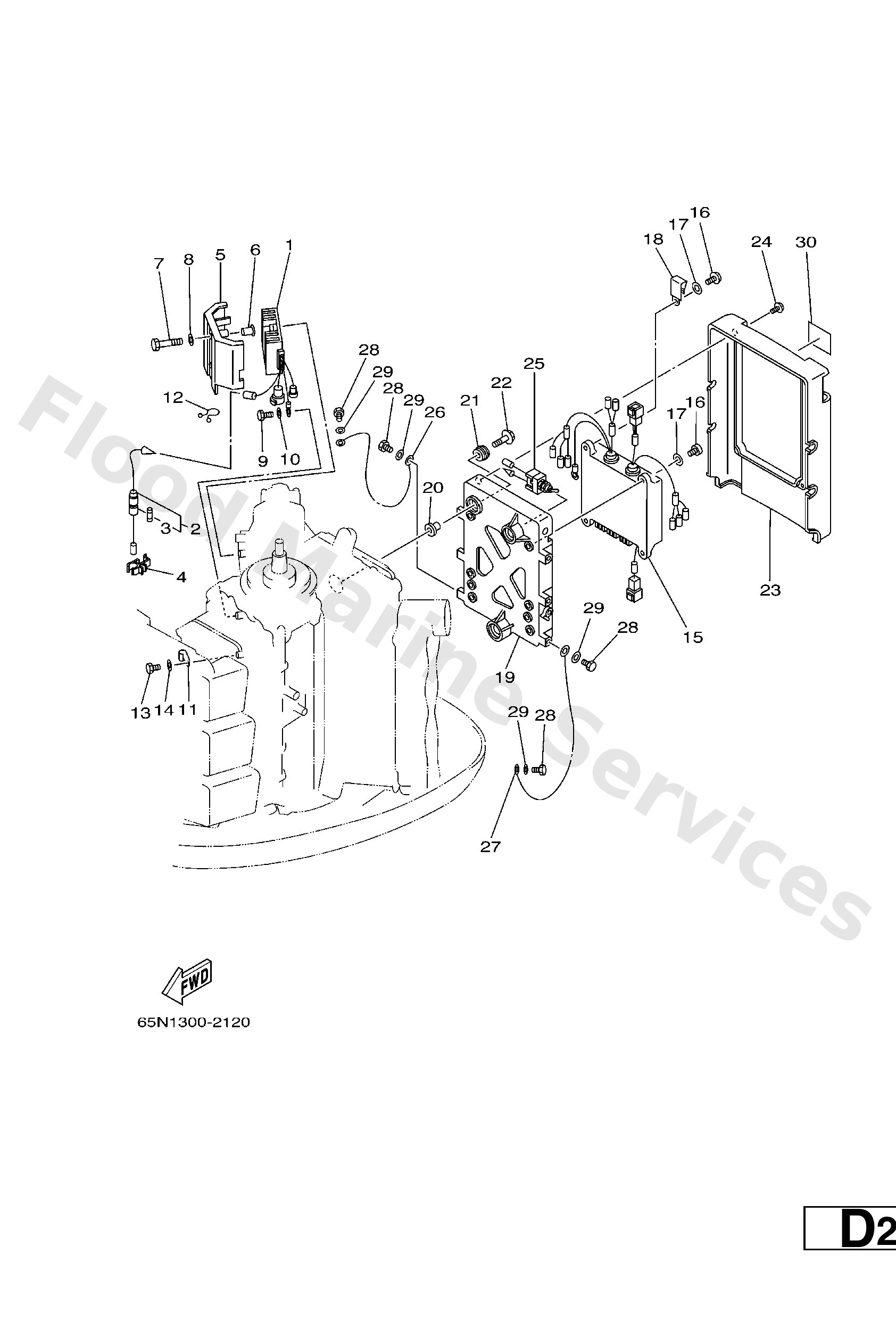

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6R38196010
Rectifier & regulator assembly
Loading…
↗
2
6R38215000
Fuse holder assembly
Loading…
↗
3
7058215100
Fuse (30a)
Loading…
↗
4
6G58215200
Holder, fuse
Loading…
↗
5
64D8194200
Cover
Loading…
↗
6
9038706M66
Collar (6h4)
Loading…
↗
7
9701306055
Bolt(64d)
Loading…
↗
8
9290306600
Washer, plain (646)
Loading…
↗
9
9709506012
Bolt(gh1)
Loading…
↗
10
9299506600
Washer, plain (646)
Loading…
↗
11
9046506M88
Clamp
Loading…
↗
12
9046415M11
Clamp (3y2)
Loading…
↗
15
64D8554001
C.d.i. unit assembly
Loading…
↗
16
9788006020
Screw pan head
Loading…
↗
17
9299006600
Washer, plain (646)
Loading…
↗
18
9046505M87
Clamp
Loading…
↗
19
6R385542031S
Bracket
Loading…
↗
20
9038706M03
Collar (676)
Loading…
↗
21
9048009M12
Grommet (6a0)
Loading…
↗
22
9011906M61
Bolt, with washer
Loading…
↗
23
64D8553700
Cover
Loading…
↗
24
9015906M11
Screw, with washer(6l2)
Loading…
↗
25
6R38259E00
Switch assembly
Loading…
↗
26
6628251900
Wire, earth lead
Loading…
↗
27
6R38251900
Wire, earth lead
Loading…
↗
30
6E58571160
Mark, Caution
Loading…
↗
