L250AETO (2006)
ELECTRICAL 1

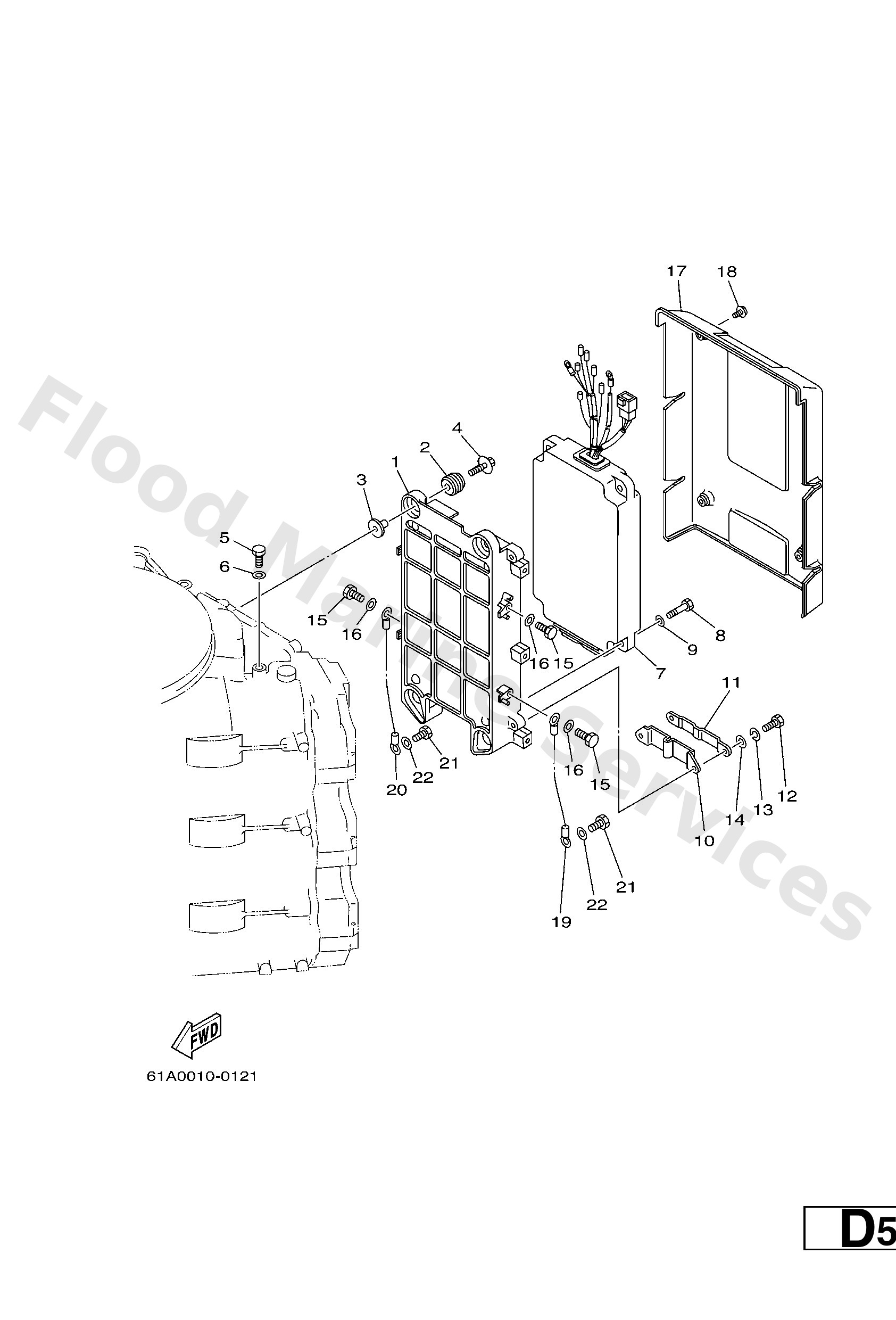

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
61A855420194
Bracket
Loading…
↗
2
9048009M12
Grommet (6a0)
Loading…
↗
3
9038706M03
Collar (676)
Loading…
↗
4
9011906M28
Bolt, With Washer
Loading…
↗
5
9701306016
Bolt, hexagon deep recess
Loading…
↗
6
9290306600
Washer, plain (646)
Loading…
↗
7
62J8554002
C.d.i. Unit assembly
Loading…
↗
8
9701306025
Bolt(62y)
Loading…
↗
10
61A8554800
Holder
Loading…
↗
11
61A8552500
Cover
Loading…
↗
12
9709506016
Bolt, hexagon deep recess
Loading…
↗
13
9299506100
Washer(6a1)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
9701306014
Bolt(gj3)
Loading…
↗
17
61A8553700
Cover
Loading…
↗
18
9015906M03
Screw (6g5)
Loading…
↗
19
61A8251900
Wire, Earth Lead
Loading…
↗
20
6G08251900
Wire, earth lead
Loading…
↗
21
9709506012
Bolt(gh1)
Loading…
↗
