LF150B (2023)
ELECTRICAL 1

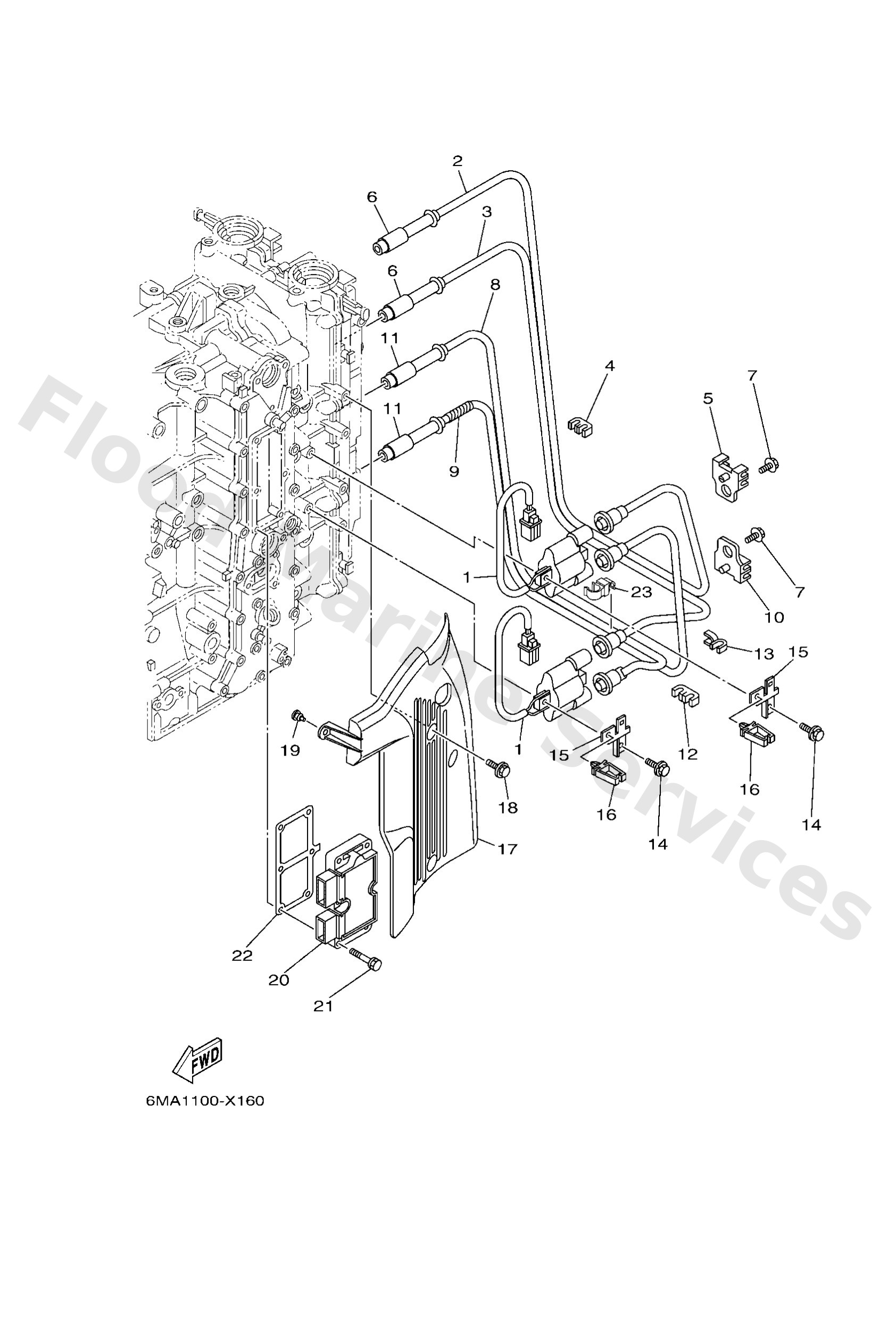

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
63P8231001
Ignition coil assembly
Loading…
↗
2
6MA8234100
Cord, high tension 1
Loading…
↗
3
6MA8234200
Cord, high tension 2
Loading…
↗
4
67F8236100
Clamp, cord
Loading…
↗
5
67F8236200
Clamp, cord 2
Loading…
↗
6
6MA8237000
Plug cap assembly
Loading…
↗
7
9011906275
Bolt, with washer
Loading…
↗
8
6MA8234300
Cord, high tension 3
Loading…
↗
9
6MA8234400
Cord, high tension 4
Loading…
↗
13
9046407M41
Clamp(62y)
Loading…
↗
14
97E9506625
Bolt, hexagon w/w deep recess
Loading…
↗
15
63P8238800
Plate
Loading…
↗
16
9046405141
Clamp(7ly)
Loading…
↗
17
63P8231401
Cover, ignition coil
Loading…
↗
18
95D9506020
Bolt, flange deep recess
Loading…
↗
19
9048006M19
Grommet (6e3)
Loading…
↗
20
63P8196002
Rectifier & regulator assembly
Loading…
↗
21
9011906MA4
Bolt, with washer
Loading…
↗
22
63P8197500
Plate, rectifier fitting
Loading…
↗
23
9046412017
Clamp
Loading…
↗
