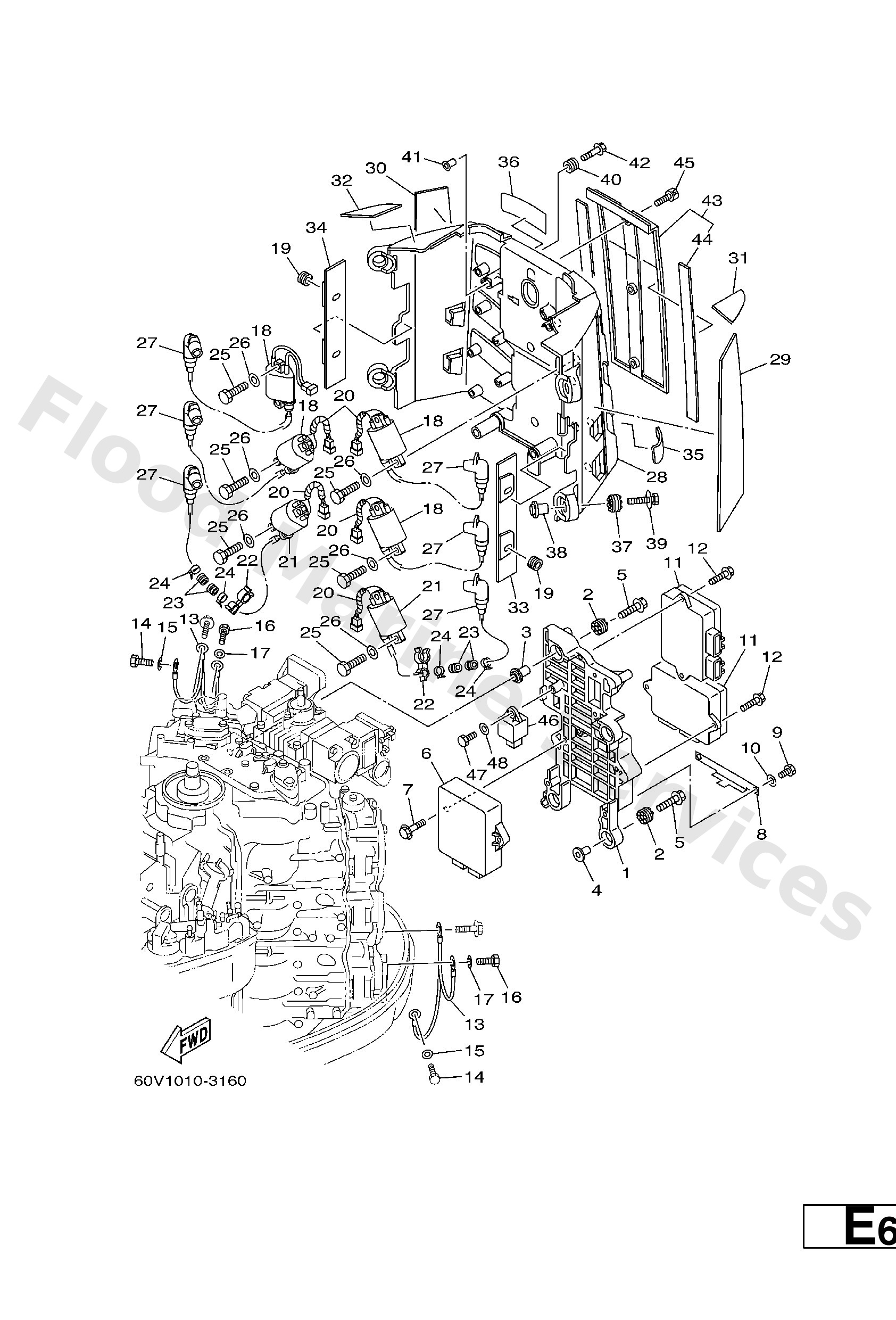

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
60V−85542−00−94
Bracket
Loading…

↗
2
60V−85564−00
Grommet
Loading…

↗
3
68F−86129−00
Collar
Loading…

↗
4
68F−86129−10
Collar
Loading…

↗
5
68F−85119−00
Bolt
Loading…

↗
6
60V−8591A−00
17 −
Loading…

↗
7
90119−06MA3
Bolt, with washer
Loading…

↗
8
60V−85548−00
Holder
Loading…

↗
9
97013−06014
Bolt(gj3)
Loading…

↗
10
92903−06600
Washer, plain (646)
Loading…

↗
11
60V−8591B−00
Driver, injector assembly
Loading…

↗
12
90119−06MA2
Bolt, with washer
Loading…

↗
13
6E5−82519−00
Wire, Earth Lead
Loading…

↗
14
97095−06012
Bolt(gh1)
Loading…

↗
15
92995−06600
Washer, plain (646)
Loading…

↗
18
68F−82310−01
Ignition coil assembly
Loading…

↗
19
90480−25161
Grommet(656)
Loading…

↗
20
90446−10M01
Tube (6e5)
Loading…

↗
21
68F−82310−11
Ignition coil assembly
Loading…

↗
22
90464−18003
Clamp
Loading…

↗
23
90480−22M15
Grommet (6e5)
Loading…

↗
24
90465−11M10
Clamp
Loading…

↗
25
97013−05020
Bolt, hexagon
Loading…

↗
26
92903−05600
Washer, plain (646)
Loading…

↗
27
68F−82370−01
Plug cap assembly
Loading…

↗
28
60V−82314−00
Cover, Ignition Coil
Loading…

↗
29
60V−24198−00
Seat, Rubber
Loading…

↗
30
60V−24198−10
Seat, Rubber
Loading…

↗
31
60V−8818D−00
Seat 1
Loading…

↗
32
60V−8818D−10
Seat 1
Loading…

↗
33
60V−23116−00
Guide, Cover Lower
Loading…

↗
34
60V−23116−10
Seat 2
Loading…

↗
35
60V−2318U−00
Plate, Seat
Loading…

↗
36
60V−2318U−10
Plate, Seat
Loading…

↗
37
68F−85516−01
Spacer
Loading…

↗
40
6A0−82317−00
Damper, ignition coil
Loading…

↗
41
624−42542−00
Collar
Loading…

↗
42
90119−06M65
Bolt, with washer
Loading…

↗
43
60V−8252U−00
Cover
Loading…

↗
44
60V−23115−00
Seat 1
Loading…

↗
45
90111−06034
Bolt,hex. socket button
Loading…

↗
46
68V−81950−00
Relay assembly
Loading…

↗
47
97095−06016
Bolt, hexagon deep recess
Loading…

↗
