LZ250DETO (2007)
ELECTRICAL 1

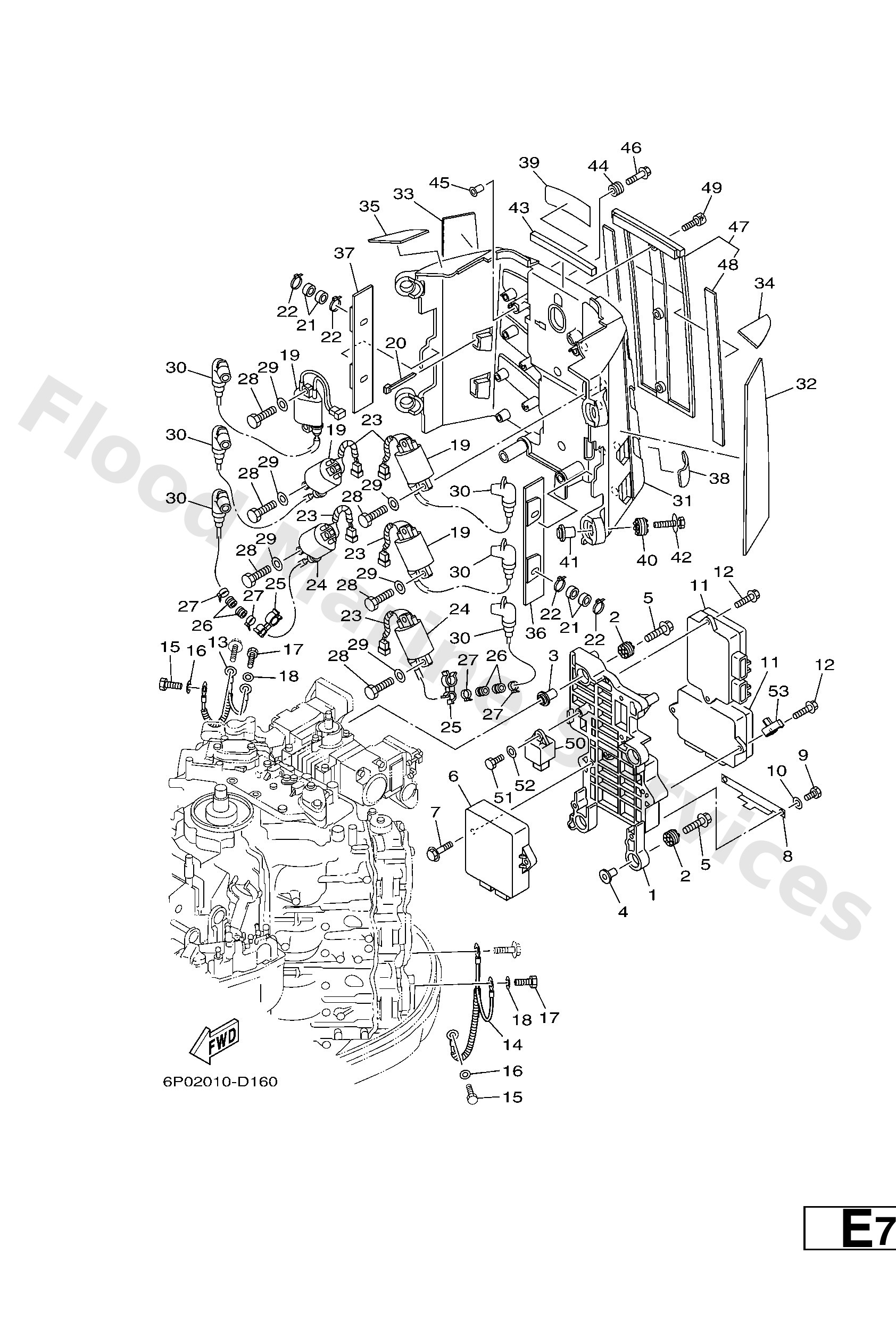

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
60V855420194
Bracket
Loading…
↗
2
60V8556400
Grommet
Loading…
↗
3
9038706176
Collar
Loading…
↗
4
68F8612910
Collar
Loading…
↗
5
68F8511900
Bolt
Loading…
↗
6
60V8591A51
Engine Control Unit assembly
Loading…
↗
7
9011906MA3
Bolt, with washer
Loading…
↗
8
60V8554800
Holder
Loading…
↗
9
9701306014
Bolt(gj3)
Loading…
↗
10
9290306600
Washer, plain (646)
Loading…
↗
11
60V8591B00
Driver, injector assembly
Loading…
↗
12
9011906MA2
Bolt, with washer
Loading…
↗
13
60V8251900
Wire, Earth Lead
Loading…
↗
14
60V8251910
Wire, earth lead
Loading…
↗
15
9709506012
Bolt(gh1)
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
19
60V8231001
Ignition coil assembly
Loading…
↗
20
9046511M52
Clamp(6e7)
Loading…
↗
21
9048025161
Grommet(656)
Loading…
↗
22
9046511M10
Clamp
Loading…
↗
23
9044610M01
Tube (6e5)
Loading…
↗
24
60V8231010
Ignition coil assembly
Loading…
↗
25
9046418003
Clamp
Loading…
↗
26
9048022M15
Grommet (6e5)
Loading…
↗
28
9701305020
Bolt, hexagon
Loading…
↗
29
9290305600
Washer, plain (646)
Loading…
↗
30
68F8237001
Plug cap assembly
Loading…
↗
31
60V8231401
Cover, Ignition Coil
Loading…
↗
32
60V2419800
Seat, Rubber
Loading…
↗
33
60V2419810
Seat, Rubber
Loading…
↗
34
60V8818D00
Seat 1
Loading…
↗
35
60V8818D10
Seat 1
Loading…
↗
36
60V2311600
Seat 2
Loading…
↗
37
60V2311610
Seat 2
Loading…
↗
38
60V2318U00
Plate, Seat
Loading…
↗
39
60V2318U10
Plate, Seat
Loading…
↗
40
68F8551601
Spacer
Loading…
↗
43
6D08252R00
Damper
Loading…
↗
44
6A08231700
Damper, ignition coil
Loading…
↗
45
9038706119
Collar
Loading…
↗
46
9011906M65
Bolt, with washer
Loading…
↗
47
60V8252U01
Cover
Loading…
↗
48
60V2311500
Seat 1
Loading…
↗
49
9011106034
Bolt,hex. socket button
Loading…
↗
50
68V8195000
Relay assembly
Loading…
↗
51
9709506016
Bolt, hexagon deep recess
Loading…
↗
53
9046208028
Clamp
Loading…
↗
