ME372STIP1 (2007)
ELECTRICAL 1

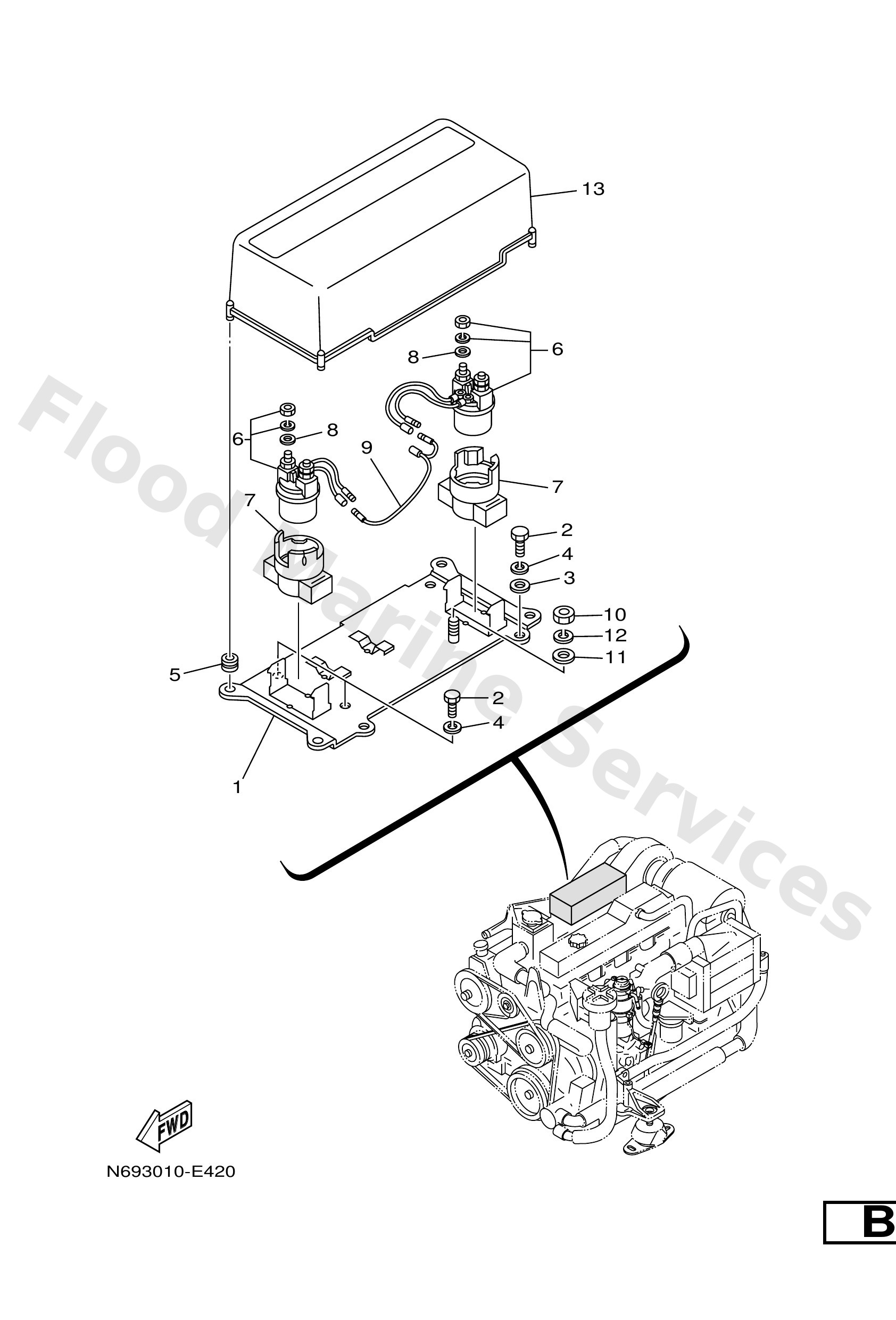

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6TA8194800
Bracket
Loading…
↗
2
9708006016
Bolt(7rc)
Loading…
↗
3
9020106M62
Washer, plate (6e5)
Loading…
↗
3
12
92990-10100
Loading…
↗
4
9299006100
Washer(6a1)
Loading…
↗
5
9048010M58
Grommet(6ta)
Loading…
↗
6
6T38194100
Starter relay assembly
Loading…
↗
7
6M68195201
Holder Relay
Loading…
↗
7
10
-
Loading…
↗
8
8
-
Loading…
↗
9
6TA8251900
Wire, earth lead
Loading…
↗
10
13
-
Loading…
↗
11
9299010600
Washer, plate
Loading…
↗
