VF115A (2022)
ELECTRICAL 1

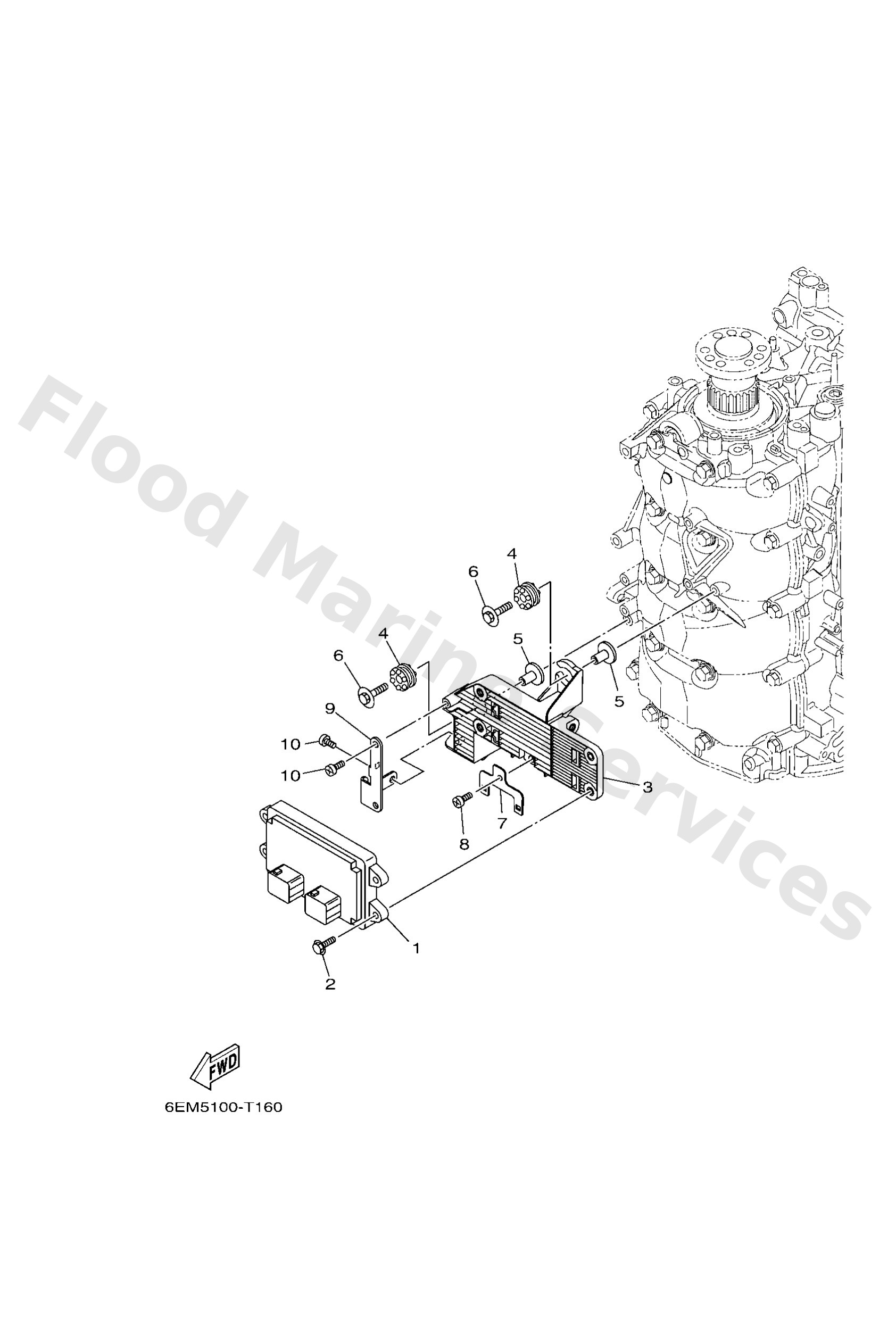

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6FN8591A10
Engine control unit assembly
Loading…
↗
2
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
3
6EM8194801
Bracket
Loading…
↗
4
60V8556400
Grommet
Loading…
↗
5
9038706176
Collar
Loading…
↗
6
68F8511900
Bolt
Loading…
↗
7
6C58257V00
Plate, connector
Loading…
↗
8
9778060620
Screw, tapping(6k8)
Loading…
↗
9
6EK8554800
Holder
Loading…
↗
