VF200XB (2025)
ELECTRICAL 1

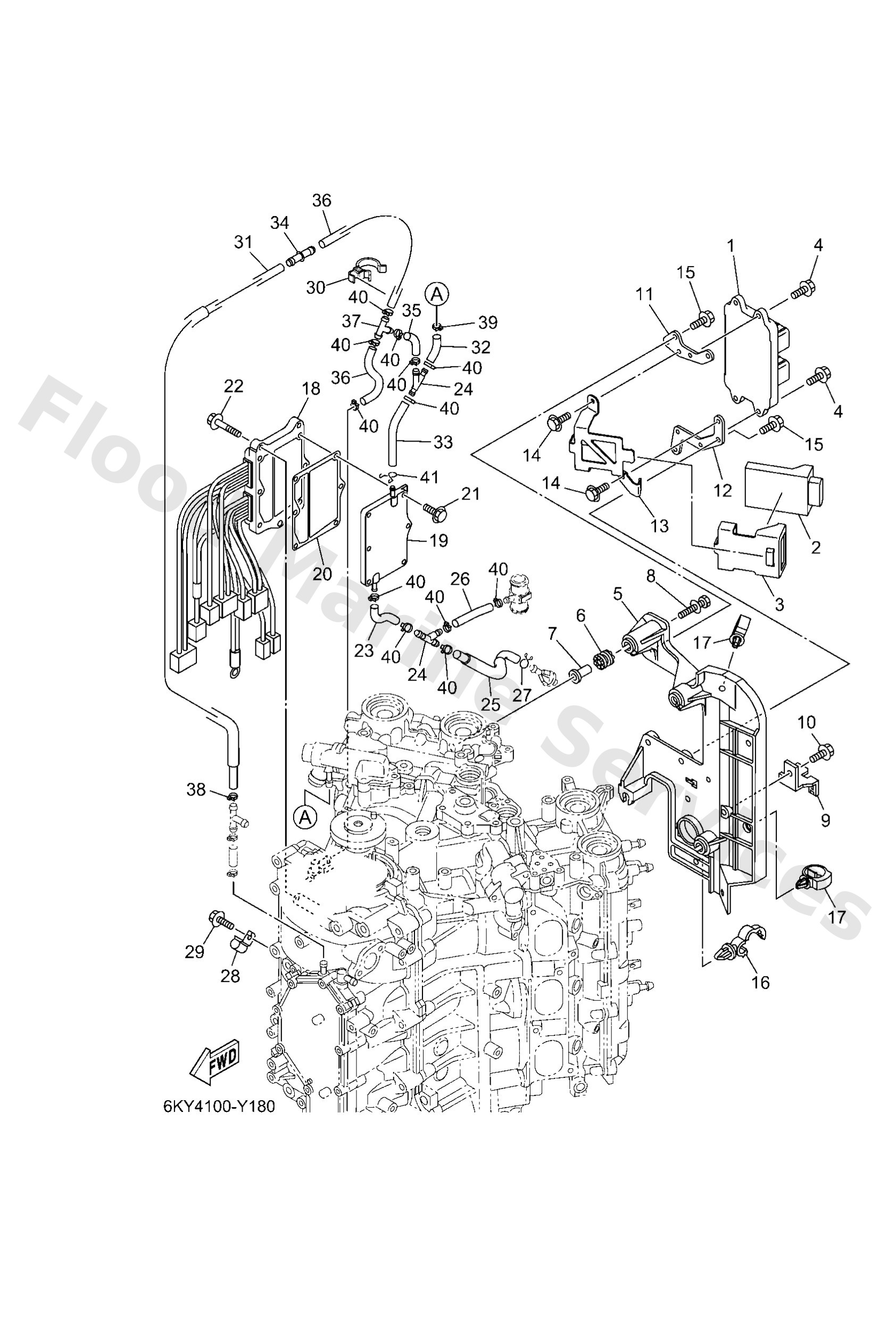

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6LG8591A03
Engine control unit assembly
Loading…
↗
2
6KW8533500
Adapter, Interface
Loading…
↗
3
6KW8554600
Band
Loading…
↗
4
95D9506016
Bolt, flange deep recess
Loading…
↗
5
6CB8231601
Bracket, ignition coil
Loading…
↗
6
64J8551601
Spacer
Loading…
↗
7
69M4275801
Collar
Loading…
↗
8
9011906293
Bolt, with washer
Loading…
↗
9
6BR8184500
Plate
Loading…
↗
10
95D9506012
Bolt, flange deep recess
Loading…
↗
11
6KW8141100
-
Loading…
↗
12
6KW8141110
-
Loading…
↗
13
6KW8141200
-
Loading…
↗
16
9046413249
Clamp
Loading…
↗
17
9046420181
Clamp(4ap)
Loading…
↗
18
6CE8196010
Rectifier & regulator assembly
Loading…
↗
19
6CE81972009S
Cover, rectifier
Loading…
↗
20
6CE8197500
Plate, rectifier fitting
Loading…
↗
21
9011906MA3
Bolt, with washer
Loading…
↗
22
95D9506025
Bolt, flange deep recess
Loading…
↗
23
6CE1248A00
Pipe 8
Loading…
↗
24
6CE2437700
Pipe, joint 2
Loading…
↗
25
6CE1248300
Pipe 3
Loading…
↗
26
90445107A5
Hose (l30)
Loading…
↗
27
9046709M09
Clip(6k8)
Loading…
↗
28
9046206013
Clamp
Loading…
↗
29
9502306012
Bolt, flange(2uj)
Loading…
↗
30
9046426002
Clamp
Loading…
↗
31
6CE1248110
Pipe 1
Loading…
↗
32
6CE1487200
Pipe 2
Loading…
↗
33
6CE1248500
Pipe 5
Loading…
↗
34
6CE2437601
Pipe, joint 1
Loading…
↗
36
9044509068
Hose (l420)
Loading…
↗
37
6882437800
Pipe, joint
Loading…
↗
38
9046511M10
Clamp
Loading…
↗
41
9046708M18
Clip
Loading…
↗
