VF90A (2021)
ELECTRICAL 1

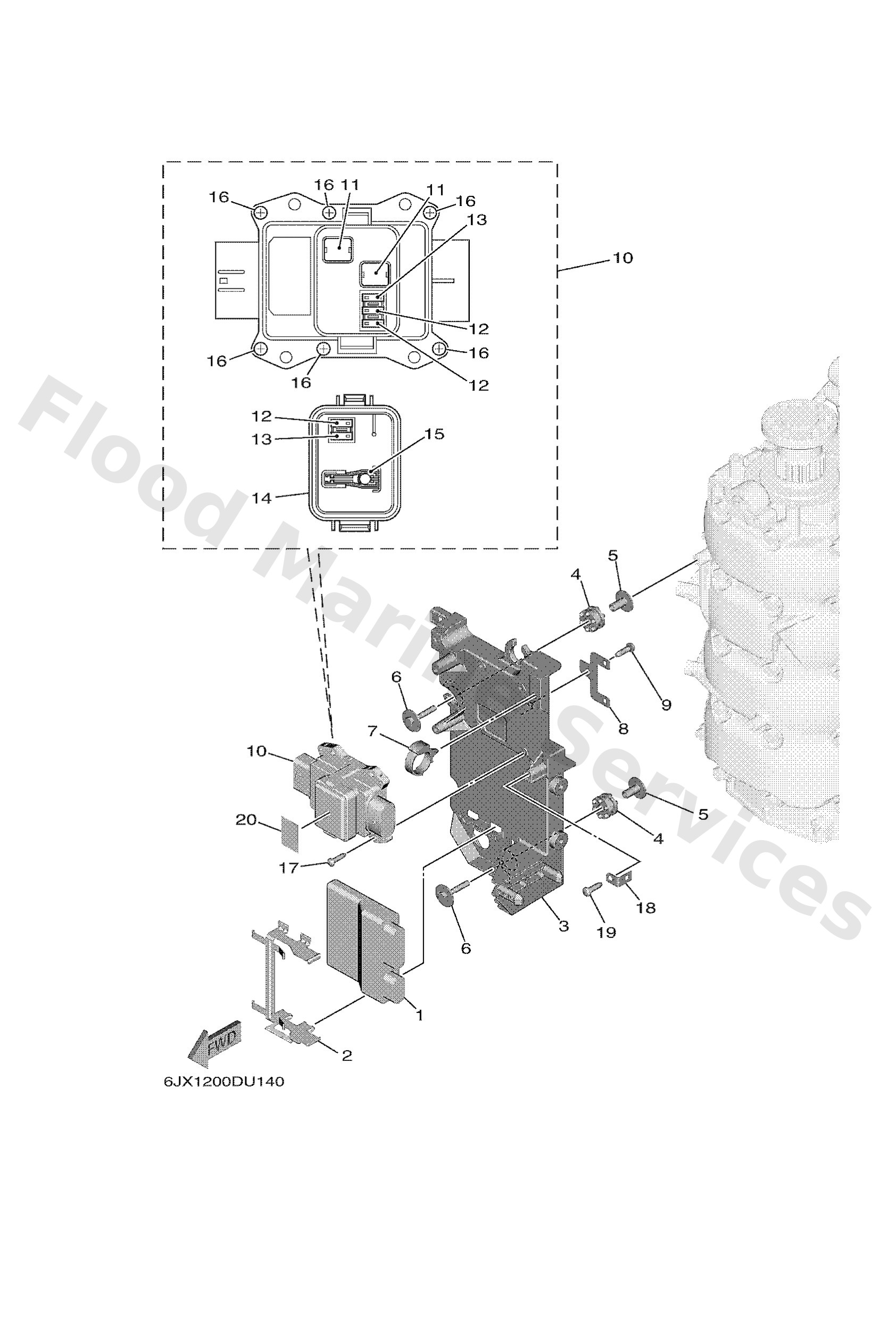

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6HK8591A00
Engine control unit assembly
Loading…
↗
2
6FP8253C00
Spring, plate lock
Loading…
↗
3
6FP8194810
Bracket
Loading…
↗
4
60V8556400
Grommet
Loading…
↗
5
9038706176
Collar
Loading…
↗
6
68F8511900
Bolt
Loading…
↗
7
9046412183
Clamp(jn2)
Loading…
↗
8
6C58257V00
Plate, connector
Loading…
↗
9
9778060620
Screw, tapping(6k8)
Loading…
↗
10
6FP8217000
Fuse box assembly
Loading…
↗
11
6FP8215100
Fuse
Loading…
↗
12
6CB8215120
Fuse (20a)
Loading…
↗
13
6CB8215130
Fuse (30a)
Loading…
↗
14
6FP8554400
Cover
Loading…
↗
15
6CB2812A00
Puller, fuse
Loading…
↗
16
6P28211300
Screw (m3)
Loading…
↗
17
9778050620
Screw, tapping
Loading…
↗
18
68V8554801
Holder
Loading…
↗
20
6FP8191901
Graphic, regulator
Loading…
↗
