VZ200TR2 (2005)
ELECTRICAL 1

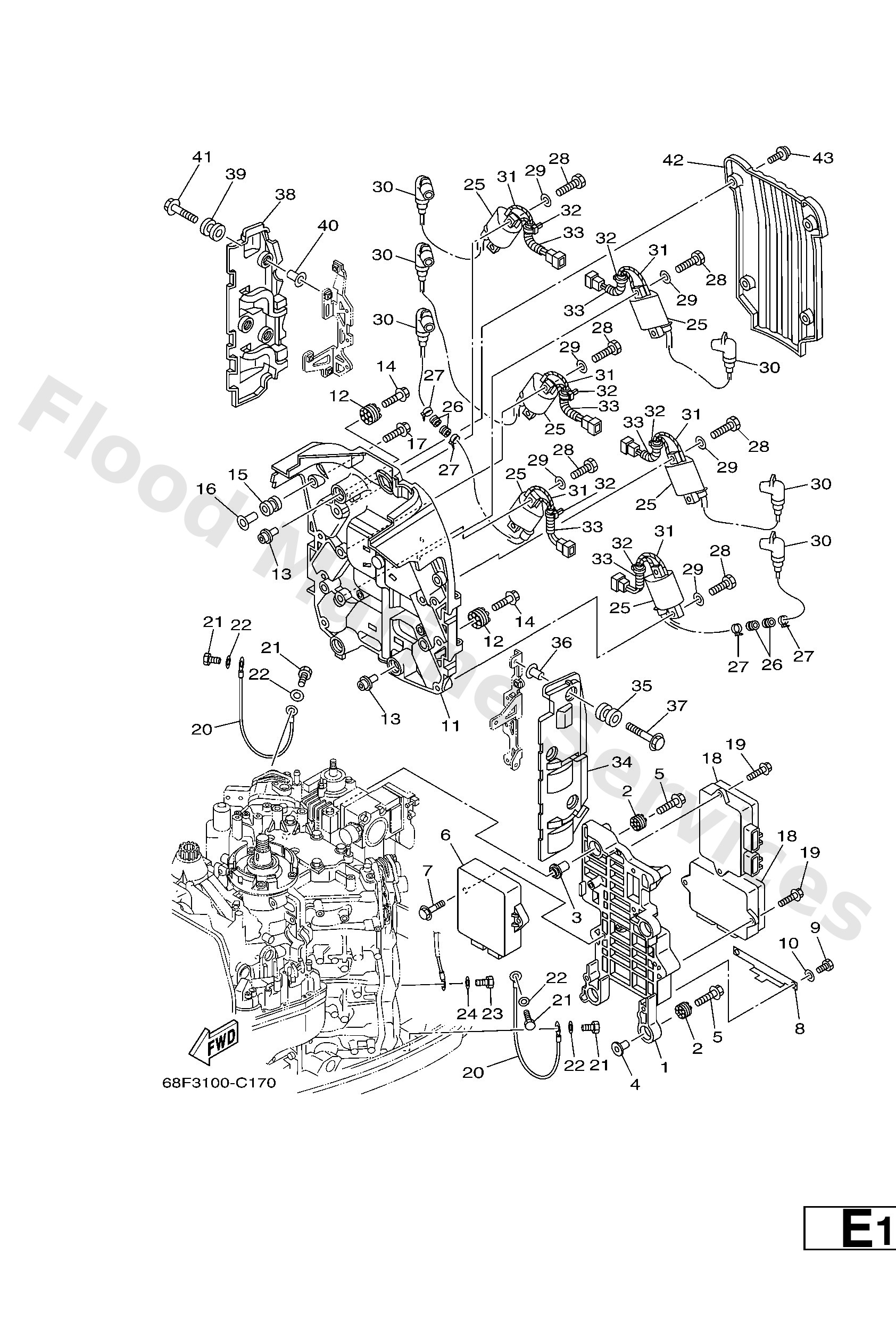

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
60V855420194
Bracket
Loading…
↗
2
68F8556400
Grommet
Loading…
↗
3
68F8612900
Collar
Loading…
↗
4
68F8612910
Collar
Loading…
↗
5
68F8511900
Bolt
Loading…
↗
6
68J8591A30
Engine control unit assembly
Loading…
↗
6
68M8591A30
Engine Control Unit assembly
Loading…
↗
6
60F8591A20
Engine control unit assembly
Loading…
↗
7
9011906MA3
Bolt, with washer
Loading…
↗
8
60V8554800
Holder
Loading…
↗
9
9701306014
Bolt(gj3)
Loading…
↗
10
9290306600
Washer, plain (646)
Loading…
↗
11
68F8231600
Bracket, ignition coil
Loading…
↗
12
68F8551601
Spacer
Loading…
↗
15
6A08231700
Damper, ignition coil
Loading…
↗
16
6244254200
Collar
Loading…
↗
17
9011906M88
Bolt, with washer
Loading…
↗
18
60V8591B00
Driver, injector assembly
Loading…
↗
19
9011906MA2
Bolt, with washer
Loading…
↗
20
6G08251900
Wire, earth lead
Loading…
↗
21
9709506012
Bolt(gh1)
Loading…
↗
22
9299506600
Washer, plain (646)
Loading…
↗
25
68F8231001
Ignition coil assembly
Loading…
↗
26
9048022M15
Grommet (6e5)
Loading…
↗
27
9046511M10
Clamp
Loading…
↗
28
9701305020
Bolt, hexagon
Loading…
↗
29
9290305600
Washer, plain (646)
Loading…
↗
30
68F8237001
Plug cap assembly
Loading…
↗
31
9044803001
Hose, with union
Loading…
↗
33
9044707007
Hose, with spring
Loading…
↗
34
68F8252U20
Cover
Loading…
↗
38
68F8252U30
Cover
Loading…
↗
42
68F8357900
Cover, meter 2
Loading…
↗
43
9011106034
Bolt,hex. socket button
Loading…
↗
