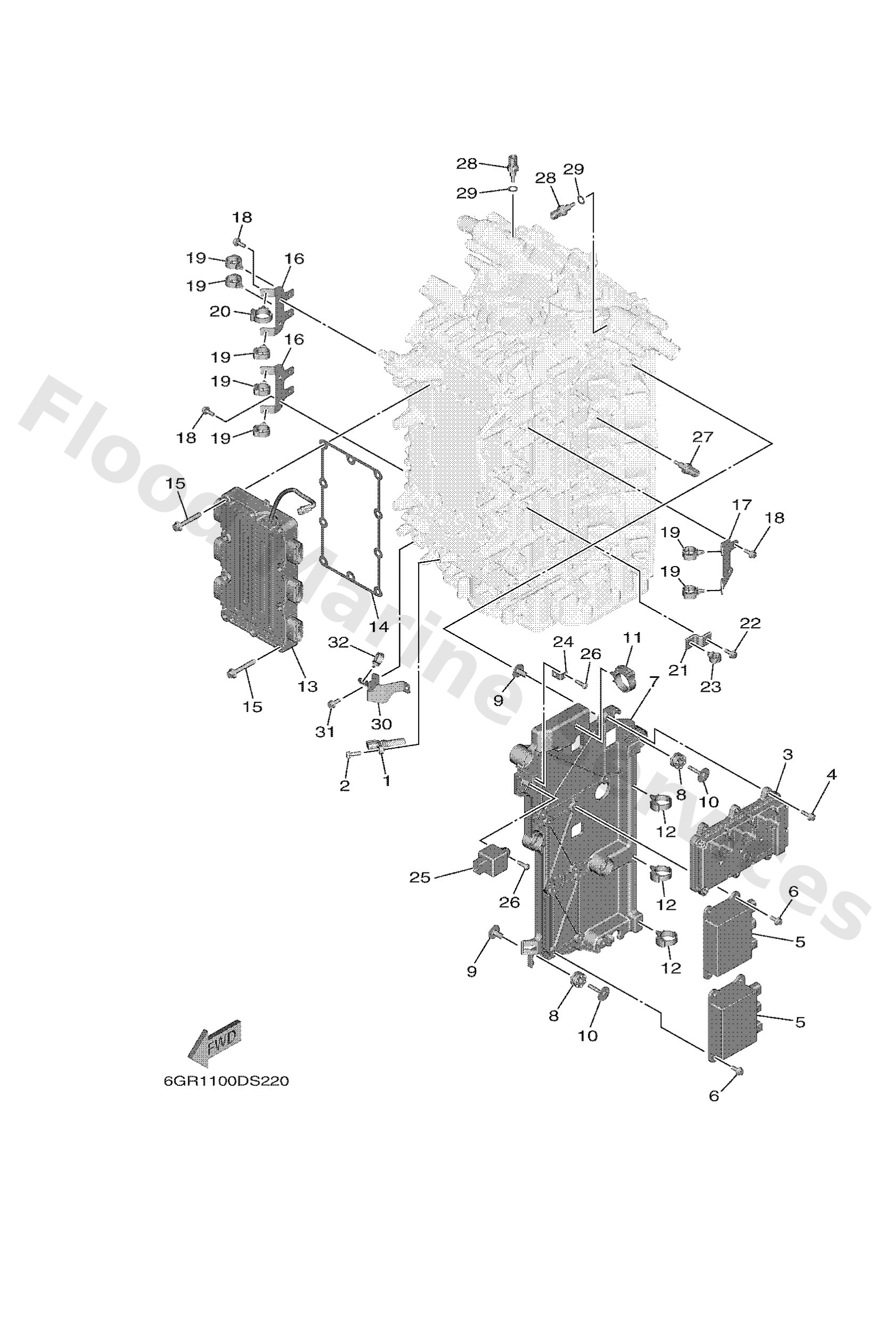

Diagram: ELECTRICAL 1

Diagram

Parts List

Reference
Description
Price


1
6GR8589500
Crank position sensor
Loading…

↗
2
9759506520
Bolt(7u8)
Loading…

↗
3
6GT8591A00
Engine control unit assembly
Loading…

↗
4
9589506020
Bolt, flange(jk3)
Loading…

↗
5
6GR8591B00
Driver, injector assembly
Loading…

↗
6
9589506016
Bolt, flange deep recess
Loading…

↗
7
6GR8194800
Bracket
Loading…

↗
8
60V8556400
Grommet
Loading…

↗
9
9038706176
Collar
Loading…

↗
10
68F8511900
Bolt
Loading…

↗
11
9046432002
Clamp
Loading…

↗
12
9046412183
Clamp(jn2)
Loading…

↗
13
6GR8196000
Rectifier & regulator assembly
Loading…

↗
14
6GR8197500
Plate, rectifier fitting
Loading…

↗
15
9010508175
Bolt, flange
Loading…

↗
16
6GR8132G00
Plate
Loading…

↗
17
6GR818D200
Plate, 2
Loading…

↗
19
9046420181
Clamp(4ap)
Loading…

↗
21
6DA8238800
Plate
Loading…

↗
23
9046413249
Clamp
Loading…

↗
24
68V8554801
Holder
Loading…

↗
25
68V8195000
Relay assembly
Loading…

↗
26
9778060620
Screw, tapping(6k8)
Loading…

↗
27
4P98359100
Thermo unit
Loading…

↗
28
6GR8579000
Thermosensor assembly
Loading…

↗
29
9043010004
Gasket
Loading…

↗
30
6GR8361400
Bracket
Loading…

↗
