XF425NSB7 (2020)
ELECTRICAL 1

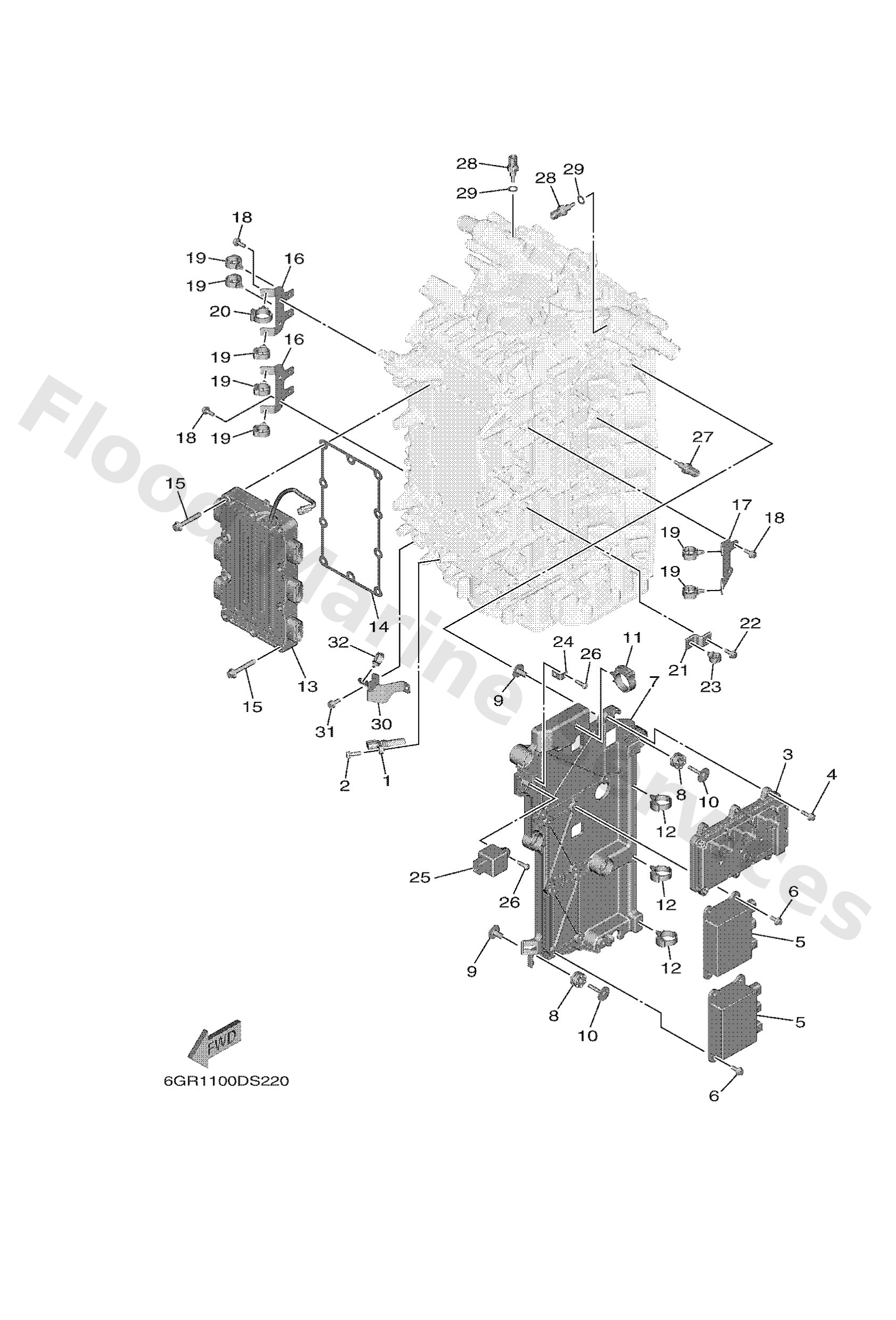

Diagram: ELECTRICAL 1
Parts List
Reference
Description
Price
1
6GR8589500
Crank position sensor
Loading…
↗
2
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
3
6GR8591A10
FOR XF425NSB
Engine Control Unit assembly
Loading…
↗
3
6GR8591A03
FOR XF425NSA
Engine control unit assembly
Loading…
↗
4
95D9506020
Bolt, flange deep recess
Loading…
↗
5
6GR8591B00
Driver, injector assembly
Loading…
↗
6
95D9506016
Bolt, flange deep recess
Loading…
↗
7
6GR8194800
Bracket
Loading…
↗
8
60V8556400
Grommet
Loading…
↗
9
9038706176
Collar
Loading…
↗
10
68F8511900
Bolt
Loading…
↗
11
9046432002
Clamp
Loading…
↗
12
9046412183
Clamp(jn2)
Loading…
↗
13
6GR8196000
FOR XF425NSA
Rectifier & regulator assembly
Loading…
↗
13
6GR8196010
FOR XF425NSB
Rectifier & regulator assembly
Loading…
↗
14
6GR8197500
Plate, rectifier fitting
Loading…
↗
15
9010508175
Bolt, flange
Loading…
↗
16
6GR8132G00
Plate
Loading…
↗
17
6GR818D200
Plate, 2
Loading…
↗
19
9046420181
Clamp(4ap)
Loading…
↗
21
6DA8238800
Plate
Loading…
↗
23
9046413249
Clamp
Loading…
↗
24
68V8554801
Holder
Loading…
↗
25
68V8195000
Relay assembly
Loading…
↗
26
9778060620
Screw, tapping(6k8)
Loading…
↗
27
4P98359100
Thermo unit
Loading…
↗
28
6GR8579000
Thermosensor assembly
Loading…
↗
29
9043010004
Gasket
Loading…
↗
30
6GR8361400
Bracket
Loading…
↗
