115BETO (2002)
ELECTRICAL 2

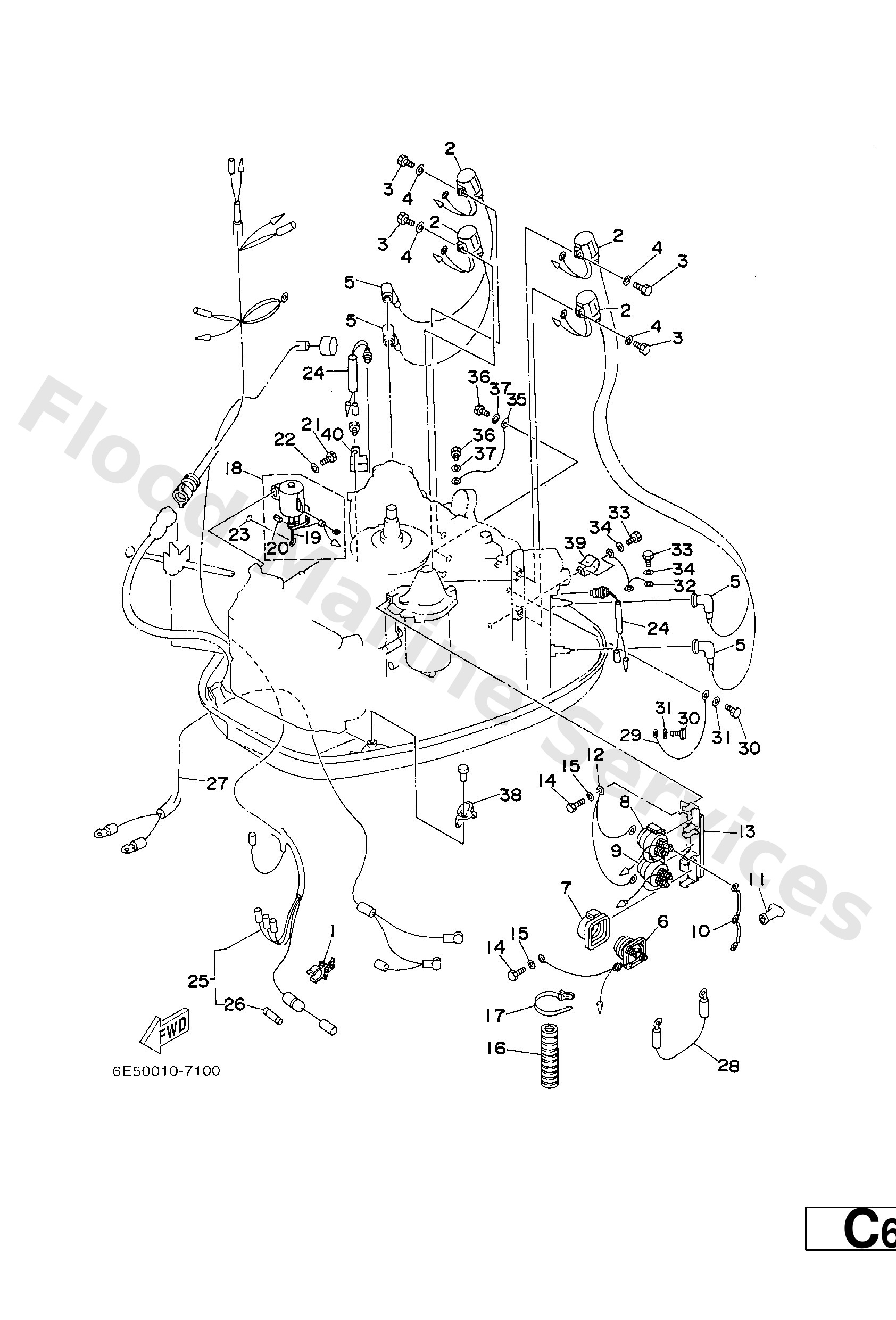

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6G58215200
Holder, fuse
Loading…
↗
2
6R38557001
Ignition coil assembly
Loading…
↗
3
9709506020
Bolt(7u8)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
6G18237021
Plug cap assembly
Loading…
↗
6
61A8194100
Starter relay assembly
Loading…
↗
7
6898195210
Holder, starter relay
Loading…
↗
8
6E58195000
Relay assembly
Loading…
↗
9
6E58195A00
Relay assembly
Loading…
↗
10
6G58714910
Connector
Loading…
↗
11
6G58211900
Cover, lead wire
Loading…
↗
12
6E58211600
Wire, minus lead
Loading…
↗
13
6E58194822
Bracket
Loading…
↗
14
9709506016
Bolt, hexagon deep recess
Loading…
↗
16
6N78355700
I.DIA.) 22MM
Tube
Loading…
↗
17
9046513M18
Clamp
Loading…
↗
18
6E58611002
Solenoid
Loading…
↗
19
6E58611601
Wire, pull
Loading…
↗
20
9160930010
Pin, spring (663)
Loading…
↗
23
9321003261
O-ring (663)
Loading…
↗
24
6888256010
Thermo switch assembly
Loading…
↗
25
6E58259015
Wire Harness assembly
Loading…
↗
26
6638215100
Fuse
Loading…
↗
27
6E58210512
Battery cable
Loading…
↗
28
6E58211701
Wire, lead
Loading…
↗
29
6R38251900
Wire, earth lead
Loading…
↗
30
9709506012
Bolt(gh1)
Loading…
↗
32
6E58253110
Wire, lead
Loading…
↗
35
6628251900
Wire, earth lead
Loading…
↗
38
9046512M25
Clamp (6e5)
Loading…
↗
39
9046505M87
Clamp
Loading…
↗
40
9046508M89
Clamp
Loading…
↗
