130BETO (2002)
ELECTRICAL 2

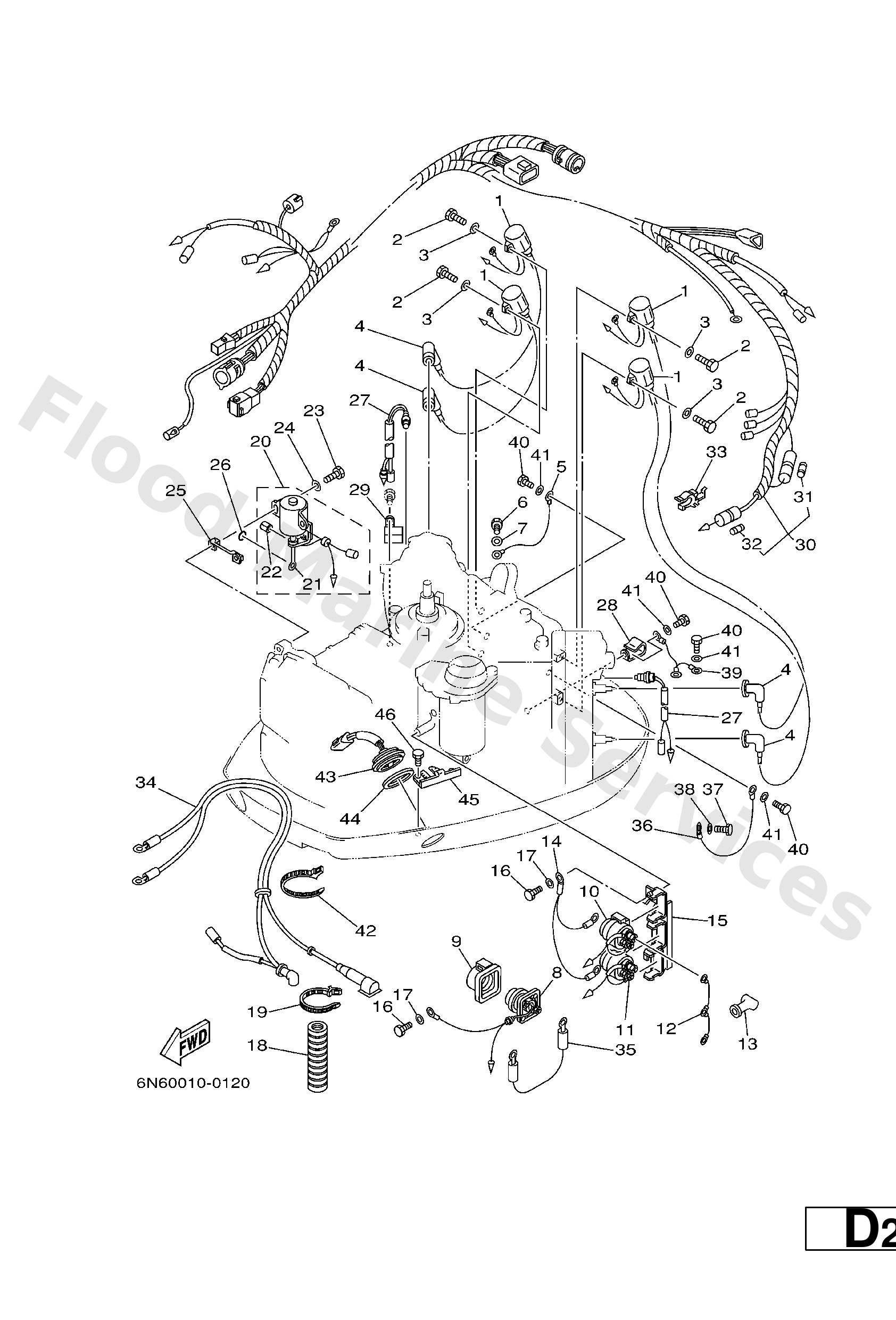

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6R38557001
Ignition coil assembly
Loading…
↗
2
9709506020
Bolt(7u8)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
6G18237021
Plug cap assembly
Loading…
↗
5
6628251900
Wire, earth lead
Loading…
↗
6
9709506012
Bolt(gh1)
Loading…
↗
8
61A8194100
Starter relay assembly
Loading…
↗
9
6898195210
Holder, starter relay
Loading…
↗
10
6E58195000
Relay assembly
Loading…
↗
11
6E58195A00
Relay assembly
Loading…
↗
12
6G58714910
Connector
Loading…
↗
13
6G58211900
Cover, lead wire
Loading…
↗
14
6E58211600
Wire, minus lead
Loading…
↗
15
6E58194822
Bracket
Loading…
↗
16
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
6N78355700
I.DIA.) 22MM
Tube
Loading…
↗
19
9046513M18
Clamp
Loading…
↗
20
6N78611000
Solenoid
Loading…
↗
21
6N78611600
Wire, pull
Loading…
↗
22
9160930010
Pin, spring (663)
Loading…
↗
23
9709506030
Bolt(jf7)
Loading…
↗
25
6N78611200
Stay, solenoid
Loading…
↗
26
9321003261
O-ring (663)
Loading…
↗
27
6888256010
Thermo switch assembly
Loading…
↗
28
9046505M87
Clamp
Loading…
↗
29
9046508M89
Clamp
Loading…
↗
30
6N78259014
-
Loading…
↗
31
6638215100
Fuse
Loading…
↗
32
7058215100
Fuse (30a)
Loading…
↗
33
6G58215200
Holder, fuse
Loading…
↗
34
6N78210502
Battery cable
Loading…
↗
35
6E58211701
Wire, lead
Loading…
↗
36
6R38251900
Wire, earth lead
Loading…
↗
39
6E58253110
Wire, lead
Loading…
↗
43
6R38256300
Trim & tilt switch assembly
Loading…
↗
44
6E58258700
Gasket
Loading…
↗
45
6R38361400
Bracket
Loading…
↗
