130BETO (2003)
ELECTRICAL 2

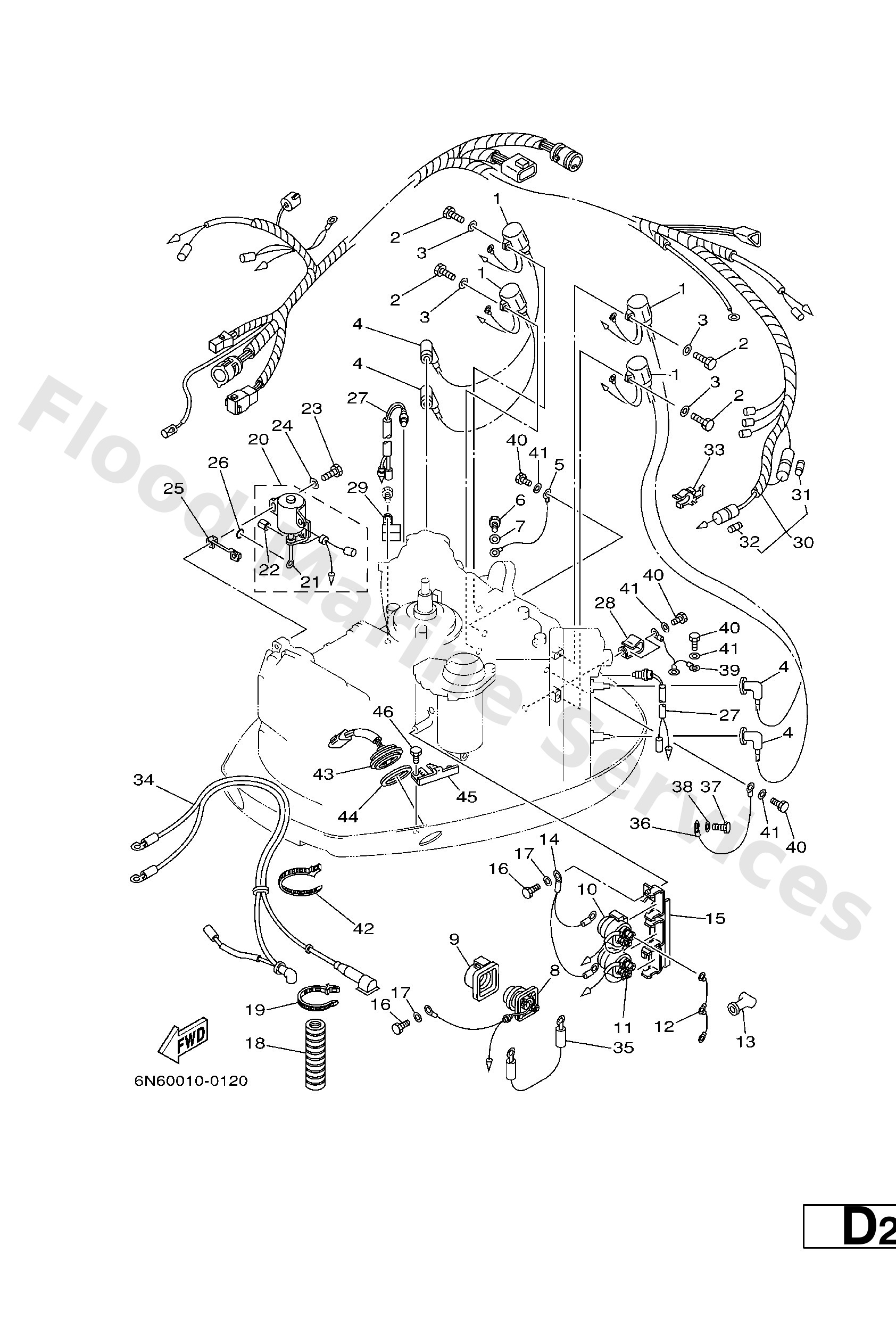

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6R3−85570−01
Ignition coil assembly
Loading…
↗
2
97095−06020
Bolt(7u8)
Loading…
↗
3
92995−06600
Washer, plain (646)
Loading…
↗
4
6G1−82370−21
Plug cap assembly
Loading…
↗
5
662−82519−00
Wire, earth lead
Loading…
↗
6
97095−06012
Bolt(gh1)
Loading…
↗
8
61A−81941−00
Starter relay assembly
Loading…
↗
9
689−81952−10
Holder, starter relay
Loading…
↗
10
6E5−81950−00
Relay assembly
Loading…
↗
11
6E5−8195A−00
Relay assembly
Loading…
↗
12
6G5−87149−10
Connector
Loading…
↗
13
6G5−82119−00
Cover, lead wire
Loading…
↗
14
6E5−82116−00
Wire, minus lead
Loading…
↗
15
6E5−81948−22
Bracket
Loading…
↗
16
97095−06016
Bolt, hexagon deep recess
Loading…
↗
18
6N7−83557−00
I.DIA.) 22MM
Tube
Loading…
↗
19
90465−13M18
Clamp
Loading…
↗
20
6N7−86110−00
Solenoid
Loading…
↗
21
6N7−86116−00
Wire, pull
Loading…
↗
22
91609−30010
Pin, spring (663)
Loading…
↗
23
97095−06030
Bolt(jf7)
Loading…
↗
25
6N7−86112−00
Stay, solenoid
Loading…
↗
26
93210−03261
O-ring (663)
Loading…
↗
27
688−82560−10
Thermo switch assembly
Loading…
↗
28
90465−05M87
Clamp
Loading…
↗
29
90465−08M89
Clamp
Loading…
↗
30
6N7−82590−14
13 −
Loading…
↗
31
663−82151−00
Fuse
Loading…
↗
32
705−82151−00
Fuse (30a)
Loading…
↗
33
6G5−82152−00
Holder, fuse
Loading…
↗
34
6N7−82105−02
Battery cable
Loading…
↗
35
6E5−82117−01
Wire, lead
Loading…
↗
36
6R3−82519−00
Wire, earth lead
Loading…
↗
39
6E5−82531−10
Wire, lead
Loading…
↗
43
6R3−82563−00
Trim & tilt switch assembly
Loading…
↗
44
6E5−82587−00
Gasket
Loading…
↗
45
6R3−83614−00
Bracket
Loading…
↗
