175DETO (2002)
ELECTRICAL 2

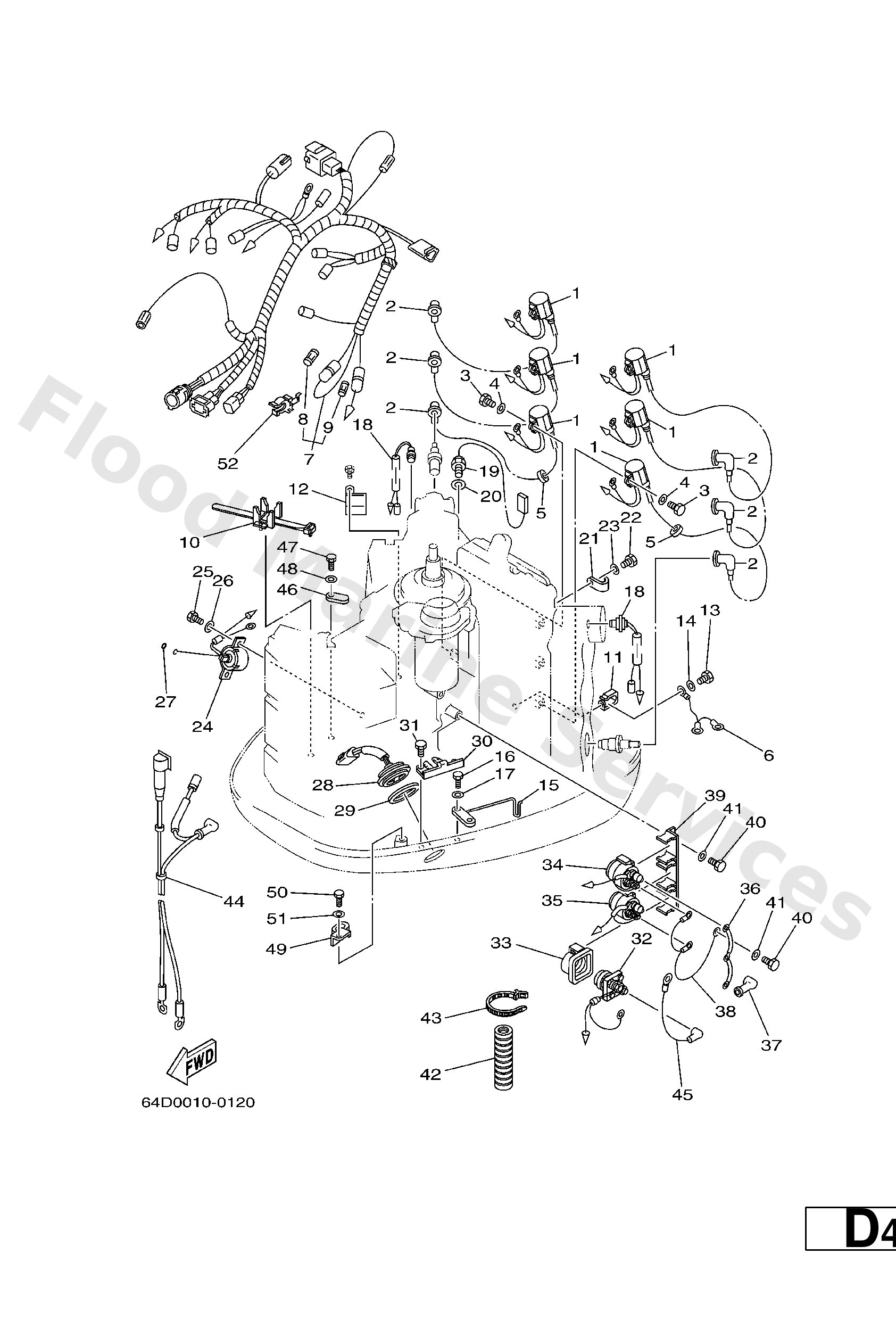

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6R38557001
Ignition coil assembly
Loading…
↗
2
6E38237021
Plug cap assembly
Loading…
↗
3
9709506020
Bolt(7u8)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9048025161
Grommet(656)
Loading…
↗
6
6E58253110
Wire, lead
Loading…
↗
7
64D8259000
Wire harness assembly
Loading…
↗
8
6638215100
Fuse
Loading…
↗
9
7058215100
Fuse (30a)
Loading…
↗
10
6888259400
Clamp
Loading…
↗
11
9046505M87
Clamp
Loading…
↗
12
9046508M89
Clamp
Loading…
↗
13
9709506012
Bolt(gh1)
Loading…
↗
15
6K78258800
Plate
Loading…
↗
18
6888256010
Thermo switch assembly
Loading…
↗
19
61A8579000
Thermosensor assembly
Loading…
↗
20
9299010600
Washer, plate
Loading…
↗
21
9046506M86
Clamp
Loading…
↗
24
64D8611000
Solenoid
Loading…
↗
25
9709506016
Bolt, hexagon deep recess
Loading…
↗
27
9321003261
O-ring (663)
Loading…
↗
28
6R38256300
Trim & tilt switch assembly
Loading…
↗
29
6E58258700
Gasket
Loading…
↗
30
6R38361400
Bracket
Loading…
↗
32
61A8194100
Starter relay assembly
Loading…
↗
33
6898195210
Holder, starter relay
Loading…
↗
34
6E58195000
Relay assembly
Loading…
↗
35
6E58195A00
Relay assembly
Loading…
↗
36
6G58714910
Connector
Loading…
↗
37
6G58211900
Cover, lead wire
Loading…
↗
38
6E58211600
Wire, minus lead
Loading…
↗
39
6G58194811
Bracket
Loading…
↗
42
6E98355770
-
Loading…
↗
43
9046513M18
Clamp
Loading…
↗
44
6R38210502
Battery cable
Loading…
↗
45
6E58211701
Wire, lead
Loading…
↗
46
6E58258800
Plate
Loading…
↗
49
9046512M25
Clamp (6e5)
Loading…
↗
52
6G58215200
Holder, fuse
Loading…
↗
