200GETO (2003)
ELECTRICAL 2

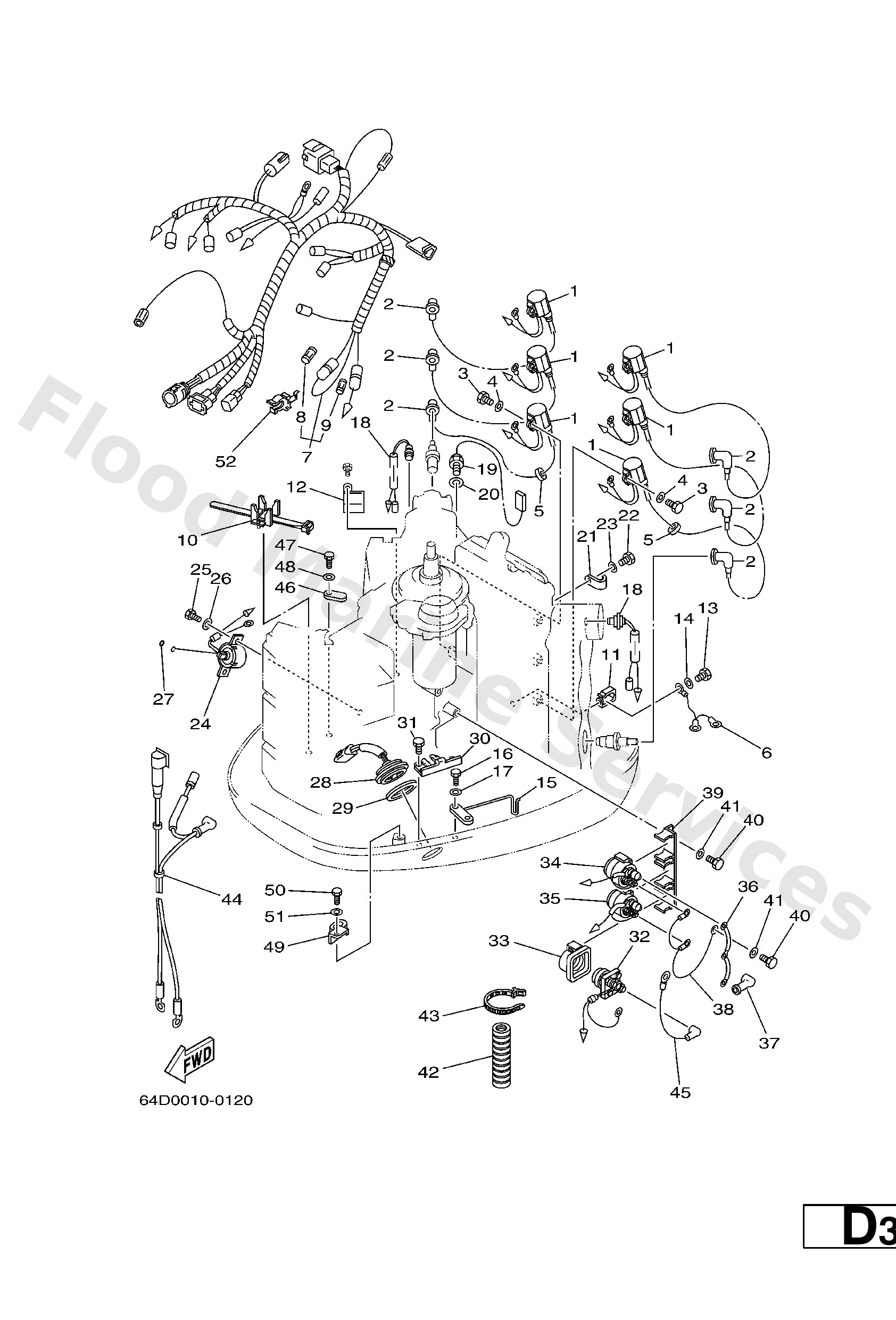

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6R3−85570−01
Ignition coil assembly
Loading…
↗
2
6E3−82370−21
Plug cap assembly
Loading…
↗
3
97095−06020
Bolt(7u8)
Loading…
↗
4
92995−06600
Washer, plain (646)
Loading…
↗
5
90480−25161
Grommet(656)
Loading…
↗
6
6E5−82531−10
Wire, lead
Loading…
↗
7
64D−82590−00
Wire harness assembly
Loading…
↗
8
663−82151−00
Fuse
Loading…
↗
9
705−82151−00
Fuse (30a)
Loading…
↗
10
688−82594−00
Clamp
Loading…
↗
11
90465−05M87
Clamp
Loading…
↗
12
90465−08M89
Clamp
Loading…
↗
13
97095−06012
Bolt(gh1)
Loading…
↗
15
6K7−82588−00
Plate
Loading…
↗
18
688−82560−10
Thermo switch assembly
Loading…
↗
19
61A−85790−00
Thermosensor assembly
Loading…
↗
20
92990−10600
Washer, plate
Loading…
↗
21
90465−06M86
Clamp
Loading…
↗
24
64E−86110−00
Solenoid
Loading…
↗
25
97095−06016
Bolt, hexagon deep recess
Loading…
↗
27
93210−03261
O-ring (663)
Loading…
↗
28
6R3−82563−00
Trim & tilt switch assembly
Loading…
↗
29
6E5−82587−00
Gasket
Loading…
↗
30
6R3−83614−00
Bracket
Loading…
↗
32
61A−81941−00
Starter relay assembly
Loading…
↗
33
689−81952−10
Holder, starter relay
Loading…
↗
34
6E5−81950−00
Relay assembly
Loading…
↗
35
6E5−8195A−00
Relay assembly
Loading…
↗
36
6G5−87149−10
Connector
Loading…
↗
37
6G5−82119−00
Cover, lead wire
Loading…
↗
38
6E5−82116−00
Wire, minus lead
Loading…
↗
39
6G5−81948−11
Bracket
Loading…
↗
42
6E9−83557−70
Tube
Loading…
↗
43
90465−13M18
Clamp
Loading…
↗
44
6R3−82105−02
Battery cable
Loading…
↗
45
6K7−82117−00
Wire, lead
Loading…
↗
46
6E5−82588−00
Plate
Loading…
↗
49
90465−12M25
Clamp (6e5)
Loading…
↗
52
6G5−82152−00
Holder, fuse
Loading…
↗
