250AETO (2002)
ELECTRICAL 2

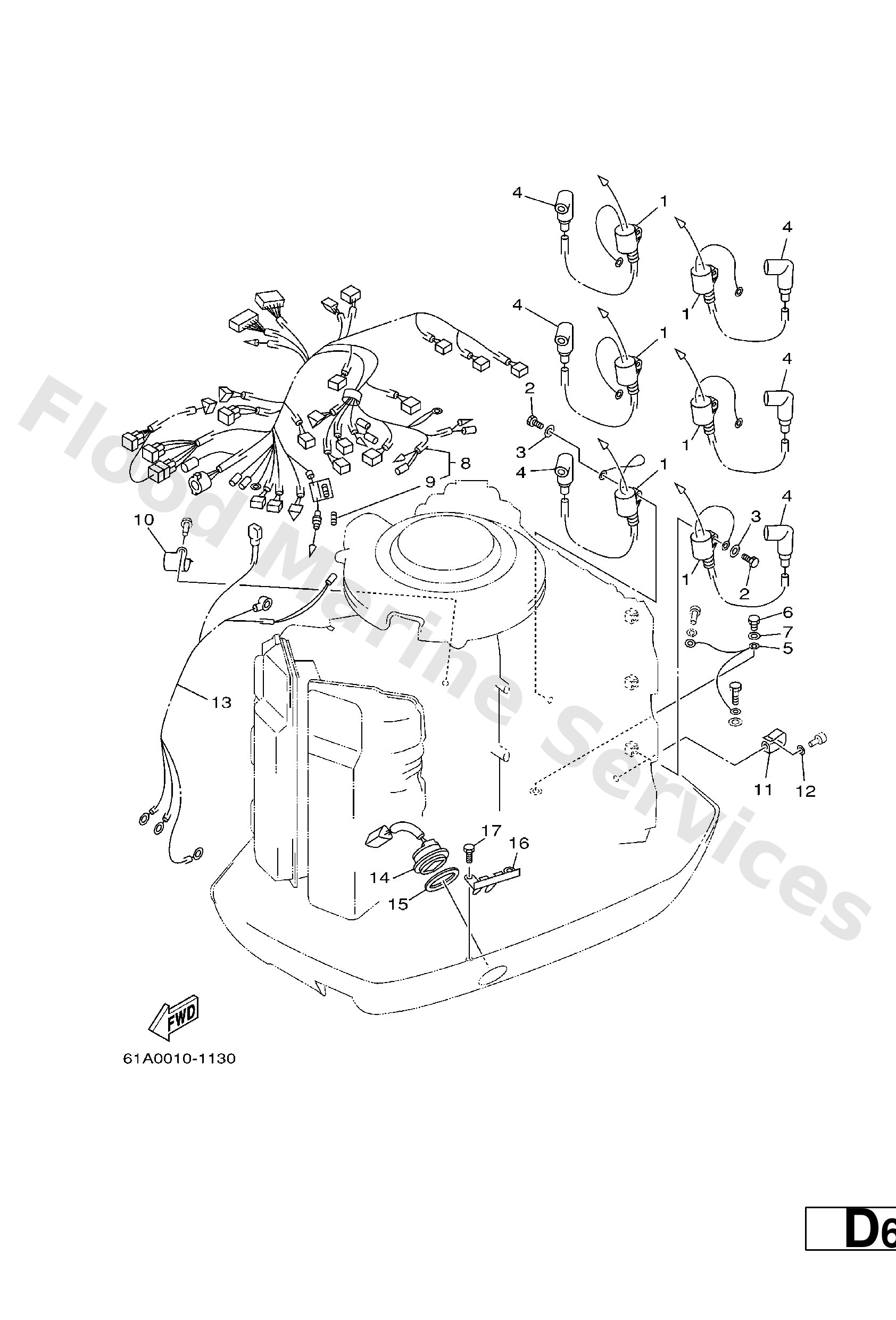

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
61A−85570−00
Ignition coil assembly
Loading…
↗
2
97013−06020
Bolt(62y)
Loading…
↗
3
92903−06600
Washer, plain (646)
Loading…
↗
4
6E3−82370−21
Plug cap assembly
Loading…
↗
5
61A−82531−00
Wire, lead
Loading…
↗
6
97095−06012
Bolt(gh1)
Loading…
↗
7
92995−06600
Washer, plain (646)
Loading…
↗
8
61A−82590−10
Wire Harness assembly
Loading…
↗
9
663−82151−00
Fuse
Loading…
↗
10
90465−08M89
Clamp
Loading…
↗
11
90465−05M87
Clamp
Loading…
↗
13
61A−82105−00
Battery cable
Loading…
↗
14
61A−82563−00
Trim & tilt switch assembly
Loading…
↗
15
6E5−82587−00
Gasket
Loading…
↗
16
61A−83614−00
Bracket
Loading…
↗
