25NMHO (2010)
ELECTRICAL 2

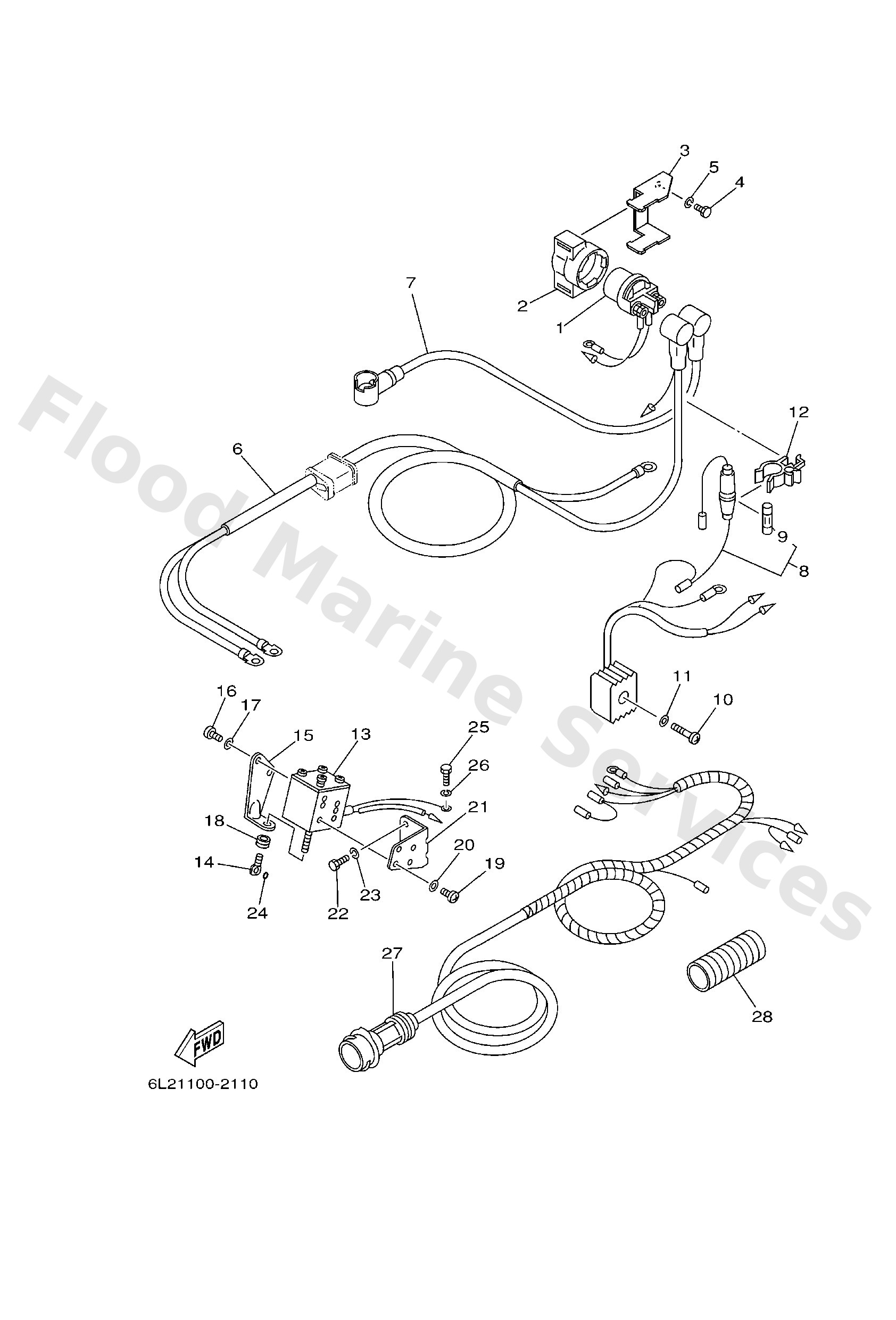

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6G18194110
Starter relay
Loading…
↗
2
6G18195200
Holder, relay
Loading…
↗
3
6L28194500
Plate, switch fitting
Loading…
↗
4
9709506012
Bolt(gh1)
Loading…
↗
5
9299506100
Washer(6a1)
Loading…
↗
6
6G18210501
Battery cable
Loading…
↗
7
6G18211700
Wire, lead
Loading…
↗
8
6G18197062
Rectifier assembly
Loading…
↗
9
6G18215100
Fuse (10a)
Loading…
↗
10
9788005025
Screw, panhead (a93)
Loading…
↗
11
9299005600
Washer, plain (646)
Loading…
↗
12
6G58215200
Holder, fuse
Loading…
↗
13
6L28611100
Coil, solenoid
Loading…
↗
14
6828611700
Hook, wire pull
Loading…
↗
15
6L28611500
Holder, solenoid
Loading…
↗
16
9788005008
Screw, with washer
Loading…
↗
18
9048010155
Grommet(664)
Loading…
↗
19
9788004008
Screw, pan head (713)
Loading…
↗
20
9299004600
Washer, plain (646)
Loading…
↗
21
6L28611200
Stay, solenoid
Loading…
↗
24
9321003261
O-ring (663)
Loading…
↗
27
6L28259000
Wire harness assembly
Loading…
↗
28
6K38355700
Tube
Loading…
↗
