30DMHO (1999)
ELECTRICAL 2

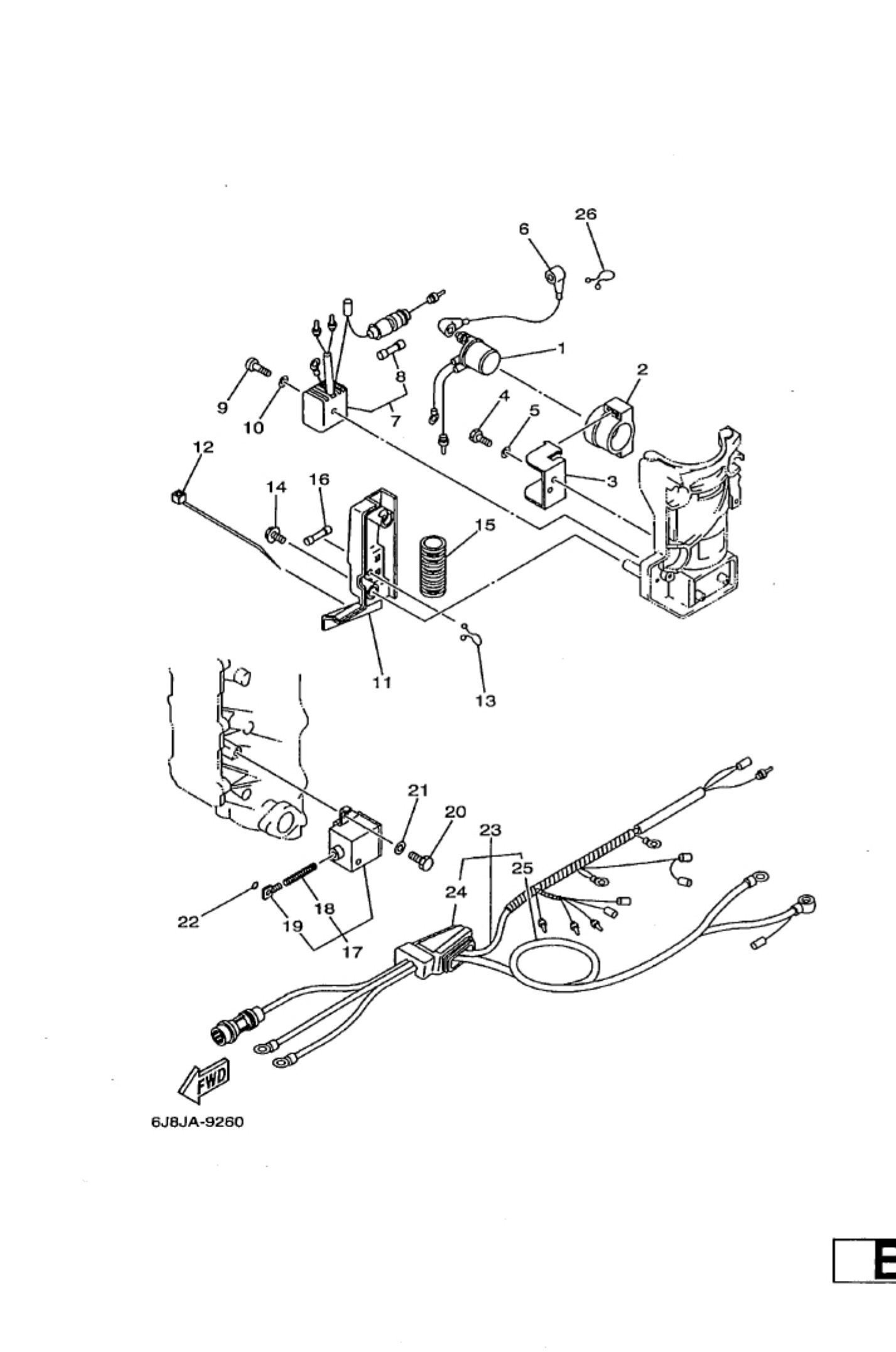

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6G18194110
Starter relay
Loading…
↗
3
688194500
Plate, Switch Fitting
Loading…
↗
4
9701306016
Bolt, hexagon deep recess
Loading…
↗
5
9290306600
Washer, plain (646)
Loading…
↗
6
6F58211700
Wire, lead
Loading…
↗
7
6G18197061
Rectifier assembly
Loading…
↗
8
6G18215100
Fuse (10a)
Loading…
↗
9
9788005025
Screw, panhead (a93)
Loading…
↗
10
9299005600
Washer, plain (646)
Loading…
↗
11
6J86191610
Cover, Terminal
Loading…
↗
12
9046513M18
Clamp
Loading…
↗
13
9046518147
Clamp
Loading…
↗
14
9015905M26
Screw, with washer(6g7)
Loading…
↗
15
6E98355770
-
Loading…
↗
17
6J88611000
Solenoid
Loading…
↗
18
6J88611600
Wire, pull
Loading…
↗
19
6828611700
Hook, wire pull
Loading…
↗
22
9321003261
O-ring (663)
Loading…
↗
23
6J88256000
Wire Harness assembly 2
Loading…
↗
24
684272450
“Grommet
Loading…
↗
24
6J8JA9260
WIRE HARNESS
25 689-82105-13
