30DMHO (2003)
ELECTRICAL 2

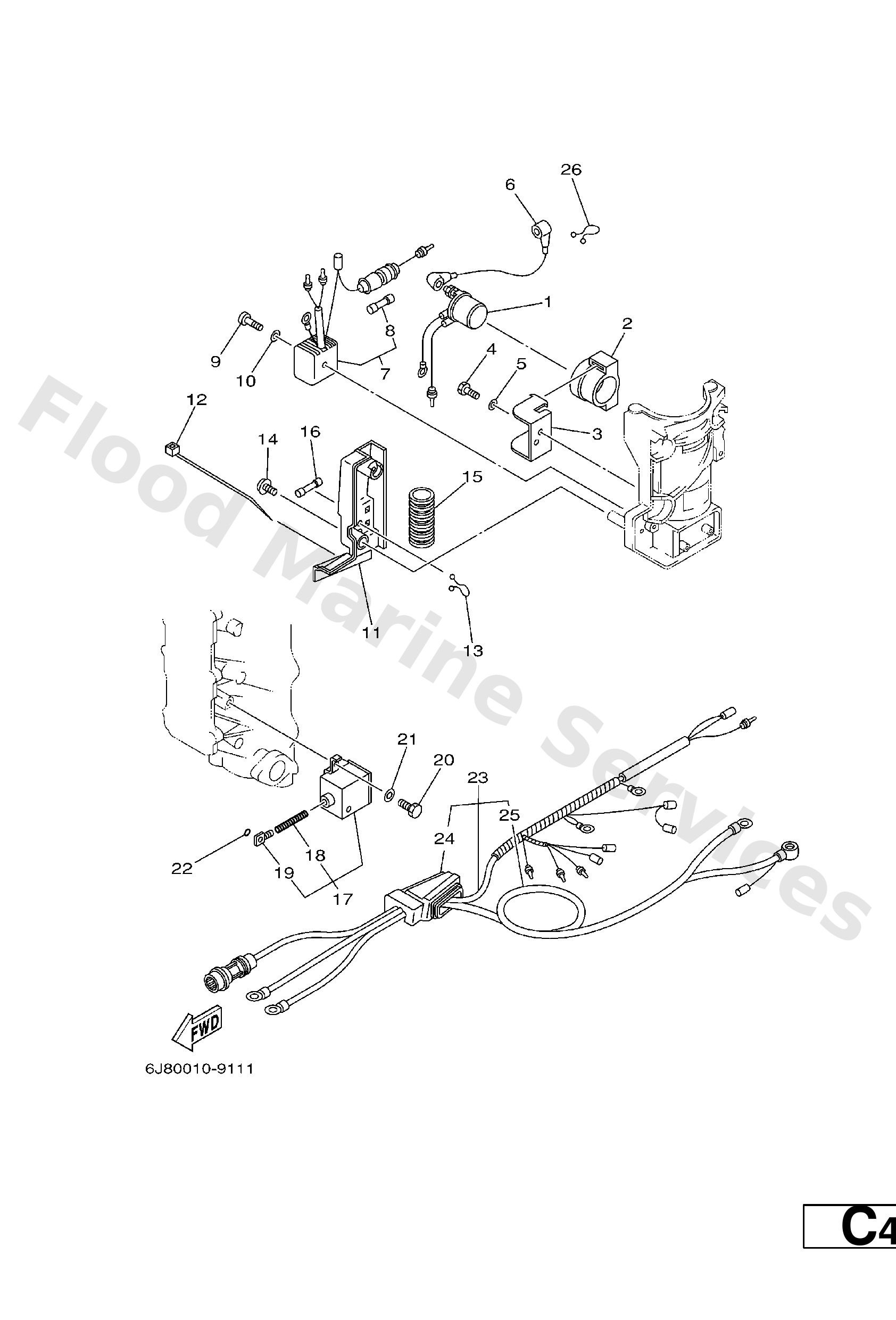

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6G1−81941−10
Starter relay
Loading…
↗
2
6G1−81952−00
Holder, relay
Loading…
↗
3
6J8−81945−00
Plate, switch fitting
Loading…
↗
4
97013−06016
Bolt, hexagon deep recess
Loading…
↗
5
92903−06600
Washer, plain (646)
Loading…
↗
6
6F5−82117−00
Wire, lead
Loading…
↗
7
6G1−81970−61
Rectifier assembly
Loading…
↗
8
6G1−82151−00
Fuse (10a)
Loading…
↗
9
97880−05025
Screw, panhead (a93)
Loading…
↗
10
92990−05600
Washer, plain (646)
Loading…
↗
11
6J8−81916−10
Cover, terminal
Loading…
↗
12
90465−13M18
Clamp
Loading…
↗
13
90465−18147
Clamp
Loading…
↗
14
90159−05M26
Screw, with washer(6g7)
Loading…
↗
15
6E9−83557−70
Tube
Loading…
↗
16
6H3−82151−00
Fuse (10a)
Loading…
↗
17
6J8−86110−00
Solenoid
Loading…
↗
18
6J8−86116−00
Wire, pull
Loading…
↗
19
682−86117−00
Hook, wire pull
Loading…
↗
22
93210−03261
O-ring (663)
Loading…
↗
23
6J8−82580−00
Wire harness assembly 2
Loading…
↗
24
6J8−42724−50
Grommet
Loading…
↗
25
689−82105−13
Battery cable
Loading…
↗
26
90464−15M11
Clamp (3y2)
Loading…
↗
