30HWH (2005)
ELECTRICAL 2

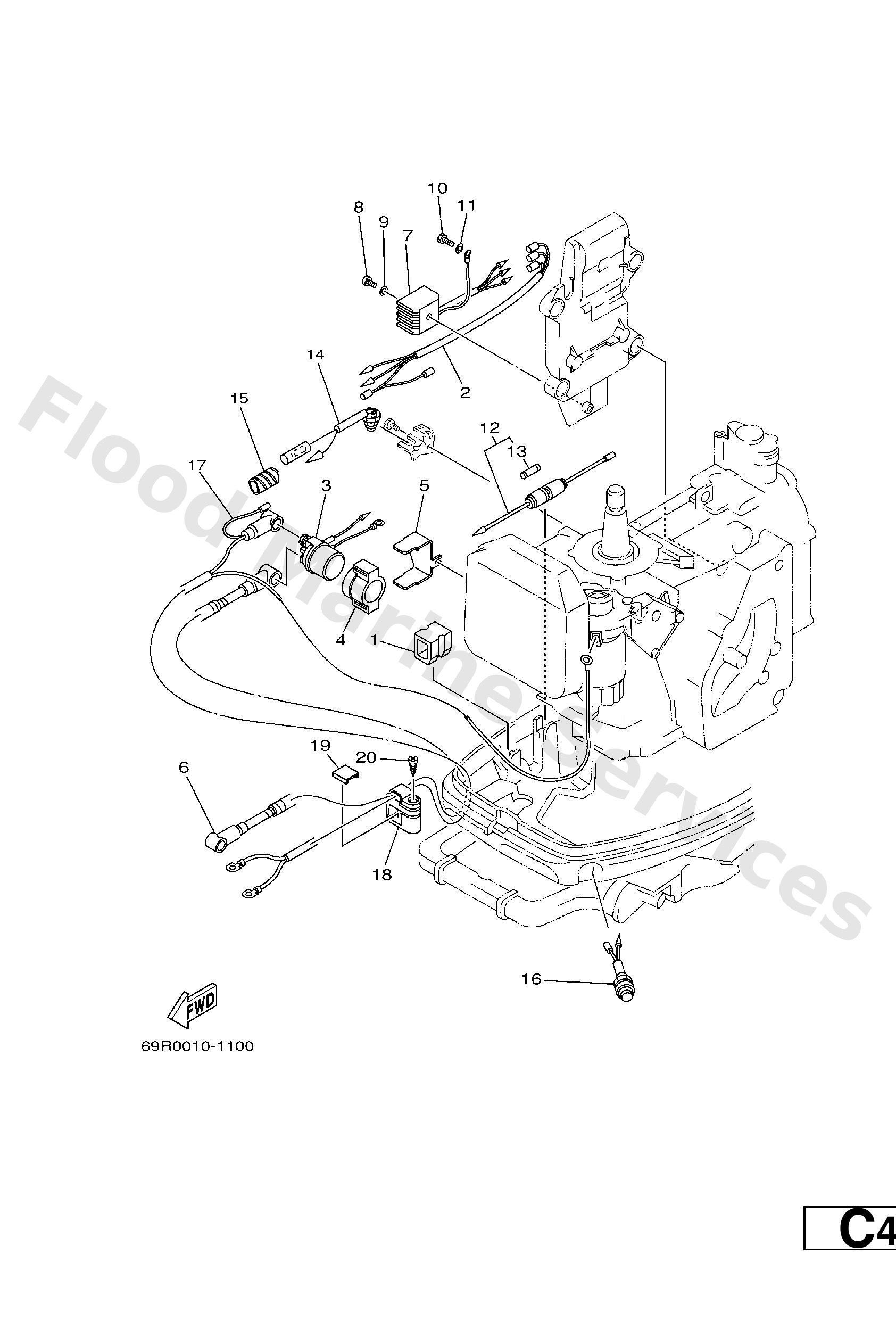

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
9048017M08
Grommet (689)
Loading…
↗
2
6898197100
Wire, lead
Loading…
↗
3
6G18194110
Starter relay
Loading…
↗
4
6G18195200
Holder, relay
Loading…
↗
5
61T8194501
Plate, switch fitting
Loading…
↗
6
6898253102
Wire, lead
Loading…
↗
7
6648197061
Rectifier assembly
Loading…
↗
8
9788005025
Screw, panhead (a93)
Loading…
↗
9
9299005600
Washer, plain (646)
Loading…
↗
10
9709006012
Bolt(gh1)
Loading…
↗
11
9299006100
Washer(6a1)
Loading…
↗
12
6828215010
Fuse holder assembly
Loading…
↗
13
6638215100
Fuse
Loading…
↗
14
6898254001
Neutral switch ass'y
Loading…
↗
15
9044610M02
Tube (6e5)
Loading…
↗
16
6898187000
Starting switch assembly
Loading…
↗
17
6898210513
Battery cable
Loading…
↗
18
6898259400
Clamp
Loading…
↗
19
6824252500
Plate, friction 1
Loading…
↗
20
9016106M00
Screw, tapping(6e7)
Loading…
↗
