Yamaha Outboard Parts - ELECTRICAL 2 - 40JMH (2003) | Flood Marine

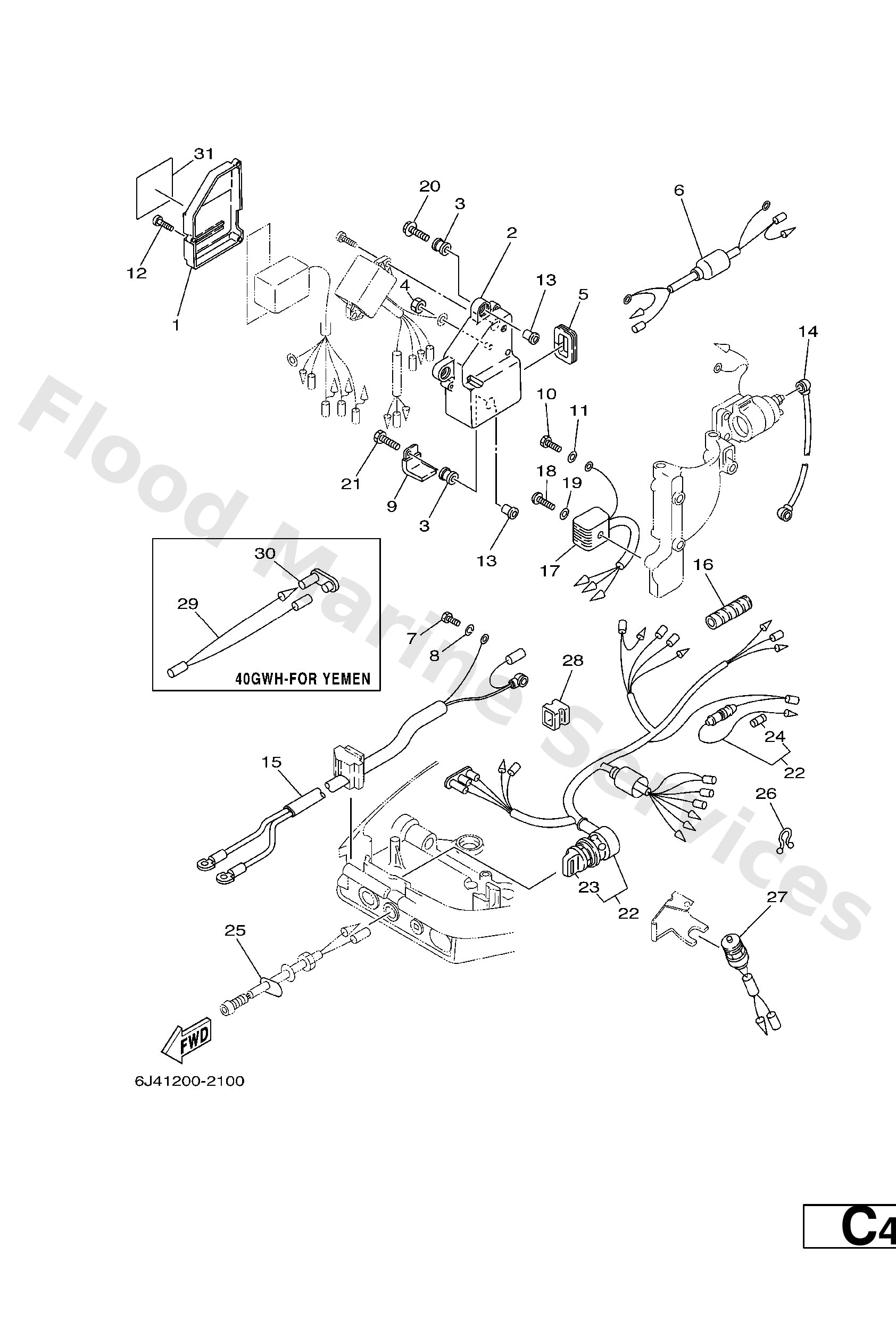

Diagram: ELECTRICAL 2

Diagram

Parts List

Reference
Description
Price


1
6F5−81916−40
10 −
Loading…

↗
2
6F5−85542−40
Bracket
Loading…

↗
3
6A0−82317−00
Damper, ignition coil
Loading…

↗
4
95380−06600
Nut(661)
Loading…

↗
5
6F5−81922−40
10 −
Loading…

↗
6
6F5−82519−10
10 −
Loading…

↗
7
97095−08016
Bolt, hexagon deep recess
Loading…

↗
8
92995−08100
Ybs67-8 washer, spring
Loading…

↗
9
90465−06M16
Clamp
Loading…

↗
10
97013−06016
Bolt, hexagon deep recess
Loading…

↗
11
92903−06600
Washer, plain (646)
Loading…

↗
12
90164−05M00
Screw, tapping (6f5)
Loading…

↗
13
624−42542−00
Collar
Loading…

↗
14
6F5−82117−00
Wire, lead
Loading…

↗
15
6F5−82105−00
Battery cable
Loading…

↗
16
90446−10M02
Tube (6e5)
Loading…

↗
17
6F5−81970−61
Rectifier assembly
Loading…

↗
18
97880−05025
Screw, panhead (a93)
Loading…

↗
19
92990−05600
Washer, plain (646)
Loading…

↗
20
90119−06M88
Bolt, with washer
Loading…

↗
21
97095−06025
Bolt
Loading…

↗
22
6F5−82510−02
10 −
Loading…

↗
23
676−82577−00
Cap, key
Loading…

↗
24
663−82151−00
Fuse
Loading…

↗
25
6E9−85414−40 40JWH
Holder, Overheat Warning Lamp
Loading…

↗
26
90465−18147
Clamp
Loading…

↗
27
6F5−82540−00
Neutral switch assembly
Loading…

↗
28
90480−17M08
Grommet (689)
Loading…

↗
29
6F6−82509−00 40GWH−FOR YEMEN
10 −
Loading…

↗
30
6A0−82119−00 40GWH−FOR YEMEN
Cover, lead wire
Loading…

↗
31
6F5−83622−60 40JWH
Mark 2
Loading…

↗
