40VMHO (2011)
ELECTRICAL 2

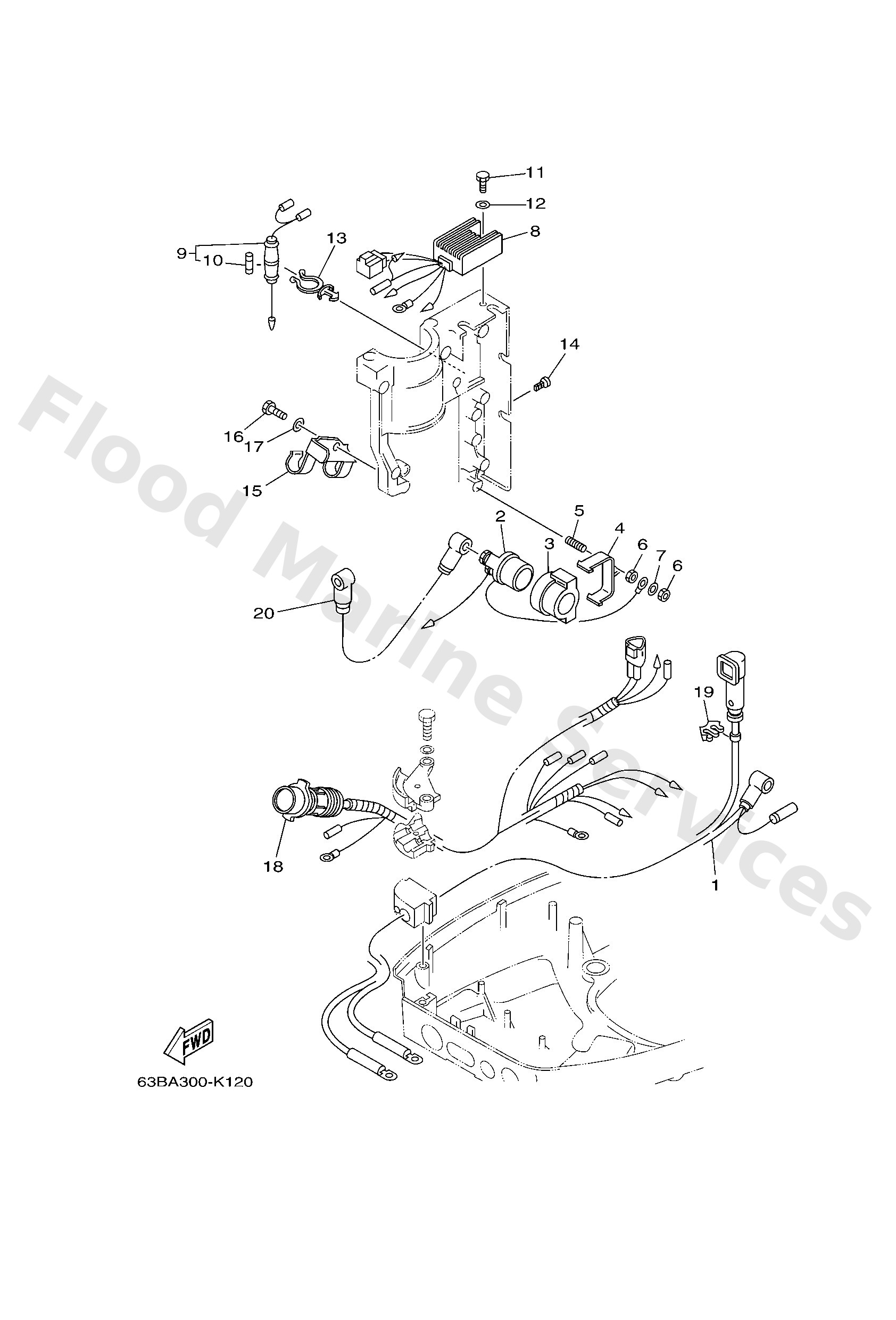

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6H48210502
Battery cable
Loading…
↗
2
6G18194110
Starter relay
Loading…
↗
3
6H48195200
Holder, relay
Loading…
↗
4
6H48194500
Plate, switch fitting
Loading…
↗
5
9011606M22
Bolt, stud (6h1)
Loading…
↗
6
9538006600
Nut(661)
Loading…
↗
7
9299006600
Washer, plain (646)
Loading…
↗
8
6H28196010
Rectifier & regulator assembly
Loading…
↗
9
6H48215000
Fuse holder assembly
Loading…
↗
10
6638215100
Fuse
Loading…
↗
11
9709506014
Bolt(gj3)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
9046415M27
Clamp(6h4)
Loading…
↗
14
9033805M11
Plug(6h4)
Loading…
↗
15
63D8259400
Clamp
Loading…
↗
16
9709506012
Bolt(gh1)
Loading…
↗
18
63D8259010
Wire harness assembly
Loading…
↗
19
9046407M20
Clamp(6h0)
Loading…
↗
20
6H48211700
Wire, lead
Loading…
↗
