8CMH (2002)
ELECTRICAL 2

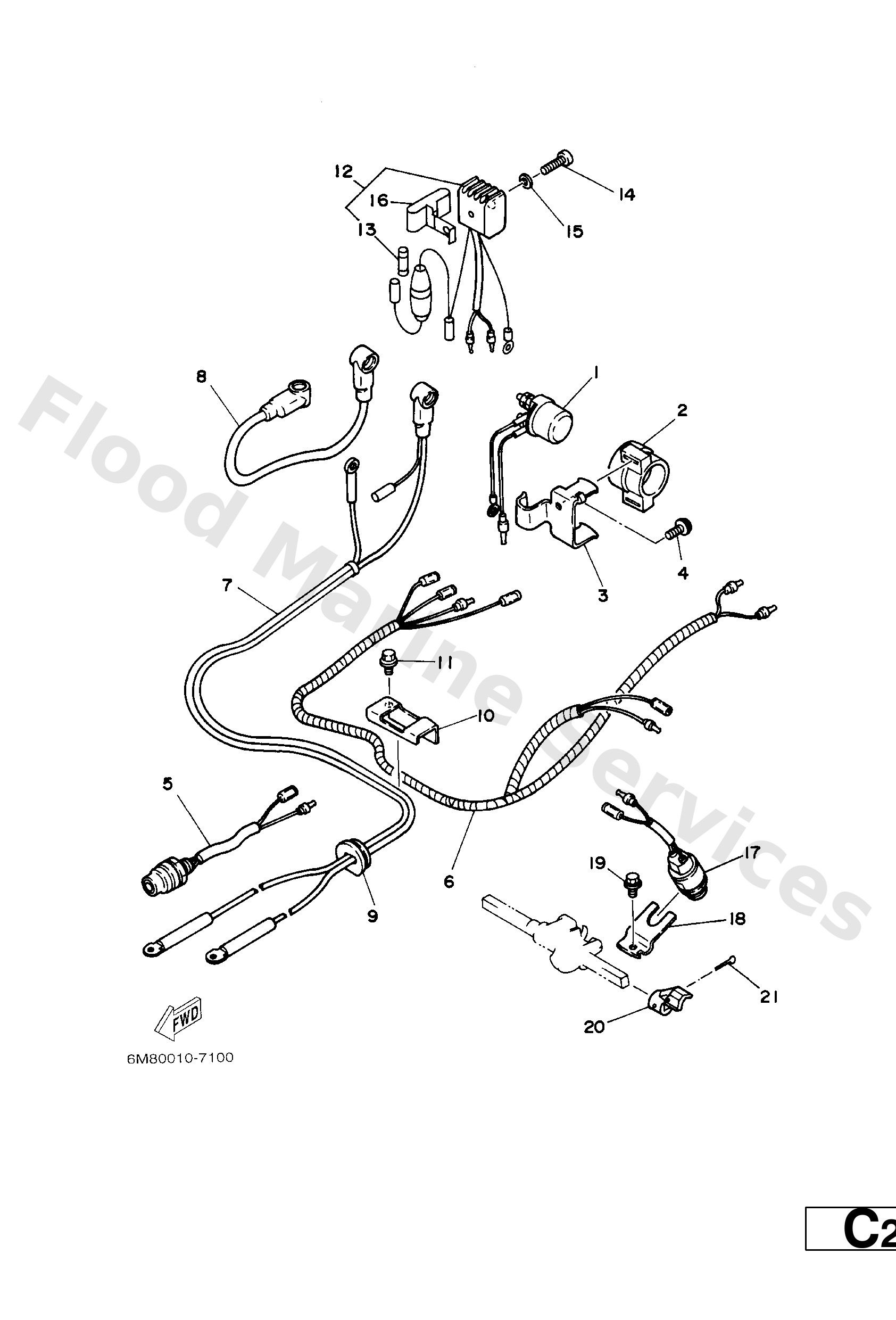

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6G1--81941--10
Starter relay
Loading…
↗
2
6G1--81952--00
Holder, relay
Loading…
↗
3
6G18194500
10 −
Loading…
↗
4
95895--06016
Bolt, flange deep recess
Loading…
↗
5
689--81870--00
Starting switch assembly
Loading…
↗
6
6G18259000
Wire Harness assembly
Loading…
↗
7
6G18210501
Battery cable
Loading…
↗
8
6G18211700
Wire, lead
Loading…
↗
9
6824272440
Grommet
Loading…
↗
10
6G18236200
10 −
Loading…
↗
11
95895--06010
Bolt, flange(7ht)
Loading…
↗
12
6G1--81970--61
Rectifier assembly
Loading…
↗
13
6G1--82151--00
Fuse (10a)
Loading…
↗
14
97880--05025
Screw, panhead (a93)
Loading…
↗
15
92990--05600
Washer, plain (646)
Loading…
↗
16
9046508M19
Clamp
Loading…
↗
17
6F5--82540--00
Neutral switch assembly
Loading…
↗
18
6G18255400
10 −
Loading…
↗
20
6G14412500
Lever, Shift Rod
Loading…
↗
21
9149025020
Pin, cotter
Loading…
↗
