E75BED (2025)
ELECTRICAL 2

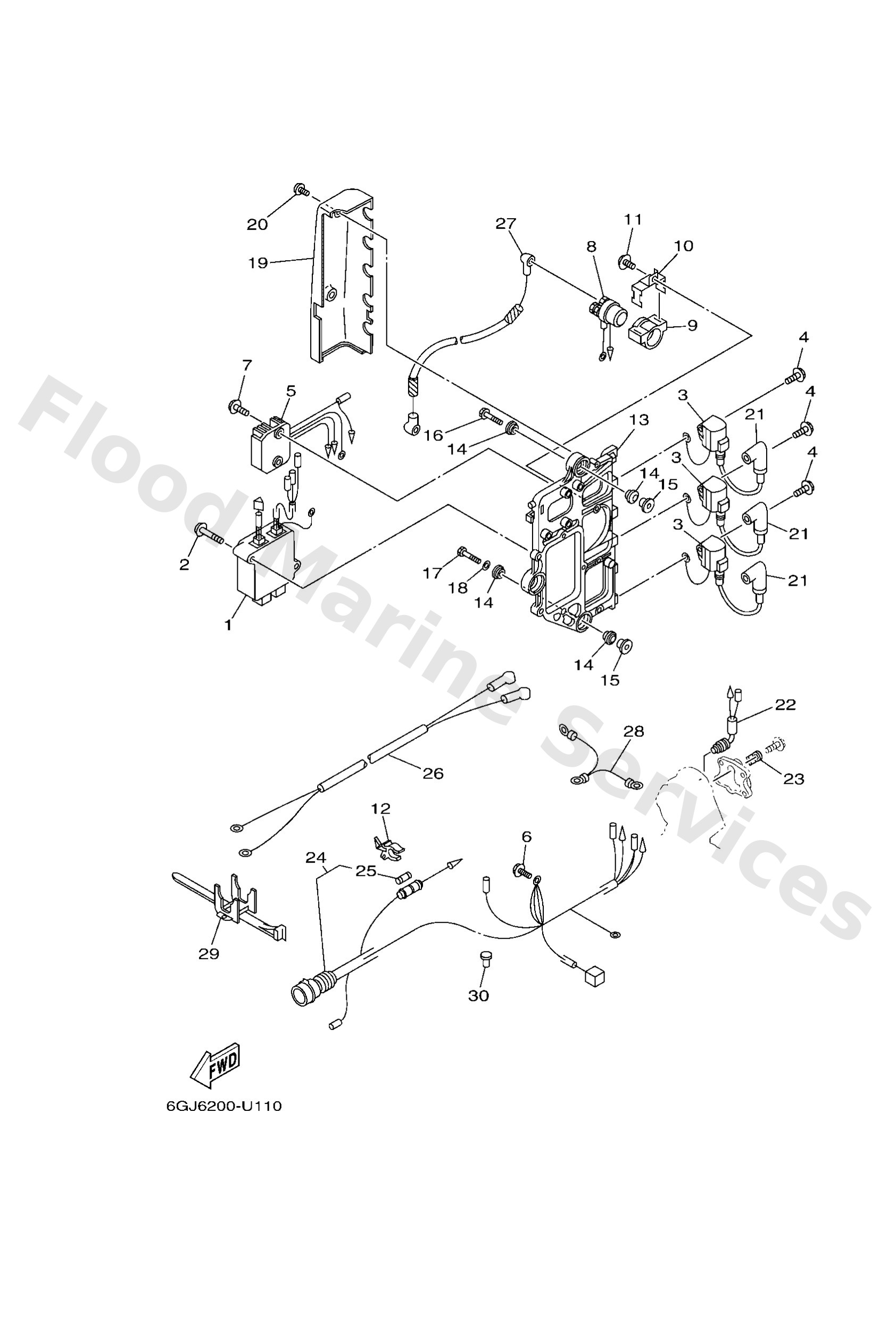

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6888554000
C.d.i. unit assembly
Loading…
↗
2
9798006340
Screw, with washer
Loading…
↗
3
6978557000
Ignition coil assembly
Loading…
↗
4
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
5
6H08196000
Rectifier & regulator assembly
Loading…
↗
6
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
8
6G18194110
Starter relay
Loading…
↗
9
6G18195201
Holder, relay
Loading…
↗
10
6E98194570
Plate, switch fitting
Loading…
↗
11
9751306516
Bolt, hexagon deep recess
Loading…
↗
12
6G58215200
Holder, fuse
Loading…
↗
13
6888554210
Bracket
Loading…
↗
14
9048009M25
Grommet(688)
Loading…
↗
15
9038706M03
Collar (676)
Loading…
↗
16
9011906M75
Bolt, with washer
Loading…
↗
17
9010906M39
Bolt(6h0)
Loading…
↗
18
9020106M31
Washer (6a0)
Loading…
↗
19
6H18191600
Cover, terminal
Loading…
↗
20
9015906M11
Screw, with washer(6l2)
Loading…
↗
21
6638237001
Plug cap assembly
Loading…
↗
22
6888256010
Thermo switch assembly
Loading…
↗
23
6888258801
Plate
Loading…
↗
24
6888259042
Wire Harness assembly (7P)
Loading…
↗
24
6888259052
Wire Harness assembly (10P)
Loading…
↗
25
6638215101
Fuse
Loading…
↗
26
6H08210504
Battery cable
Loading…
↗
27
6H08211701
Wire, lead
Loading…
↗
28
6978251900
Wire,earth lead
Loading…
↗
29
6888259400
Clamp
Loading…
↗
30
7038211901
Cover, lead wire
Loading…
↗
