F100DET (2008)
ELECTRICAL 2

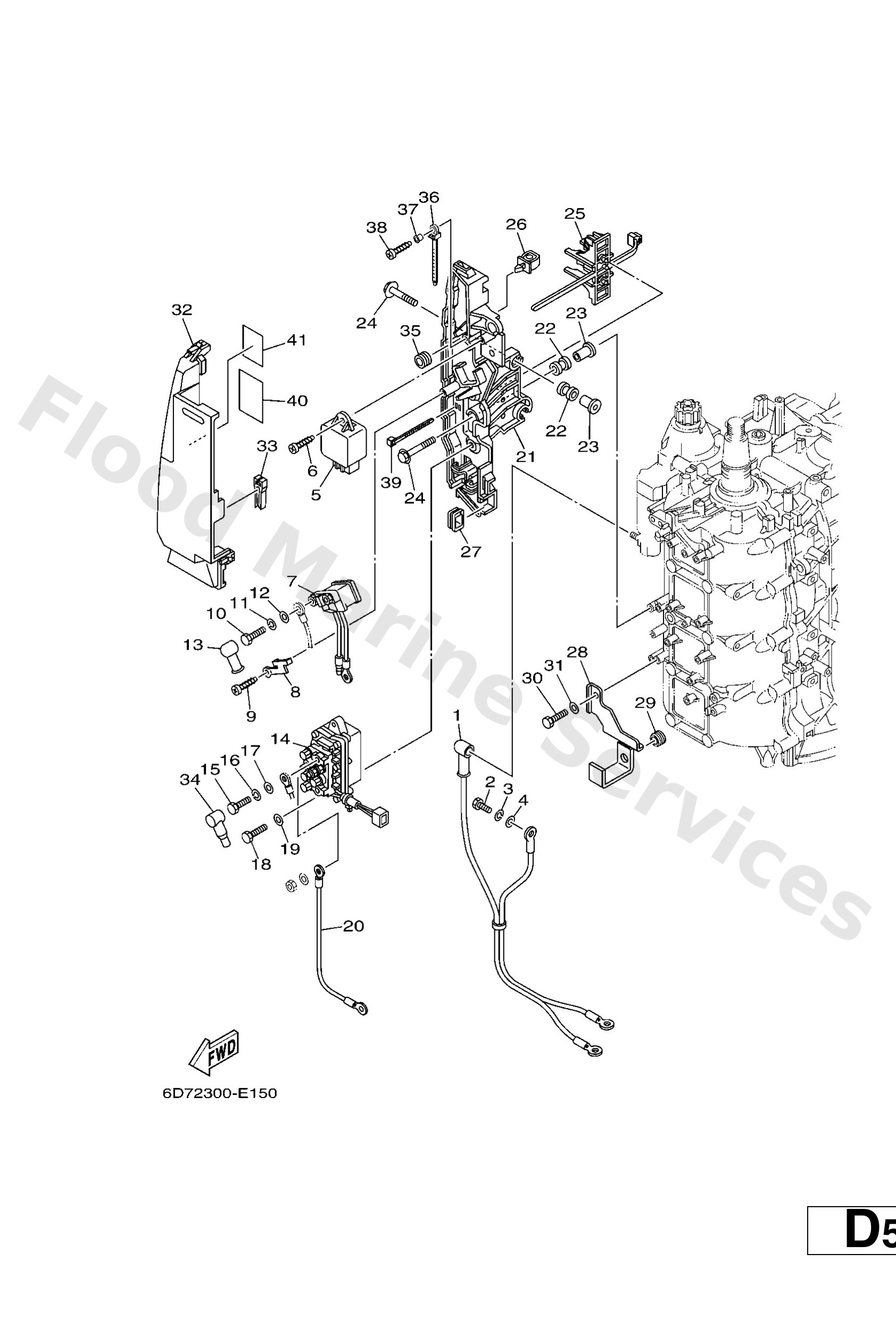

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
68V8210500
Battery cable
Loading…
↗
2
9701306020
Bolt(62y)
Loading…
↗
3
9290306100
Washer(6a1)
Loading…
↗
4
9290306600
Washer, plain (646)
Loading…
↗
5
60E8195000
Relay assembly
Loading…
↗
6
9778060625
Screw, tapping(65j)
Loading…
↗
7
68V8194A00
Relay
Loading…
↗
8
68V8195300
Stay, relay
Loading…
↗
9
9778060620
Screw, tapping(6k8)
Loading…
↗
10
9709506010
Bolt
Loading…
↗
11
9299506100
Washer(6a1)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
6G58211900
Cover, lead wire
Loading…
↗
14
63P8195000
Relay assembly
Loading…
↗
20
61A8194900
Wire, lead
Loading…
↗
21
68V8194802
Bracket
Loading…
↗
22
6A08231700
Damper, ignition coil
Loading…
↗
23
9038706119
Collar
Loading…
↗
24
9011906M59
Bolt, with washer
Loading…
↗
25
68V8259400
Clamp
Loading…
↗
26
9046412M58
Clamp
Loading…
↗
27
6D88151800
Grommet
Loading…
↗
28
6D88152800
Clamp 1
Loading…
↗
29
9048013M24
Grommet (6e9)
Loading…
↗
30
9709506014
Bolt(gj3)
Loading…
↗
32
68V8194203
Cover
Loading…
↗
33
67F2812A00
Puller, fuse
Loading…
↗
34
6828211901
Cover, lead wire
Loading…
↗
36
9046512M53
Clamp(62e)
Loading…
↗
37
9038706M05
Collar(6h4)
Loading…
↗
39
9046513M18
Clamp
Loading…
↗
40
68V8191900
Graphic, regulator
Loading…
↗
41
6D88191900
Graphic, regulator
Loading…
↗
