F130AET (2015)
ELECTRICAL 2

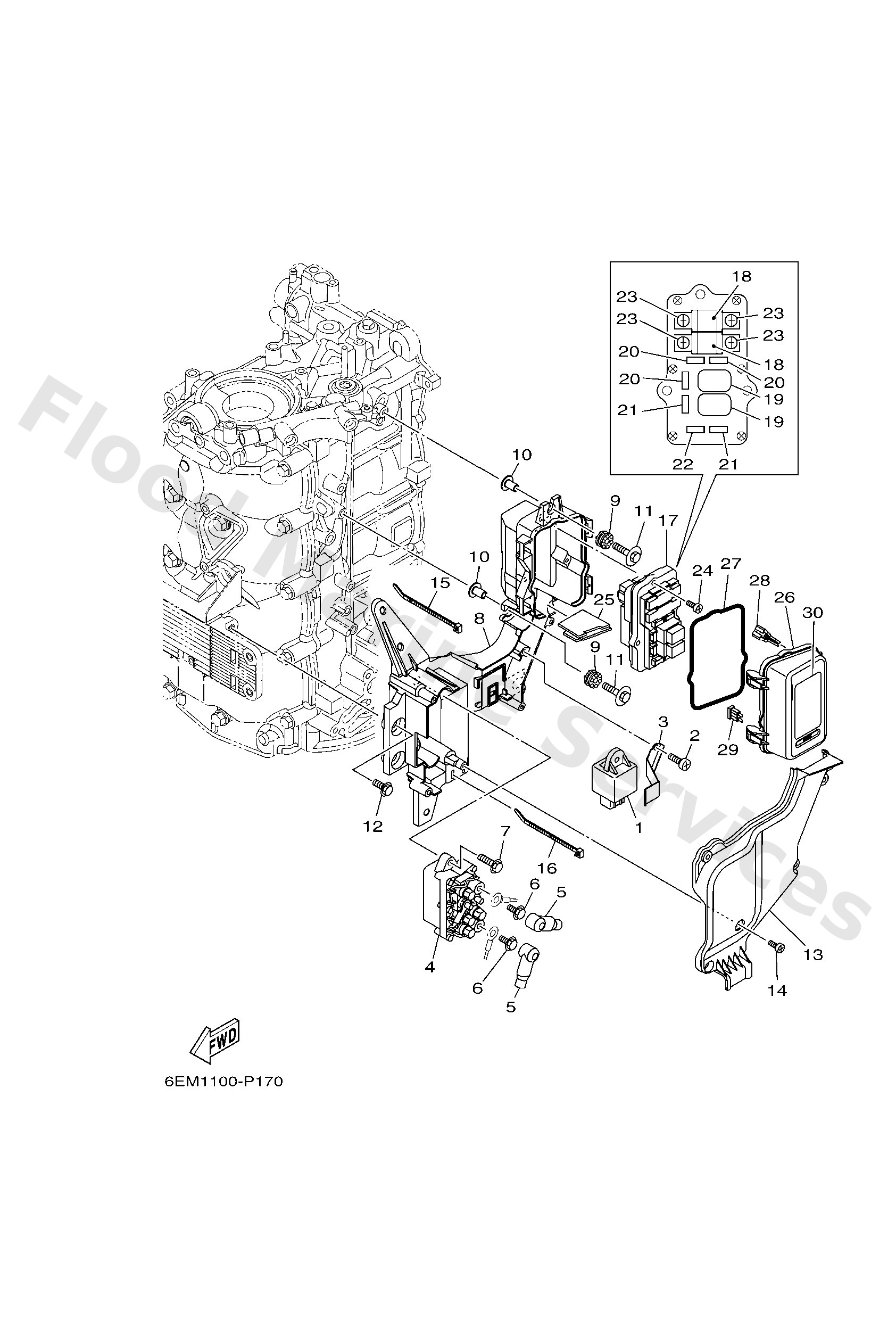

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
68V8195000
Relay assembly
Loading…
↗
2
9778060620
Screw, tapping(6k8)
Loading…
↗
3
6EM8195300
Stay, relay
Loading…
↗
4
63P8195000
Relay assembly
Loading…
↗
5
6828211901
Cover, lead wire
Loading…
↗
6
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
7
9759506520
Bolt(7u8)
Loading…
↗
8
6EK8195200
Holder, relay
Loading…
↗
9
64J8551600
Spacer
Loading…
↗
10
69M4275801
Collar
Loading…
↗
11
9011906M56
Bolt, with washer
Loading…
↗
12
9589506016
Bolt, flange deep recess
Loading…
↗
13
6EM8194200
Cover
Loading…
↗
14
9016905M00
Screw truss head tapping
Loading…
↗
15
9046513M18
Clamp
Loading…
↗
16
9046514M66
Clamp
Loading…
↗
17
6EM8217000
Fuse box assembly
Loading…
↗
18
63P8215100
Fuse (50a)
Loading…
↗
19
6AW8195A00
Relay assembly
Loading…
↗
20
67F8215100
Fuse
Loading…
↗
21
67F8215110
Fuse
Loading…
↗
22
67F8215140
Fuse (10a)
Loading…
↗
23
68F8284600
Screw, pan head (m5)
Loading…
↗
24
9778050620
Screw, tapping
Loading…
↗
25
6EM8133600
Grommet
Loading…
↗
26
6EM8554400
Case
Loading…
↗
27
68F8217600
Damper
Loading…
↗
28
67F2812A00
Puller, fuse
Loading…
↗
30
6EM8191900
Graphic, regulator
Loading…
↗
