F130AET (2025)
ELECTRICAL 2

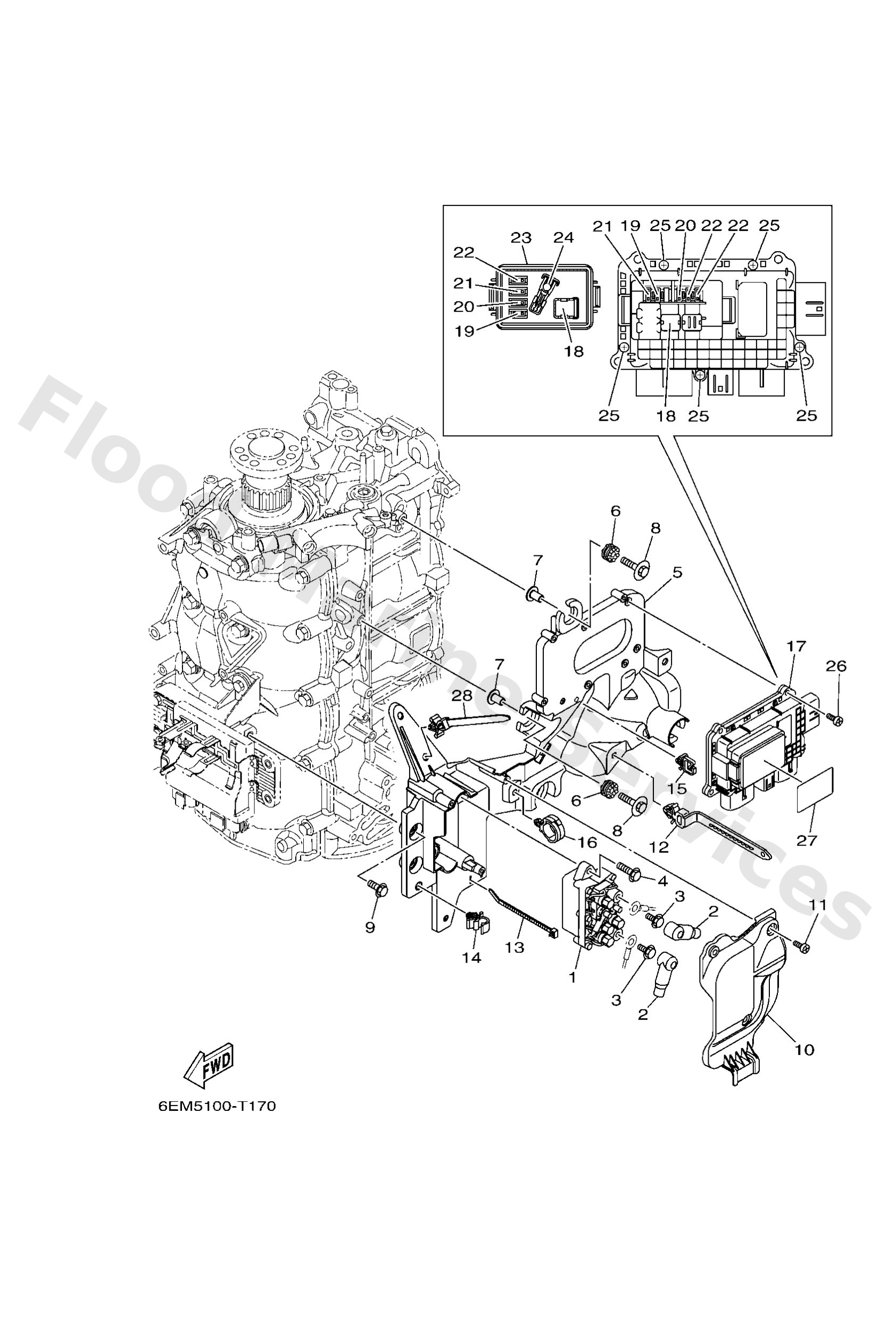

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
63PW819500
Relay assembly
Loading…
↗
2
6828211901
Cover, lead wire
Loading…
↗
3
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
4
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
5
6EK8195210
Holder, relay
Loading…
↗
6
60V8556400
Grommet
Loading…
↗
7
9038706176
Collar
Loading…
↗
8
9011906328
Bolt, With Washer
Loading…
↗
9
95D9506016
Bolt, flange deep recess
Loading…
↗
10
6EK8194210
Cover
Loading…
↗
11
9016905M00
Screw truss head tapping
Loading…
↗
12
9046513M76
Clamp
Loading…
↗
13
9046511M52
Clamp(6e7)
Loading…
↗
14
9046410M32
Clamp(6m7)
Loading…
↗
15
9046408004
Clamp
Loading…
↗
16
9046412183
Clamp(jn2)
Loading…
↗
17
6EM8217012
Fuse box assembly
Loading…
↗
18
6FP8215101
Fuse
Loading…
↗
19
6CB8215100
Fuse (10a)
Loading…
↗
20
6CB8215110
Fuse (15a)
Loading…
↗
21
6CB8215120
Fuse (20a)
Loading…
↗
22
6CB8215130
Fuse (30a)
Loading…
↗
23
6CB8554410
Cover
Loading…
↗
24
6CB2812A00
Puller, fuse
Loading…
↗
25
6P28211300
Screw (m3)
Loading…
↗
26
9778050620
Screw, tapping
Loading…
↗
27
6EM8191911
Graphic, regulator
Loading…
↗
28
9046512M56
Clamp(62t)
Loading…
↗
