F150FET (2023)
ELECTRICAL 2

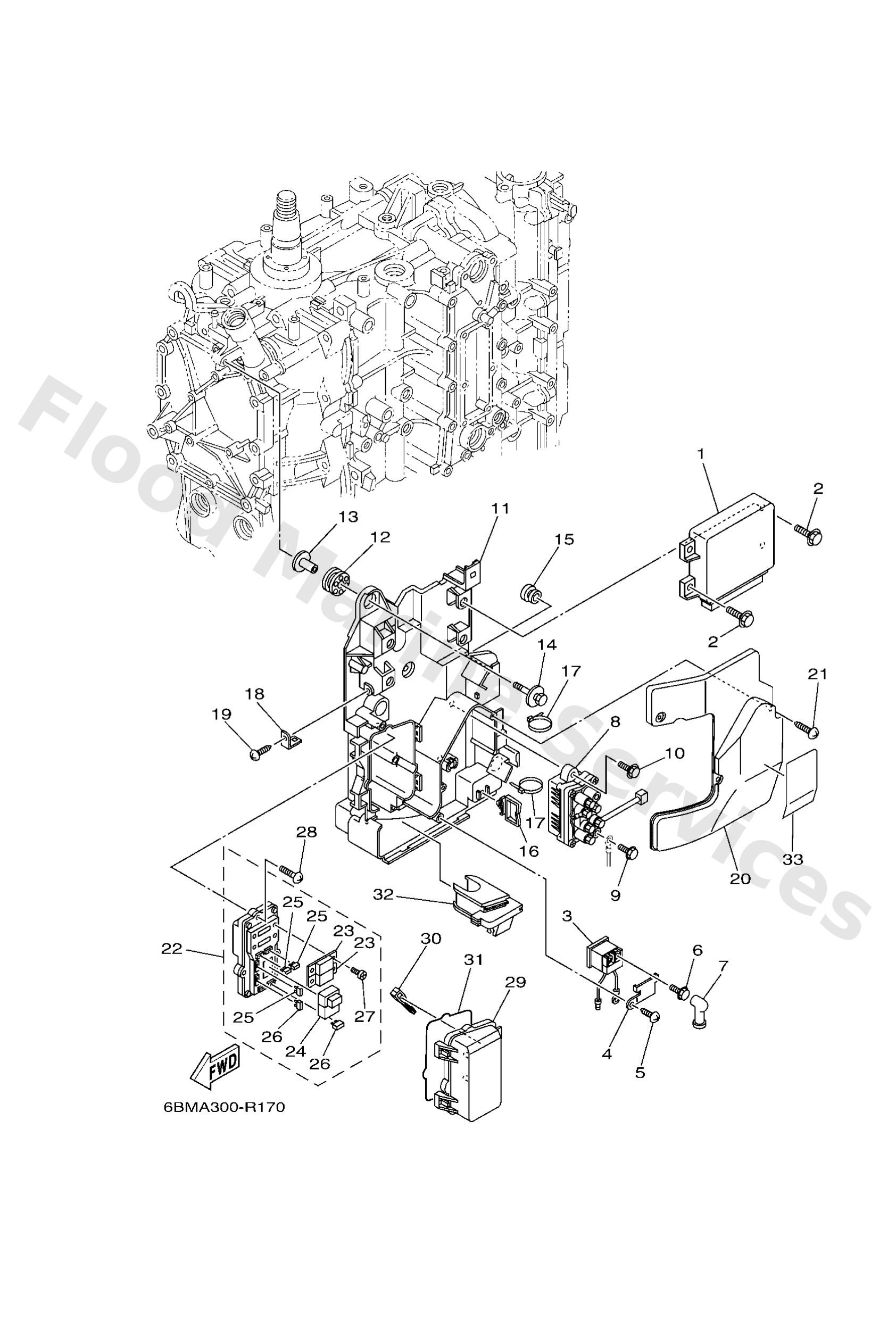

Diagram: ELECTRICAL 2
Parts List
Reference
Description
Price
1
6BM8591A05
Engine control unit assembly
Loading…
↗
2
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
3
68V8194A00
Relay
Loading…
↗
4
68V8195300
Stay, relay
Loading…
↗
5
9778060620
Screw, tapping(6k8)
Loading…
↗
6
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
7
6G58211900
Cover, lead wire
Loading…
↗
8
63P8195000
Relay assembly
Loading…
↗
10
9751306520
Bolt, with washer(61b)
Loading…
↗
11
63P8194801
Bracket
Loading…
↗
12
68F8551601
Spacer
Loading…
↗
13
9038706176
Collar
Loading…
↗
14
68F8511900
Bolt
Loading…
↗
15
9048010627
Grommet
Loading…
↗
16
9046423199
Clamp(4hm)
Loading…
↗
17
9046513M18
Clamp
Loading…
↗
18
68V8554801
Holder
Loading…
↗
20
63P8194200
Cover
Loading…
↗
21
9016905M00
Screw truss head tapping
Loading…
↗
22
63P8217002
Fuse box assembly
Loading…
↗
23
63P8215100
Fuse (50a)
Loading…
↗
24
6AW8195A00
Relay assembly
Loading…
↗
25
67F8215100
Fuse
Loading…
↗
26
67F8215110
Fuse
Loading…
↗
27
68F8284600
Screw, pan head (m5)
Loading…
↗
28
9778050620
Screw, tapping
Loading…
↗
29
60V8554400
Case
Loading…
↗
30
67F2812A00
Puller, fuse
Loading…
↗
31
68F8217600
Damper
Loading…
↗
32
63P8133601
Grommet
Loading…
↗
33
63P8191900
Graphic, regulator
Loading…
↗
